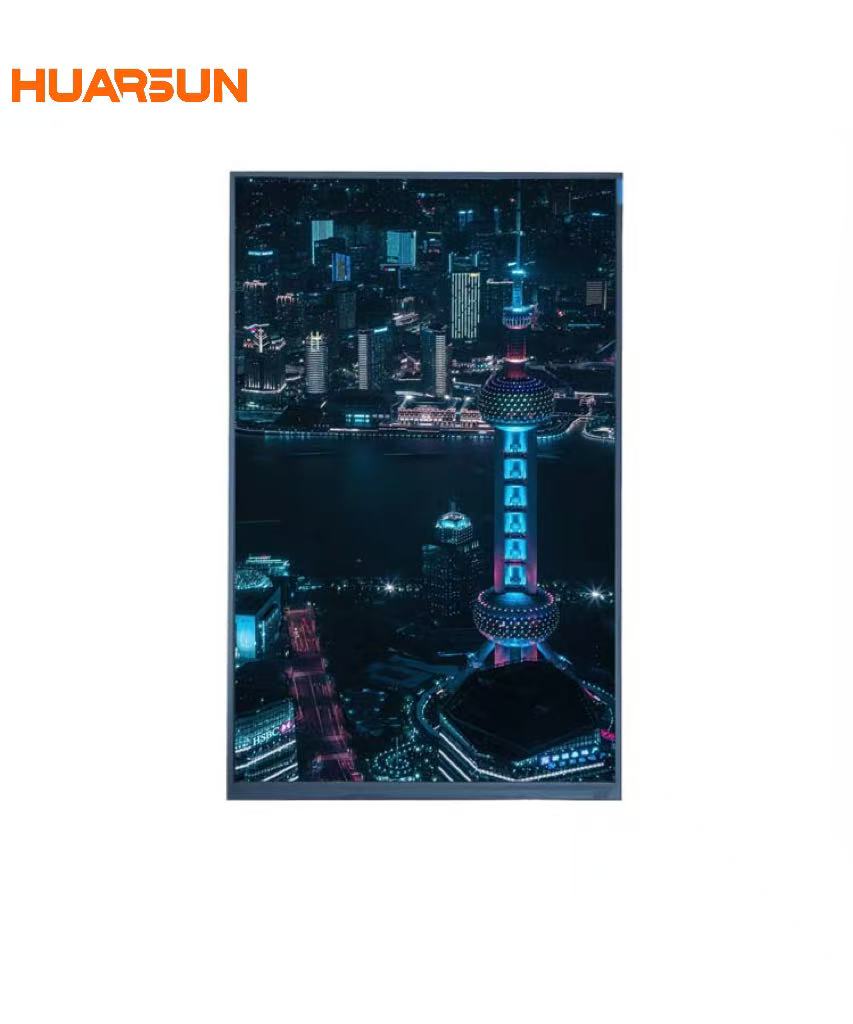

10.1 Inch TFT INNX-IPS 16.7Color Tranmissive Application for Pad Series
10.1 Inch TFT INNX-IPS 16.7Color Tranmissive Application for Pad Series

10.1 Inch TFT INNX-IPS 16.7Color Tranmissive Application for Pad Series

HEM-10.1 inch TFT Transmissive Module 1.Display Type: 10.1''TFT INNX-IPS,16.7Color, Transmissive; 2.Resolution: 800RGB*1280; 3.Driver IC: JD9365A 4.Viewing Angle: ALL O'CLOCK 5.Interface Types: MIPI 6.Connector: BL115H-40RL-TAGF/FP0512/040G0GL
1.Display Type: 10.1''TFT INNX-IPS,16.7Color, Transmissive;
2.Resolution: 800RGB*1280;
3.Driver IC: JD9365A
4.Viewing Angle: ALL O'CLOCK
5.Interface Types: MIPI
6.Connector: BL115H-40RL-TAGF/FP0512/040G0GL(替代)
7.Luminance: 250min cd/m2300typ cd/m2

Product Details


HEM-10.1 inch TFT Transmissive Module
LCD Type 10.1''TFT INNX-IPS,16.7Color,Tranmissive
LCD Size 10.1inch
Viewing Direction ALL O`CLOCK
Resolution 800RGB*1280
Driver IC GH8555BL
Interface Type MIPI
Conner BL115H-40RL-TAGF/FP0512/040G0GL
Luminance 250(MIN),300(TYP)


The 10.1'' TFT INNX-IPS display is a top-of-the-line, high-quality display that is specifically designed for use in a pad application. This display boasts a stunning 16.7 million color palette, which ensures that all images and videos are displayed in the most accurate and vibrant way possible. The Transmissive nature of the display ensures that the light emitted from the backlight passes through the liquid crystal layer, producing clear and vivid colors.

With a resolution of 800RGB*1280, this display is able to deliver clear, crisp images and videos with incredible detail and clarity. This makes it perfect for use in a pad, where the user is likely to be viewing a lot of high-resolution content such as videos and images.

The JD9365A driver IC ensures that the display is able to perform at its very best, delivering the highest quality images and videos with incredible clarity and sharpness. With a viewing angle of ALL O'CLOCK, this display can be viewed from any angle without any loss of quality or color distortion.

The display's MIPI interface ensures that it is compatible with a wide range of devices, making it incredibly versatile and flexible. The BL115H-40RL-TAGF/FP0512/040G0GL connector further enhances the display's versatility, making it easy to connect to a wide range of devices and interfaces.

Overall, the 10.1'' TFT INNX-IPS display is the perfect choice for any pad application. With its stunning color palette, high resolution, and advanced driver IC, it delivers the highest quality images and videos with incredible clarity and sharpness. Whether you're watching videos, browsing photos, or playing games, this display is sure to provide an immersive and engaging experience like no other.



What is TFT display module?

TFT displays module are liquid-crystal display panel with thin-film transistor technology, bonding with IC driver, backlight unit, and flex cable, sometimes assemble control board with difference interface. TFT display is active display with high contrast than monochrome lcd, The TFT display technology could offers full RGB display in wide range display colors, high display resolution. We could get rich colors, detailed images, clear and bright graphics display from a tft lcd module.

HEM provide wide range small sizes tft lcd display module. Our small tft lcd sizes ( diagonal size of tft active area) have 0.96” tft lcd, 1.05” tft lcd, 1.09” tft lcd, 1.14”tft lcd, 1.28” tft lcd display module, 1.32” tft lcd, 1.44” tft lcd module, 1.47” tft display module, 1.69” tft lcd, 1.72” tft display, 1.91inch tft, 2.0” tft lcd. 2.4” tft lcd module, 2.8”inch tft, 3.5” tft lcd, 4.3” tft lcd display module, 5 inch tft, 7” tft display module. Our wide range standard tft lcd module could meet the most of application for Wearable, Smart home, industrial, medical. Such as wearable watch, bracelet, videophone, coffee machine, medical equipment, POS system, kitchen display, cooking machine, IOT, and etc.

HEM tft lcd module including standard tft-lcd modules, wide viewing angle IPS tft lcd, and transflective tft lcd, reflective tft, Wide temperature tft lcd, round type tft lcd, bar type tft lcd, Resistive touch panel and Capacitive touch screen (PCAP) with tft lcd.

Our tft lcd module have variety interface including MCU, RGB, TTL, LVDS, MIPI, serial SPI, I2C interface. The tft lcd display resolution from such as 80x160 pixels, 240X240 pixels, 320X380 pixels, tft lcd display module, and high resolution such 720 X 1280 1024X600 resolution.



Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.


Product Application


The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer


The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.


lcd screen application



Manufacturing Capacity


We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.



Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system



MES Quality Process Flowchart


quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.



The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Shenzhen Operation Center


Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.


Looking ahead


Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.





1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 1.64 inch sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 1.64 inch AMOLED sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production


Related Suggestion

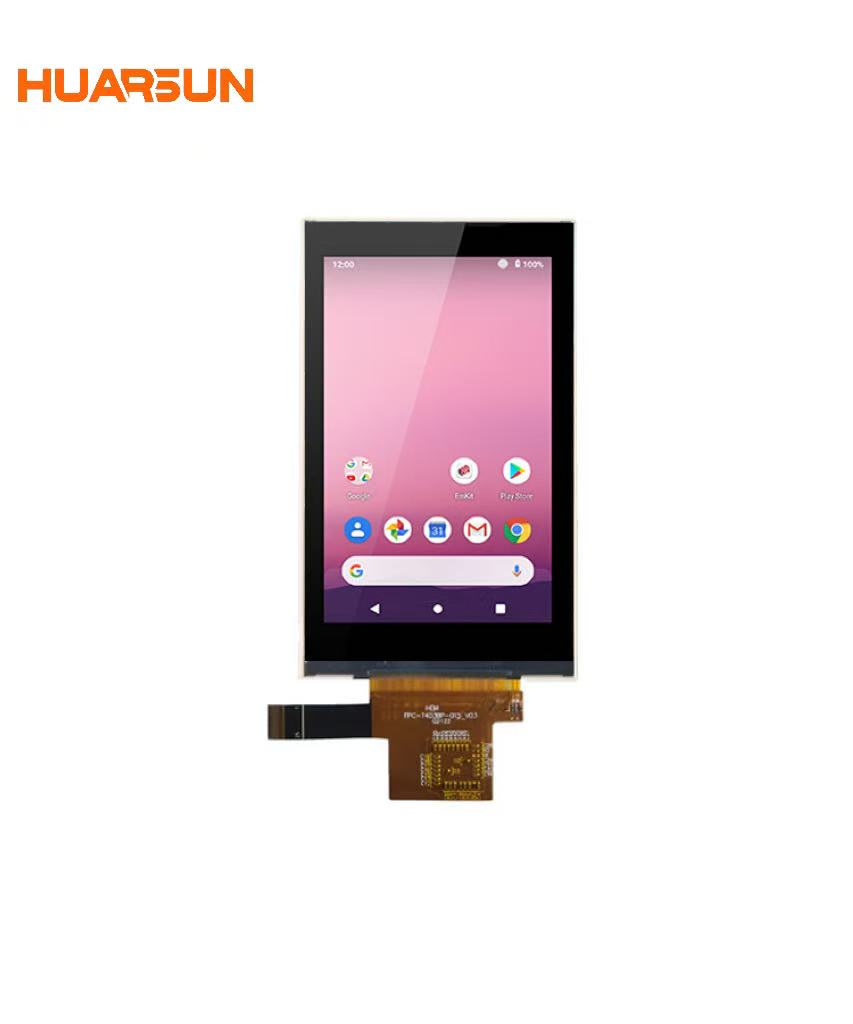

4.3 Inch TFT 16.7M IPS 480*800 Transmissive Module LCD Display

LCD Type:16.7M,a-SI,TFT TRANSMISSVIE,NORMAL BLACK Diagonal length:4.3 inch Viewing Direction:ALL O`CLOCK Dot Arrangement:480*800 Dot Module Size:61.2*103.0*1.8 mm Active area:56.16*93.60 mm Pixel Size:0.117*0.117 mm Backlight Type:LED(white 8S LEDS

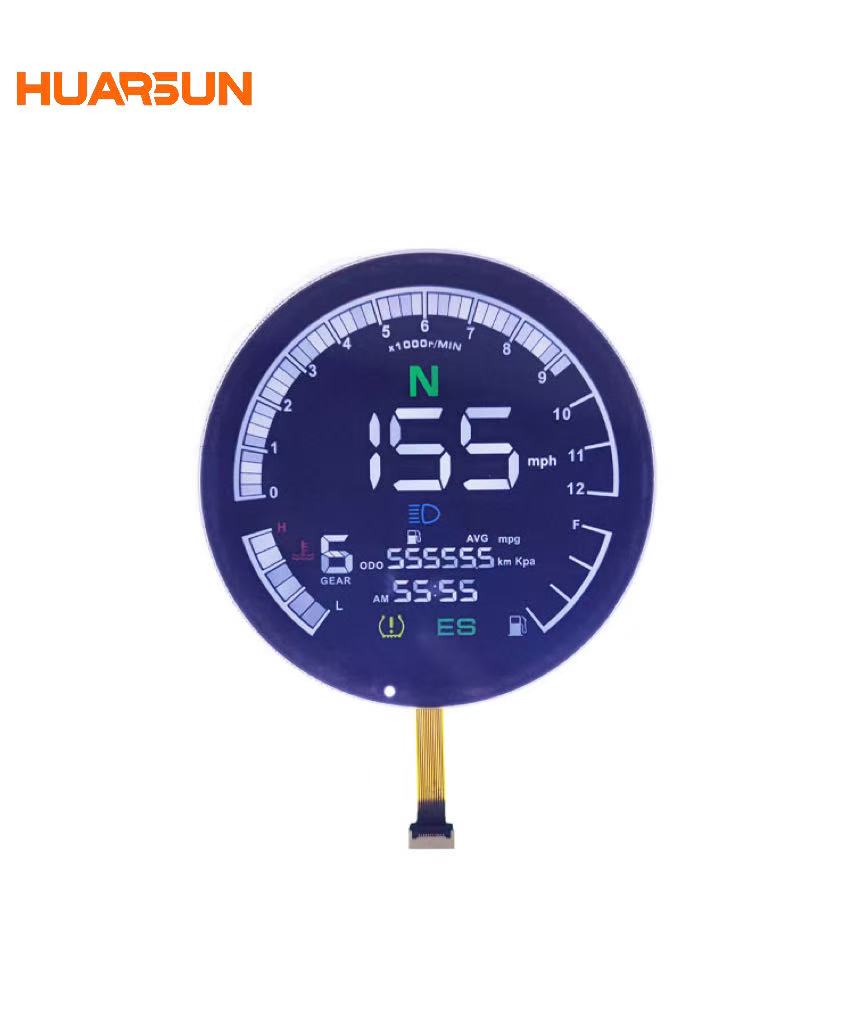

Customized Monochrome LCD Display Module ST7075 VA Round LCD Screen

Display Type:VA/NEGATIVE Operating Voltage:VDD:5.0V,Vlcd:5.0V Operating Temperature:-30℃~80℃ Storage Temperature:-40℃~90℃ Drive Mode:1/4D,1/3B Viewing Direction:6:00 Polarizer Type:TRANSMISSIVE Connector:COG/ST7075

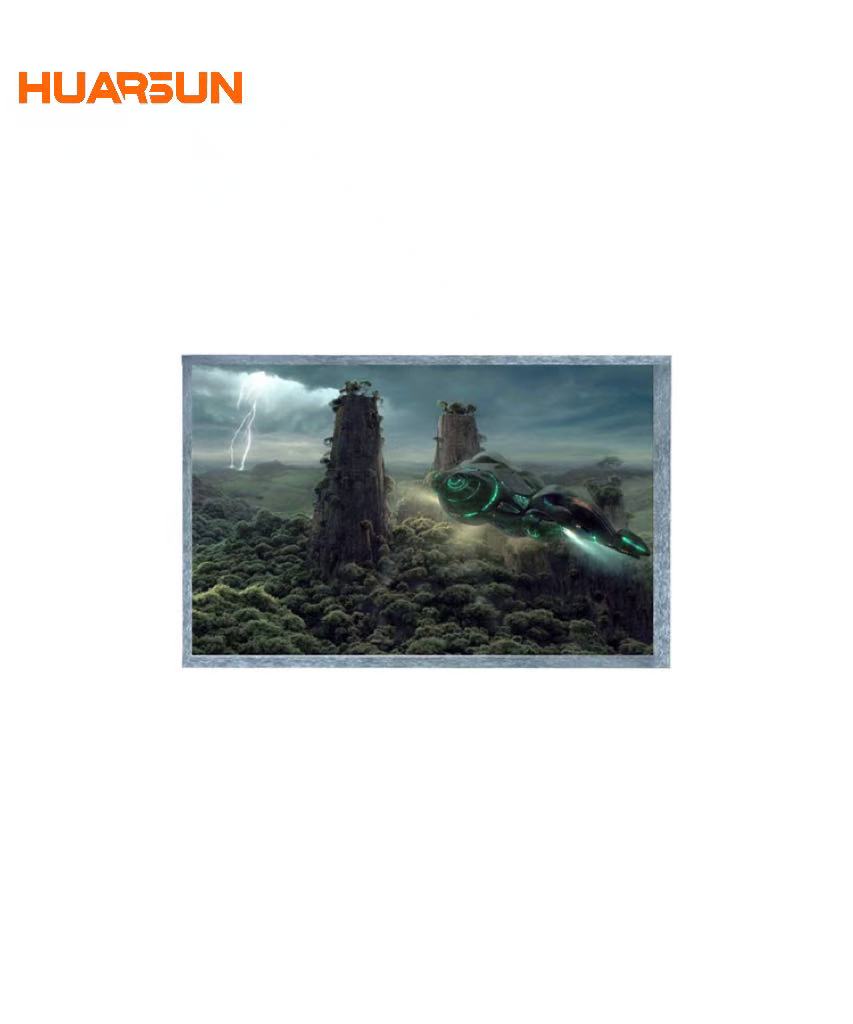

7 Inch TFT LCD Monitor 1024*600 TFT Display Module

HEM-7.0 inch TFT Transmissive Module LCD Size:7.0inch Resolution:1024*600 Luminance:250(MIN),300(TYP) Interface Type:RGB Color:16.7M Connection Mode:Plugging in Driver IC:GH8555BL

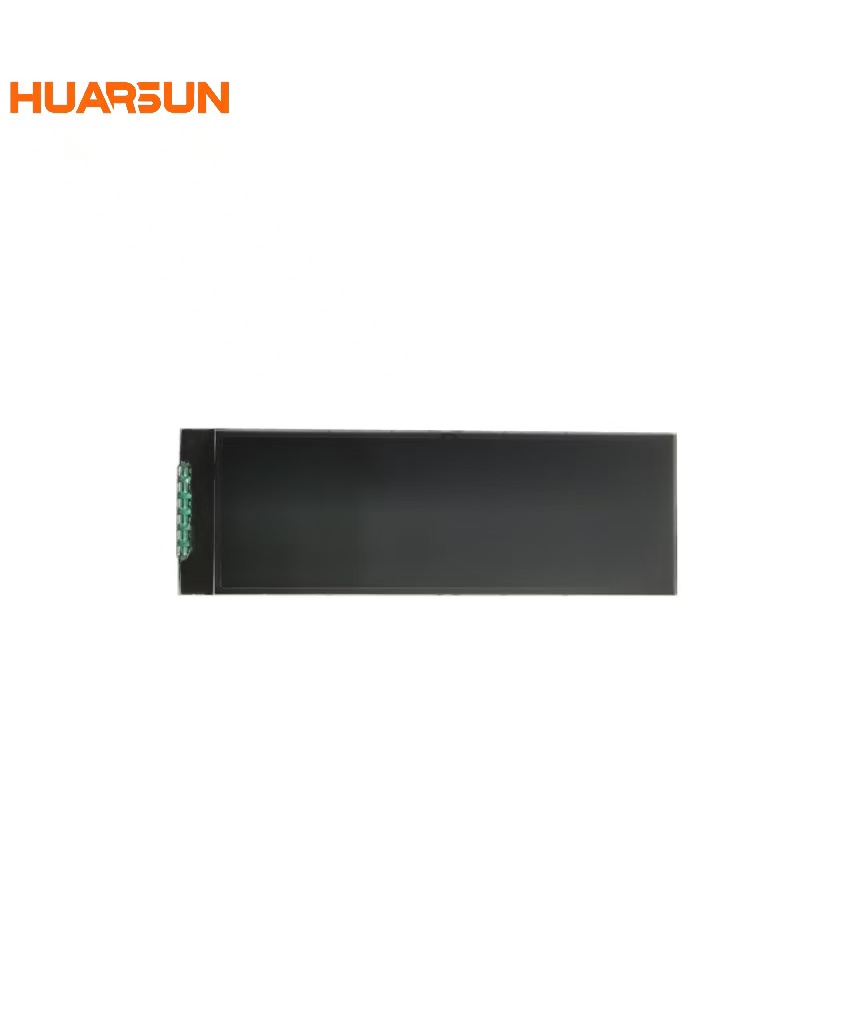

VA Monochrome Rectangle LCD Display Segment Code Screen Applied to Home Appliances
