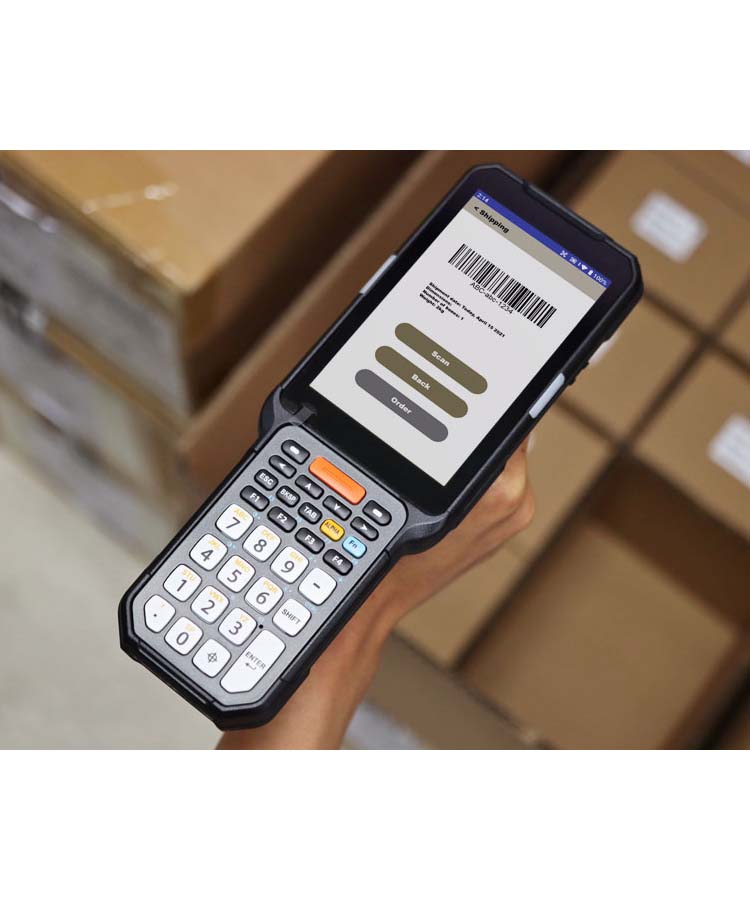

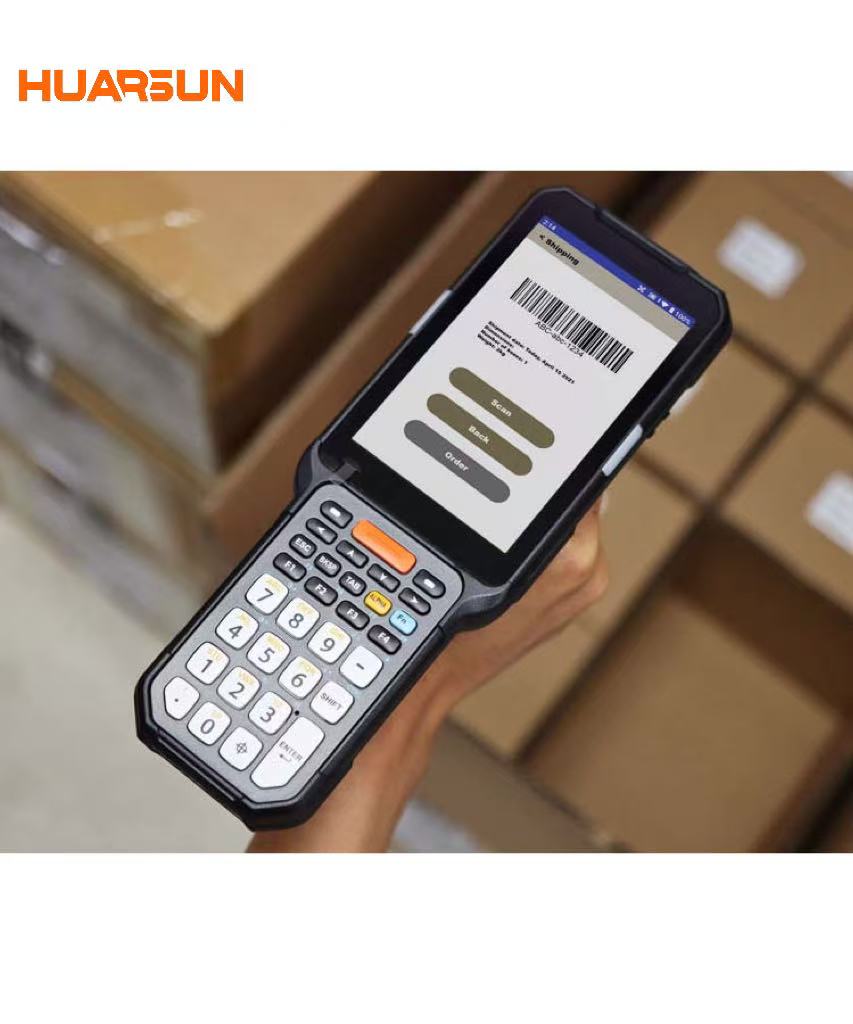

4.3 Inch TFT 16.7M IPS 480*800 Transmissive Module LCD Display
4.3 Inch TFT 16.7M IPS 480*800 Transmissive Module LCD Display
4.3 Inch TFT 16.7M IPS 480*800 Transmissive Module LCD Display

4.3 Inch TFT 16.7M IPS 480*800 Transmissive Module LCD Display

LCD Type:16.7M,a-SI,TFT TRANSMISSVIE,NORMAL BLACK Diagonal length:4.3 inch Viewing Direction:ALL O`CLOCK Dot Arrangement:480*800 Dot Module Size:61.2*103.0*1.8 mm Active area:56.16*93.60 mm Pixel Size:0.117*0.117 mm Backlight Type:LED(white 8S LEDS
Diagonal length:4.3 inch
Viewing Direction:ALL O`CLOCK
Dot Arrangement:480*800 Dot
Module Size:61.2*103.0*1.8 mm
Active area:56.16*93.60 mm
Pixel Size:0.117*0.117 mm
Backlight Type:LED(white 8S LEDS)
Drive IC:ST7701S
Interface Type:MIPI 2LANE

Product Details


4.3 Inch TFT  IPS 480*800 Transmissive Module LCD Display

LCD Size 4.3inch
Panel Type IPS
Resolution 480*800
Module Size 61.2*103*1.8
Active Area 56.16*93.6
Driver IC ST7701S
Interface Type MIPI 2LANE
Connection Mode Plugging in



What is TFT display module?

TFT displays module are liquid-crystal display panel with thin-film transistor technology, bonding with IC driver, backlight unit, and flex cable, sometimes assemble control board with difference interface. TFT display is active display with high contrast than monochrome lcd, The TFT display technology could offers full RGB display in wide range display colors, high display resolution. We could get rich colors, detailed images, clear and bright graphics display from a tft lcd module.

HEM provide wide range small sizes tft lcd display module. Our small tft lcd sizes ( diagonal size of tft active area) have 0.96” tft lcd, 1.05” tft lcd, 1.09” tft lcd, 1.14”tft lcd, 1.28” tft lcd display module, 1.32” tft lcd, 1.44” tft lcd module, 1.47” tft display module, 1.69” tft lcd, 1.72” tft display, 1.91inch tft, 2.0” tft lcd. 2.4” tft lcd module, 2.8”inch tft, 3.5” tft lcd, 4.3” tft lcd display module, 5 inch tft, 7” tft display module. Our wide range standard tft lcd module could meet the most of application for Wearable, Smart home, industrial, medical. Such as wearable watch, bracelet, videophone, coffee machine, medical equipment, POS system, kitchen display, cooking machine, IOT, and etc.

HEM tft lcd module including standard tft-lcd modules, wide viewing angle IPS tft lcd, and transflective tft lcd, reflective tft, Wide temperature tft lcd, round type tft lcd, bar type tft lcd, Resistive touch panel and Capacitive touch screen (PCAP) with tft lcd.

Our tft lcd module have variety interface including MCU, RGB, TTL, LVDS, MIPI, serial SPI, I2C interface. The tft lcd display resolution from such as 80x160 pixels, 240X240 pixels, 320X380 pixels, tft lcd display module, and high resolution such 720 X 1280 1024X600 resolution.


The 4.3-inch TFT LCD display is a high-quality visual display module specially designed for smart home applications. The display module uses Thin Film Transistor (TFT) active matrix technology to provide high levels of brightness and contrast. Capable of displaying up to 16.7 million colors, the display is ideal for displaying photos, videos, and other visual content.

The display module also features In-Plane Switching (IPS) technology for wide viewing angles and excellent color reproduction. This makes it ideal for applications where multiple people may need to view the display from different angles. Additionally, the display module is transmissive, which means it generates its own backlight, providing a clearly visible image even in low-light conditions.

The display has a resolution of 480 x 800 pixels, offering a good balance between image clarity and size. The module is designed to be small and light, and can be easily integrated into various smart home devices. The display can be easily controlled using various communication interfaces including SPI and RGB.

Overall, the 4.3-inch TFT LCD display is an excellent choice for smart home applications that require a high-quality visual display. It combines TFT, IPS and transmissive technologies to deliver high levels of brightness, contrast and color reproduction, while its compact size and lightweight design make it easy to integrate into various devices.


Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.


Product Application


The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer


The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.


lcd screen application



Manufacturing Capacity


We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.



Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system



MES Quality Process Flowchart


quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.



The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Shenzhen Operation Center


Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.


Looking ahead


Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.





1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 1.44 inch TFT sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 1.44 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
