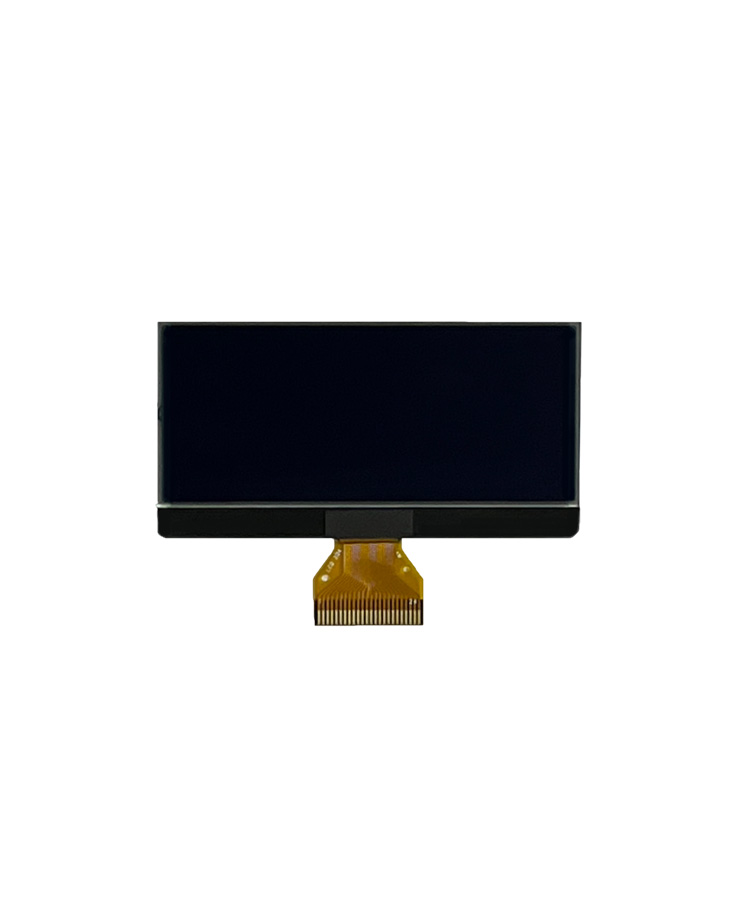

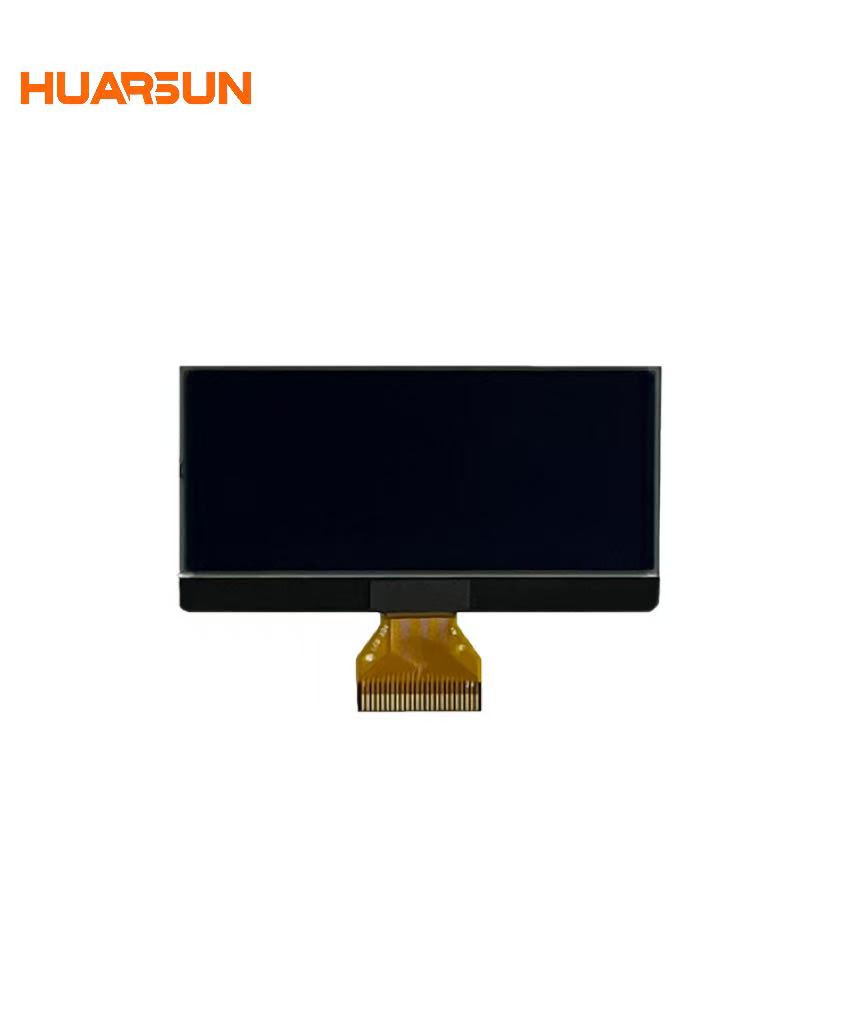

HEM Customized Mono LCD Display Modules With Onboard Instrument
HEM Customized Mono LCD Display Modules With Onboard Instrument
HEM Customized Mono LCD Display Modules With Onboard Instrument

HEM Customized Mono LCD Display Modules With Onboard Instrument

Display Type:ESTN/NEGATIVE Operating Voltage:VDD=5.0V,VOP=12.16V Operating Temperature:-30℃~80℃ Storage Temperature:-40℃~85℃ Drive Mode:1/65D,1/9B Viewing Direction:9:00 Polarizer Type:TRANSMISSIVE Connector:S1D15705/COG
Display Type:ESTN/NEGATIVE
Operating Voltage:VDD=5.0V,VOP=12.16V
Operating Temperature:-30℃~80℃
Storage Temperature:-40℃~85℃
Drive Mode:1/65D,1/9B
Viewing Direction:9:00
Polarizer Type:TRANSMISSIVE
Connector:S1D15705/COG

Email:cenni@hemlcd.com

Product Details



HEM Customized Mono LCD Display Modules With Onboard Instrument

Display Type ESTN/NEGATIVE
Operating Voltage VDD=5.0V,VOP=12.16V
Operating Temperature -30℃~80℃
Storage Temperature -40℃~85℃
Drive Mode 1/65D,1/9B
Viewing Direction 9:00
Polarizer Type TRANSMISSIVE
Connector S1D15705/COG



The mono LCD display with the following parameters offers a reliable and efficient visual solution for various applications. With its ESTN/NEGATIVE display type, the module provides clear and legible content in a monochrome format. This display excels in performance, making it suitable for a wide range of devices and environments.

Operating at a voltage of VDD=5.0V and VOP=12.16V, the display ensures stable and consistent power supply. This operating voltage allows the module to function optimally, delivering crisp and sharp visuals without compromising on energy efficiency. Users can rely on the display to provide a reliable performance while consuming minimal power.

Designed to withstand extreme temperatures, the mono LCD display operates in a wide temperature range of -30℃ to 80℃. This feature makes it suitable for applications where environmental conditions may vary significantly. Whether in cold or hot environments, the display remains reliable and continues to deliver exceptional visual quality.

For storage purposes, the display can handle temperatures ranging from -40℃ to 85℃. This wide storage temperature range ensures that the module remains intact and retains its functionality when not in use. Users can store and transport devices equipped with this display without concerns about temperature-induced damage.

The drive mode of the display is 1/65D and 1/9B, which ensures efficient operation and smooth transitions between screens. This drive mode optimizes power consumption and enhances the module's overall performance. Users can expect seamless visual experiences and responsive interactions while using devices featuring this display.

The viewing direction of the mono LCD display is set at 9:00, allowing users to comfortably view the content displayed on the screen. This viewing direction is optimized for ease of use and ensures that the displayed information is easily readable from a typical user's perspective.

With a transmissive polarizer type, the display offers excellent light transmission, resulting in clear and legible visuals. This polarizer type enhances the contrast and visibility of the displayed content, making it suitable for applications where readability is crucial.

In conclusion, the mono LCD display with ESTN/NEGATIVE display type is a reliable and efficient visual solution for various applications. With its wide operating temperature range, efficient drive mode, and transmissive polarizer type, this display ensures clear and legible content in monochrome format. Whether in extreme temperatures or varying environmental conditions, users can rely on this display to provide exceptional visual performance and readability. Its versatile nature makes it suitable for a wide range of devices, from industrial instruments to consumer electronics, enhancing the overall user experience.






What is a mono lcd?

A mono LCD, short for monochrome LCD, is a type of liquid crystal display that can only display one color. Typically, this color is either black, white, or various shades of gray. Monochrome LCDs are commonly used in devices that do not require color displays, such as digital watches, calculators, and some industrial equipment.

Mono LCDs work by using liquid crystals that change their orientation in response to an applied electric field. The orientation of the crystals affects the amount of light that is able to pass through the display, creating the images and text that appear on the screen. Because monochrome LCDs only need to display one color, they are simpler and less expensive to manufacture than color LCDs.

Despite their limited color capabilities, monochrome LCDs have several advantages over other types of displays. They typically consume less power than color displays, which makes them well-suited for battery-powered devices. They are also generally more durable and have longer lifespans than other types of displays, making them a popular choice for industrial and military applications where reliability is crucial.

In summary, a mono LCD is a type of display that can only display one color, typically black, white, or shades of gray. They are commonly used in devices that do not require color displays and have several advantages over other types of displays, including lower power consumption and increased durability.






Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.




Product Application



The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer



The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.



lcd screen application






Manufacturing Capacity



We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.






Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system






MES Quality Process Flowchart



quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.






The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead



Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ



1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 164*70 mono sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 164*70 mono sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
