AM1.952 Inch Oled Module 410*502 MIPI/QSPI 16.7M On Cell Touch Sensor
AM1.952 Inch Oled Module 410*502 MIPI/QSPI 16.7M On Cell Touch Sensor
AM1.952 Inch Oled Module 410*502 MIPI/QSPI 16.7M On Cell Touch Sensor

AM1.952 Inch Oled Module 410*502 MIPI/QSPI 16.7M On Cell Touch Sensor

Display Type:AMOLED Diagonal Size:1.952 Dot Arrangement:410*502 Active Area:31.37*38.4 Pixel Pitch:76.5*76.5 Driver IC:SH8601Z1 Interface Type:MIPI/QSPI Color:16.7M Connector:COF
HEM-1.952 Inch AMOLED Display
Dot Arrangement:410*502
Driver IC:SH8601Z1
Interface Type:MIPI/QSPI
Color:16.7M

Email:cenni@hemlcd.com

Product Details




HEM-Amoled 1.952 Inch Oled Module 410*502 MIPI/QSPI 16.7M On Cell Touch Sensor

Display Type AMOLED
Diagonal Size 1.952
Dot Arrangement 410*502
Active Area 31.37*38.4
Pixel Pitch 76.5*76.5
Driver IC SH8601Z1
Interface Type MIPI/QSPI
Color 16.7M
Connector COF



The 1.952 inch AMOLED display with oncell technology is a high-quality display that offers a combination of high-resolution imaging , faster response and higher contrastThe AM1.952 Inch Module LCD is display module with a resolution of 410x502 , Color of 16.7M and Connection Mode of COF. This module is manufactured by our HEMLCD company, and the AMOLED displays are particularly well-suited for wearable devices because they are energy-efficient, have high contrast and brightness, and can display vivid colors.






What is AMOLED display module?

AMOLED (Active Matrix/Organic Light Emitting Diode) is an active matrix organic light emitting diode panel. Compared with traditional LCD panels in terms of display performance, AMOLED has faster response speed, higher contrast ratio, and wider viewing angle. These are the places where AMOLED is inherently better than TFT LCD. In addition, AMOLED has the characteristics of self-illumination and does not need to use backlight. board, so it can be made thinner and lighter than TFT, and saves power; there is another more important feature, AMOLED that does not need a backlight board can save the cost of the backlight module that accounts for 3~4 of the TFT LCD.AMOLED is the best display technology to replace TFT-LCD: OLED (Organic Light Emitting Diode) adopts a new type of flat display technology that stimulates luminescent materials to actively emit light by current to obtain display effects; among them, PMOLED technology with relatively simple manufacturing process is relatively mature, but It only has significant advantages in small-size applications; based on its own advantages in manufacturing process and structure, AMOLED has more obvious advantages than TFT-LCD, and is suitable for medium and large-size display fields, and is the best display technology to replace TFT-LCD , is also the mainstream trend of OLED development.






Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.




Product Application



The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer



The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.



lcd screen application






Manufacturing Capacity



We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.






Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system






MES Quality Process Flowchart



quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.






The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead



Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ



1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 1.952 inch sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 1.952 inch AMOLED sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production



Related Suggestion

AM1.78 Inch QSPI I2C AMOLED Module LCD Oled Display Manufacturers

1. Display Type: AMOLED 2. Diagonal length:1.78 3. Viewing Direction: ALL 4. Dot arrangement: 368*448 5. Voltage: VCI: 2.7~3.6V(3.3 Type), VDDIO: 1.65~3.3V(1.8 Type) 6. Operating Temperature: -20℃~60℃ 7. Storage Temperature: -30℃~70℃

Custom AM1.78 Inch Full Color AMOLED All Viewing 368*448Dot LCD Display Factory Price

1. Display Type: AMOLED 2. Diagonal length:1.78 3. Viewing Direction: ALL 4. Dot arrangement: 368*448 5. Voltage: VCI: 2.7~3.6V(3.3 Type), VDDIO: 1.65~3.3V(1.8 Type)

TFT1.69 Inch Small Size TFT 240*280 LCD Touch Screen Price

HEM-1.69 inch TFT Transmissive Module Display Type:TFT/Transmissive Size:1.69inch Dot arrangement:240*280 Luminance:250(MIN),280(TYP) Interface Type:MCU8bit Color:262K Connection Mode:B=B Driver IC:JD9851

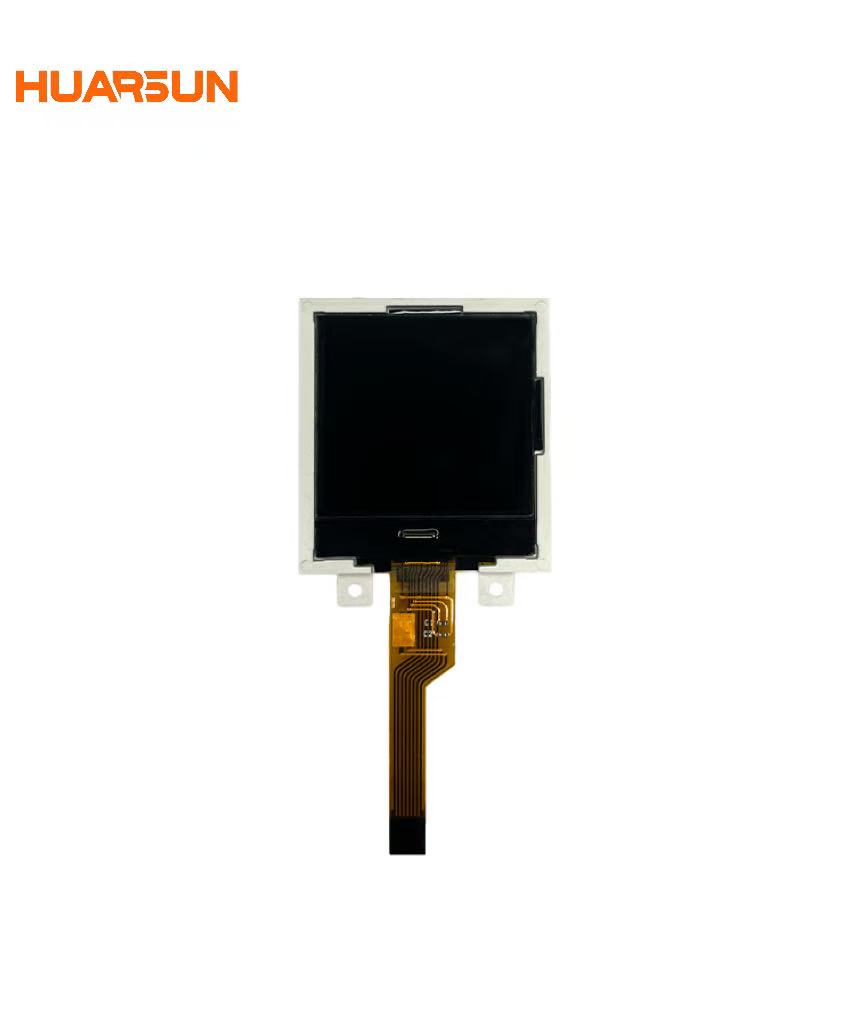

Instrument Display VA COG Custom LCD Module Monochrome Screen for Rangefinder
