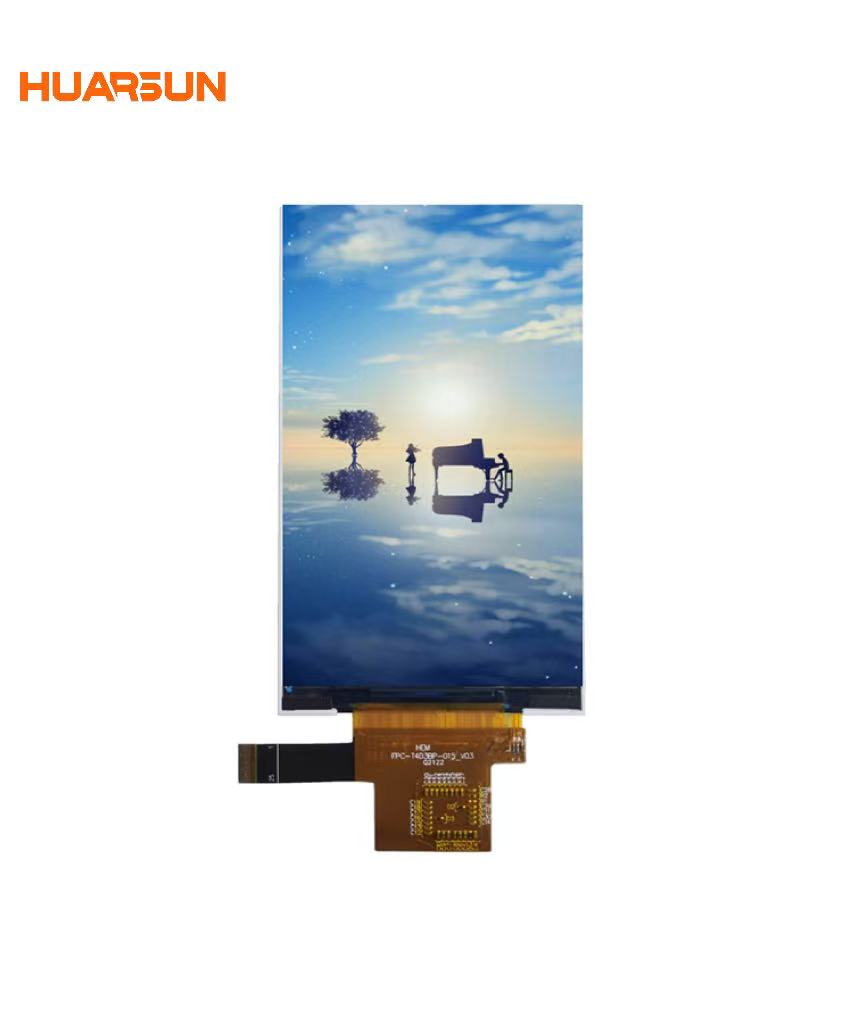

4.3 Inch LCD Display 480*800 LCD Screen TFT Module
4.3 Inch LCD Display 480*800 LCD Screen TFT Module

4.3 Inch LCD Display 480*800 LCD Screen TFT Module

HEM-4.3 inch TFT Transmissive Module LCD Size:4.3inch Resolution:480*800 Luminance:250(MIN),300(TYP) Interface Type:Mipi Dual channel Color:16.7M Connection Mode:ZIF Driver IC:OTM8019A
LCD Size:4.3inch
Resolution:480*800
Luminance:250(MIN),300(TYP)
Interface Type:Mipi Dual channel
Color:16.7M
Connection Mode:ZIF
Driver IC:OTM8019A

Email:cenni@hemlcd.com

Product Details



HEM-4.3 Inch LCD Display 480*800 LCD Screen TFT Module
LCD Size 4.3inch
Resolution 480*800
Luminance 250(MIN),300(TYP)
Interface Type Mipi Dual channel
Color 16.7M
Connection Mode ZIF
Driver IC OTM8019A



Introduction: The advent of TFT (Thin Film Transistor) display technology has revolutionized the way we interact with electronic devices. Among the myriad options available, the 4.3-inch TFT Transmissive Module stands tall as a powerful display solution. With its impressive specifications and versatile functionality, this display offers a gateway to limitless possibilities across various industries.

High-Resolution Visual Delight: At the heart of this display lies its 4.3-inch LCD, boasting a resolution of 480*800. This high pixel density ensures crystal-clear visuals, rendering images and videos with exceptional detail and vibrant colors. Whether it's watching multimedia content, playing games, or browsing the web, users will be immersed in a visual feast that brings content to life.

Enhanced Visual Clarity: With a luminance rating of 250 (MIN) and 300 (TYP), the TFT Transmissive Module guarantees exceptional visibility even in challenging lighting conditions. Brightness is key, and this display truly shines, delivering a well-balanced and luminous viewing experience. Whether indoors or outdoors, users can comfortably engage with the display without straining their eyes.

Seamless Connectivity: The TFT Transmissive Module incorporates an interface type known as Mipi Dual channel, which offers a reliable and efficient connection between the display and the device it is integrated into. This interface ensures smooth and high-speed data transmission, allowing for seamless interaction and responsiveness. Users can enjoy fluid touch response and smooth scrolling, enhancing the overall user experience.

Color Vibrancy and Depth: A wide color gamut of 16.7 million colors enables the TFT Transmissive Module to reproduce images with unparalleled accuracy. From the deepest shades of black to the most vibrant hues, this display brings content to life in a vivid and lifelike manner. Whether displaying images, videos, or graphical user interfaces, every detail will be rendered with utmost precision, captivating users with its richness.

Flexible Connection: The TFT Transmissive Module adopts the ZIF (Zero Insertion Force) connection mode, ensuring secure and hassle-free connectivity during the installation process. This eliminates the risk of misalignment or damage, saving time and effort for manufacturers. The ZIF connection mode also facilitates future maintenance and replacement if needed, making it a reliable and practical choice.

Optimized Performance: Driving the TFT Transmissive Module is the powerful OTM8019A driver IC. This IC ensures smooth and efficient operation, optimizing the display's performance to deliver exceptional image quality and responsiveness. With its advanced features, the driver IC enhances color accuracy, reduces power consumption, and enables seamless integration with various devices.

Conclusion: The 4.3-inch TFT Transmissive Module stands as a testament to the tremendous growth and innovation within the display technology realm. From its high-resolution visuals to its vibrant color reproduction and seamless connectivity, this display represents the pinnacle of immersive user experiences. As it finds applications across industries such as consumer electronics, automotive, medical, and more, the TFT Transmissive Module continues to redefine the boundaries of what displays can achieve, unlocking endless possibilities for the future.






What is TFT display module?

TFT displays module are liquid-crystal display panel with thin-film transistor technology, bonding with IC driver, backlight unit, and flex cable, sometimes assemble control board with difference interface. TFT display is active display with high contrast than monochrome lcd, The TFT display technology could offers full RGB display in wide range display colors, high display resolution. We could get rich colors, detailed images, clear and bright graphics display from a tft lcd module.
HEM provide wide range small sizes tft lcd display module. Our small tft lcd sizes ( diagonal size of tft active area) have 0.96” tft lcd, 1.05” tft lcd, 1.09” tft lcd, 1.14”tft lcd, 1.28” tft lcd display module, 1.32” tft lcd, 1.44” tft lcd module, 1.47” tft display module, 1.69” tft lcd, 1.72” tft display, 1.91inch tft, 2.0” tft lcd. 2.4” tft lcd module, 2.8”inch tft, 3.5” tft lcd, 4.3” tft lcd display module, 5 inch tft, 7” tft display module. Our wide range standard tft lcd module could meet the most of application for Wearable, Smart home, industrial, medical. Such as wearable watch, bracelet, videophone, coffee machine, medical equipment, POS system, kitchen display, cooking machine, IOT, and etc.
HEM TFT lcd display module quality is on industrial standard, our raw materials are chosen on the industrial grade base.

HEM tft lcd module including standard tft-lcd modules, wide viewing angle IPS tft lcd, and transflective tft lcd, reflective tft, Wide temperature tft lcd, round type tft lcd, bar type tft lcd, Resistive touch panel and Capacitive touch screen (PCAP) with tft lcd.
Our tft lcd module have variety interface including MCU, RGB, TTL, LVDS, MIPI, serial SPI, I2C interface. The tft lcd display resolution from such as 80x160 pixels, 240X240 pixels, 320X380 pixels, tft lcd display module, and high resolution such 720 X 1280 1024X600 resolution.






Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.




Product Application



The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer



The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.



lcd screen application






Manufacturing Capacity



We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.






Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system






MES Quality Process Flowchart



quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.






The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead



Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ



1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 4.3 inch TFT sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 4.3 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
