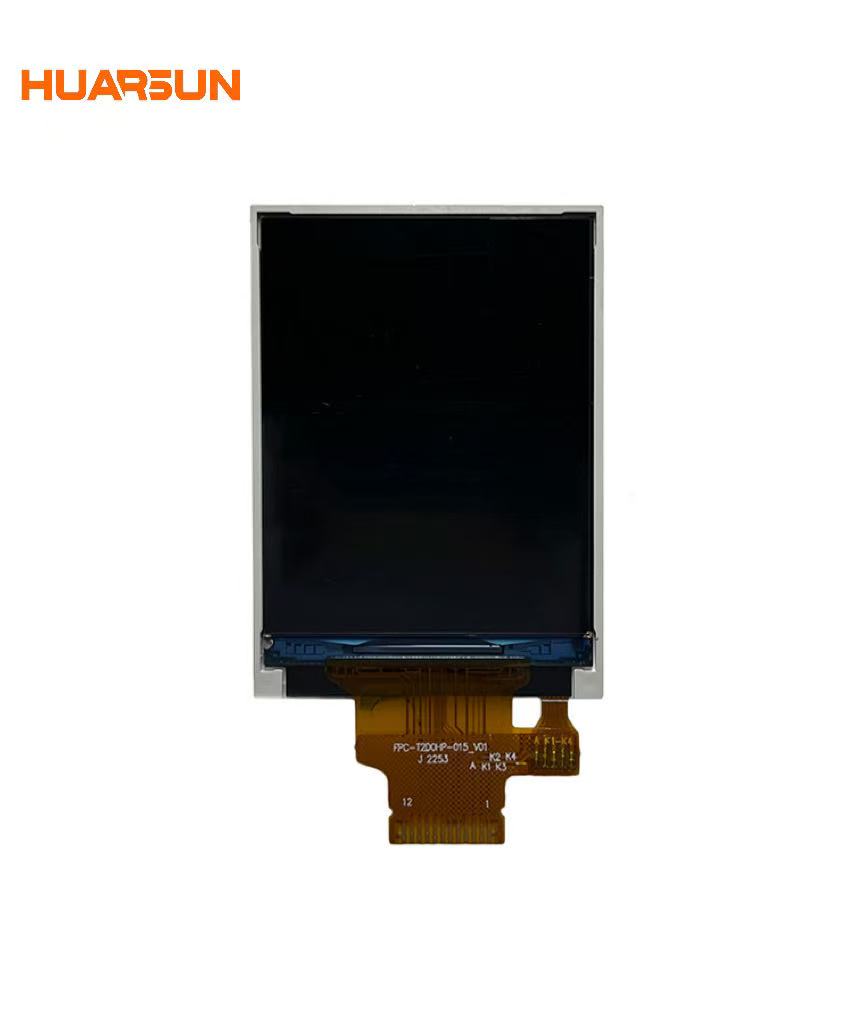

2 Inch IPS 262K Monitor ST7789V3 Custom TFT Displays
2 Inch IPS 262K Monitor ST7789V3 Custom TFT Displays
2 Inch IPS 262K Monitor ST7789V3 Custom TFT Displays

2 Inch IPS 262K Monitor ST7789V3 Custom TFT Displays

Display Type:2.0'' 240*320 IPS,262K Active Area:30.60*40.80 Viewing Direction:ALL Luminance:350(MIN) Interface Type:4SPI Connection Mode:Welding Driver IC:ST7789V3
Display Type:2.0'' 240*320 IPS,262K
Active Area:30.60*40.80
Viewing Direction:ALL
Interface Type:4SPI
Connection Mode:Welding
Driver IC:ST7789V3

Product Details


HEM-2 Inch TFT Transmissive Module LCD Display

Display Type 2.0'' IPS,262K
Dot arrangement 240*320
Module Size 35.70*51.20*2.26
Active Area 30.60*40.80
Viewing Direction ALL
Luminance 350(MIN)
Interface Type 4SPI
Connection Mode Welding
Driver IC ST7789V3
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃


TFT display technology has completely changed the way we consume visual information. Due to its high resolution, low power consumption, and flexibility, it is widely used in various electronic devices from smartphones to digital cameras. This article will focus on introducing a 2.0 inch TFT display screen using IPS technology, with a resolution of 240 * 320 and a color depth of 262K. The 2.0 inch TFT display using IPS technology is a high-quality display that provides accurate color reproduction, wide viewing angle, and fast response time. IPS (in plane switching) technology provides better color accuracy and wider viewing angle than TN (twisted nematic) displays. TFT (thin film transistor) technology ensures fast response time and lower power consumption.
The resolution of the monitor is 240 * 320 pixels, suitable for displaying detailed images and text. The color depth of 262K provides a wide range of colors and tones, which is very suitable for displaying images and videos.The effective area of the monitor is 30.60 * 40.8 millimeters, which is large enough to display information without affecting the device size. The large active area makes it easy to display multiple lines of text or images simultaneously.
The minimum brightness of the display is 350cd/m ², It is bright enough in most indoor environments. Brightness can be adjusted based on ambient light to improve user experience and save battery life.
The display interface type is 4SPI, which is a serial interface that provides high-speed data transmission rate. This interface is compatible with various microcontrollers and allows for easy integration of displays into different devices.
The connection method of the display is welding, which is a reliable and safe way to connect the display to the PCB. This method ensures that the monitor remains firmly connected to the device and reduces the risk of damage due to vibration or impact.
The driver IC of the display is ST7789V3, which is a popular integrated circuit for driving small TFT displays. It provides excellent image quality, color reproduction, and compatibility with various microcontrollers.



What is TFT display module?

TFT displays module are liquid-crystal display panel with thin-film transistor technology, bonding with IC driver, backlight unit, and flex cable, sometimes assemble control board with difference interface. TFT display is active display with high contrast than monochrome lcd, The TFT display technology could offers full RGB display in wide range display colors, high display resolution. We could get rich colors, detailed images, clear and bright graphics display from a tft lcd module.
HEM provide wide range small sizes tft lcd display module. Our small tft lcd sizes ( diagonal size of tft active area) have 0.96” tft lcd, 1.05” tft lcd, 1.09” tft lcd, 1.14”tft lcd, 1.28” tft lcd display module, 1.32” tft lcd, 1.44” tft lcd module, 1.47” tft display module, 1.69” tft lcd, 1.72” tft display, 1.91inch tft, 2.0” tft lcd. 2.4” tft lcd module, 2.8”inch tft, 3.5” tft lcd, 4.3” tft lcd display module, 5 inch tft, 7” tft display module. Our wide range standard tft lcd module could meet the most of application for Wearable, Smart home, industrial, medical. Such as wearable watch, bracelet, videophone, coffee machine, medical equipment, POS system, kitchen display, cooking machine, IOT, and etc.
HEM TFT lcd display module quality is on industrial standard, our raw materials are chosen on the industrial grade base.

HEM tft lcd module including standard tft-lcd modules, wide viewing angle IPS tft lcd, and transflective tft lcd, reflective tft, Wide temperature tft lcd, round type tft lcd, bar type tft lcd, Resistive touch panel and Capacitive touch screen (PCAP) with tft lcd.
Our tft lcd module have variety interface including MCU, RGB, TTL, LVDS, MIPI, serial SPI, I2C interface. The tft lcd display resolution from such as 80x160 pixels, 240X240 pixels, 320X380 pixels, tft lcd display module, and high resolution such 720 X 1280 1024X600 resolution.



Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.


Product Application


The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer


The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.


lcd screen application



Manufacturing Capacity


We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.



Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system



MES Quality Process Flowchart


quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.



The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Shenzhen Operation Center


Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.


Looking ahead


Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.





1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 2 inch sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 2 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
