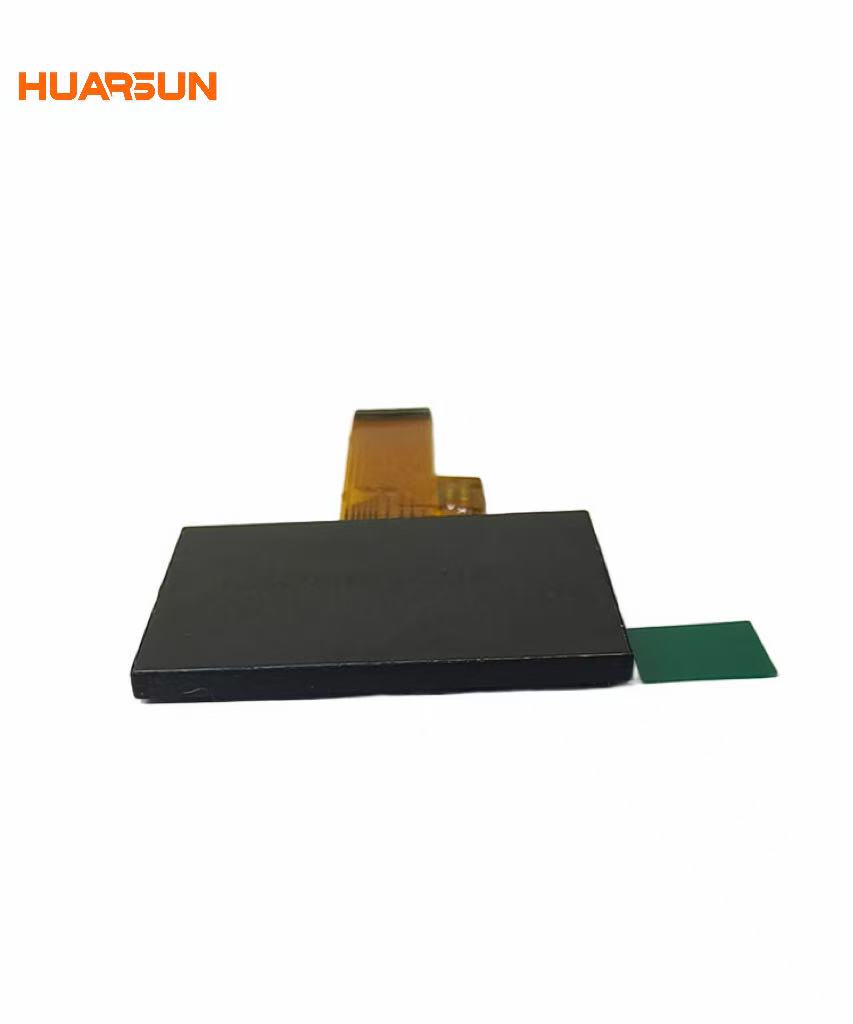

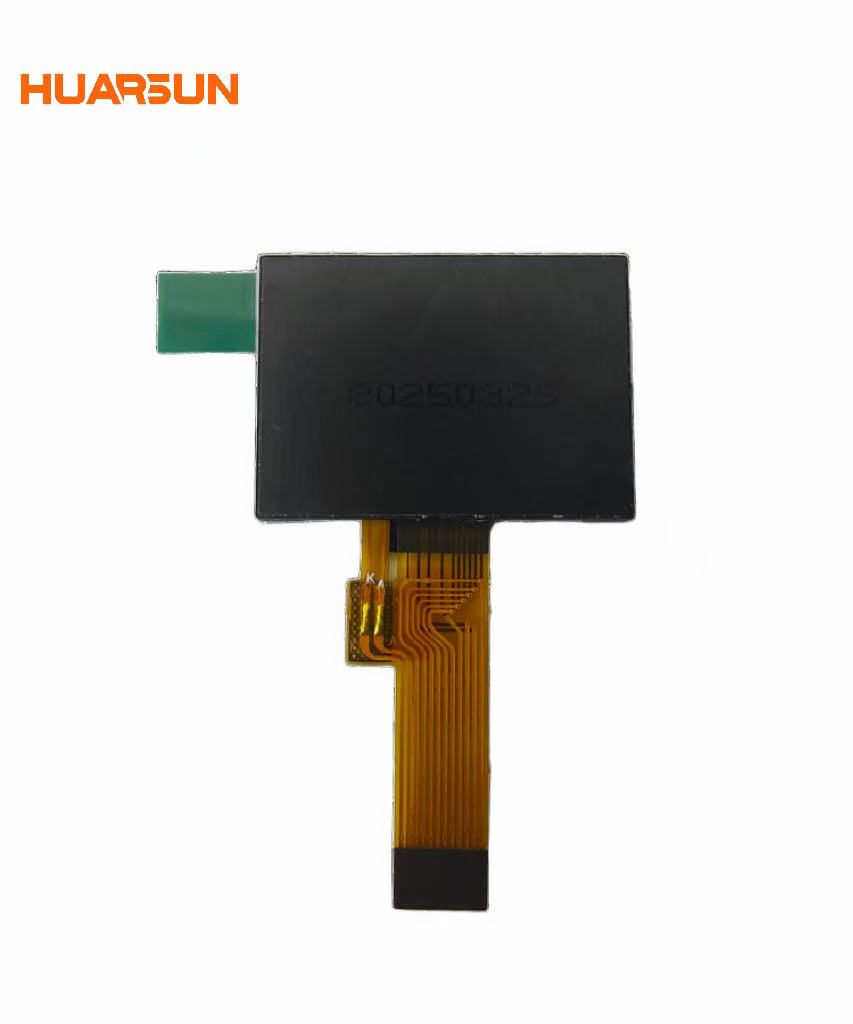

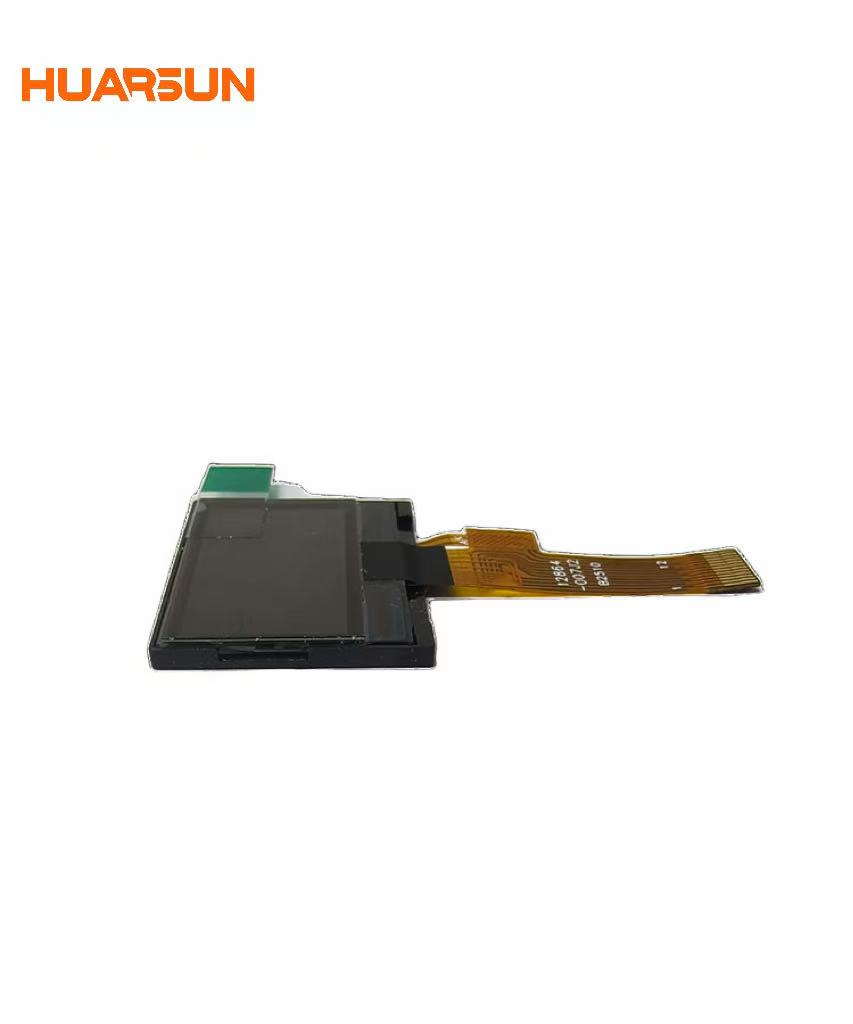

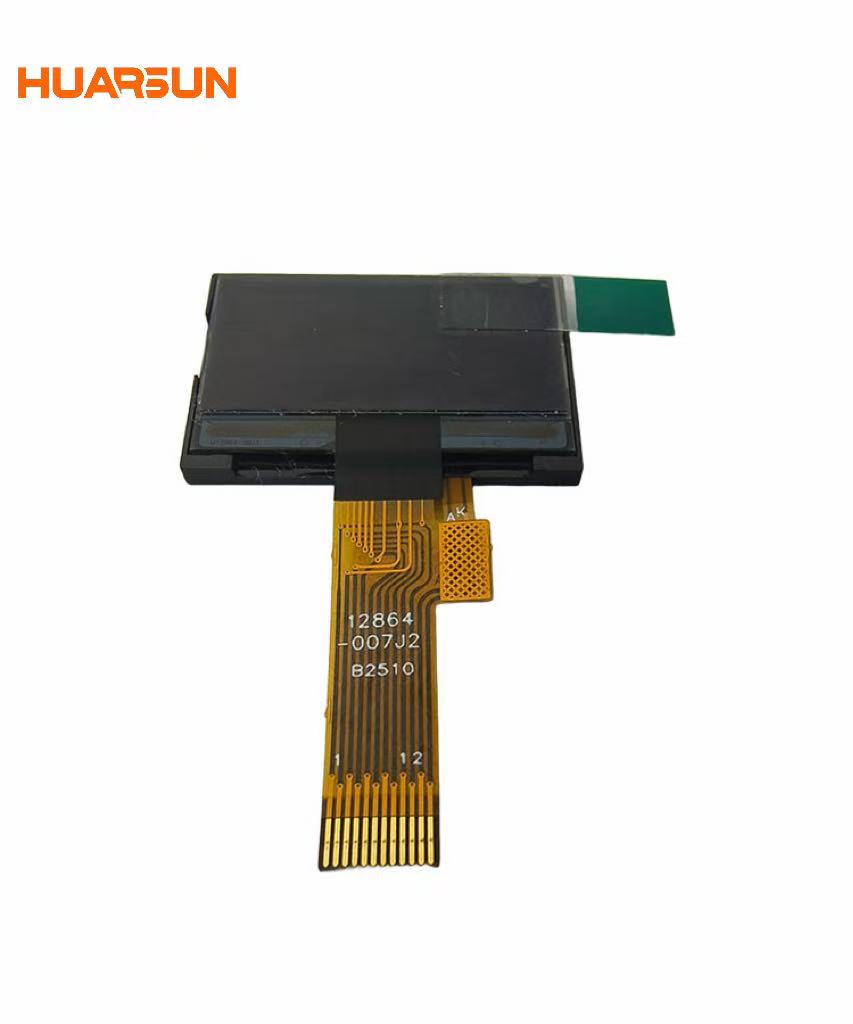

128x64 Monochrome LCD Display | COG Screen for Medical and Industrial Use |
|
| Display Type | DFSTN/NEGATIVE |
| Operating Voltage | VDD:2.8V, Vlcd:9V |
| Drive Mode | 1/64D,1/9B |
| Viewing Direction | 3:00 |
| Polarizer Type | TRANSMISSIVE |
| Connector | COG/ST7567A |
| Module Size | 26.7*19.26*2mm |
| Active Area | 21.744*10.86mm |
| Dots | 128*64 |
| Operating Temperature |
|
| Storage Temperature | -30℃ ~ +80℃ |

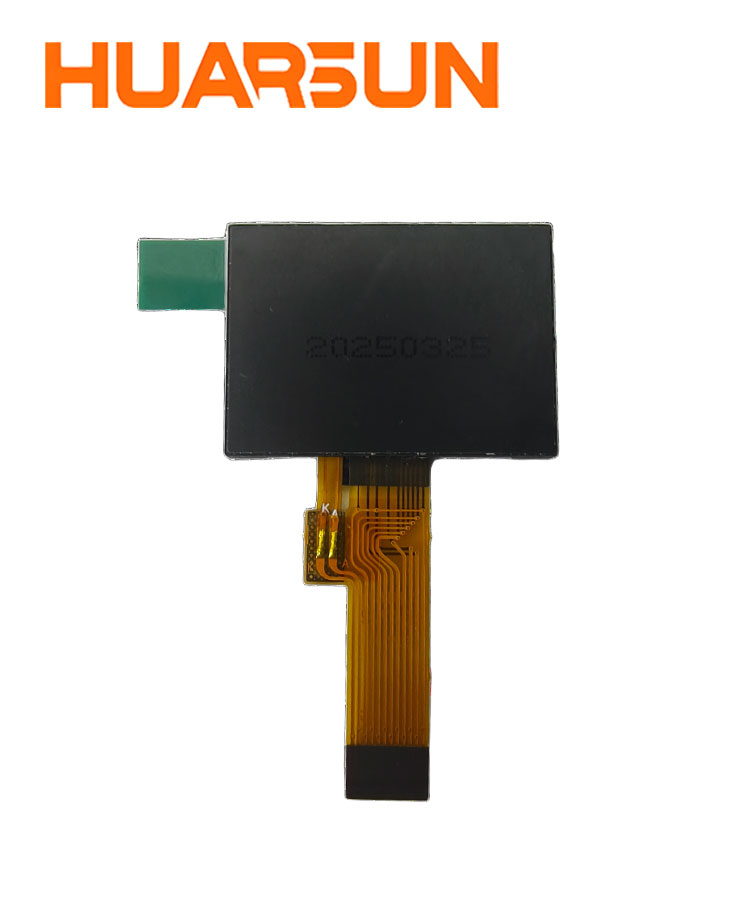

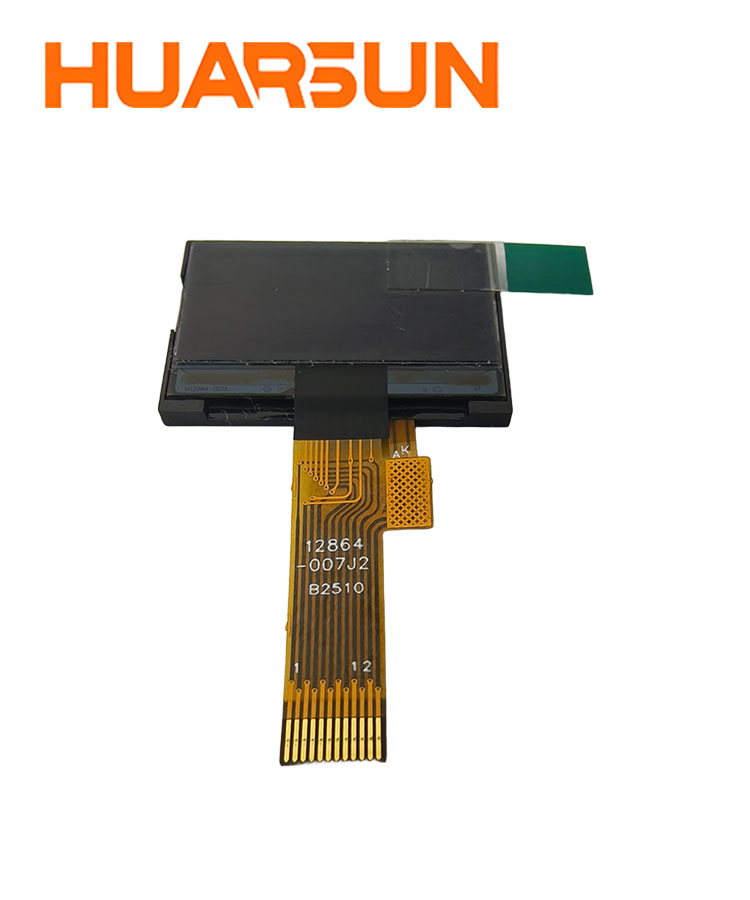

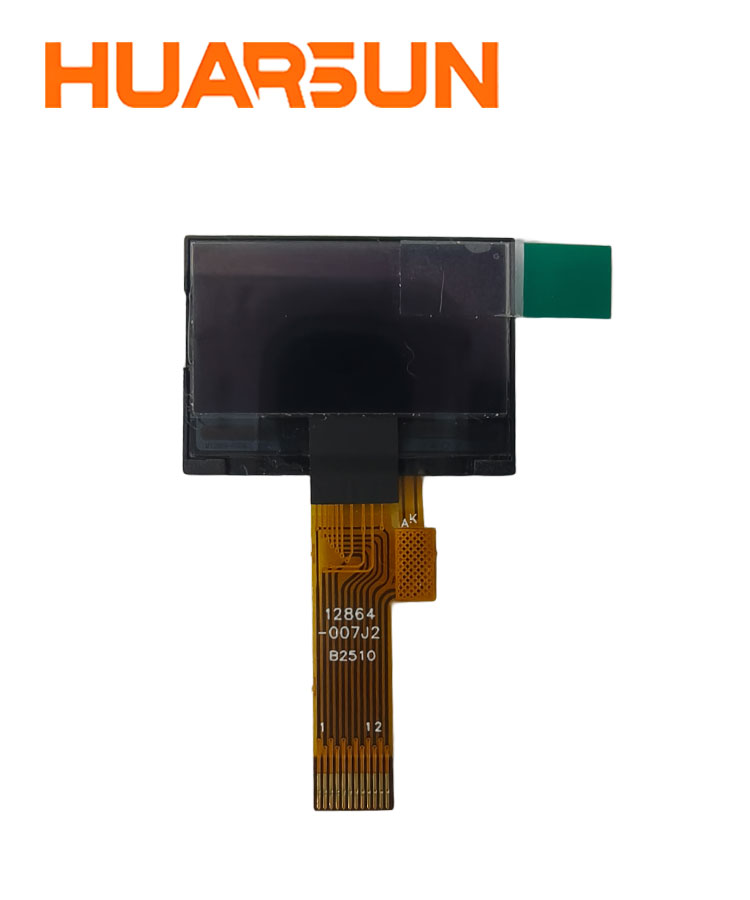

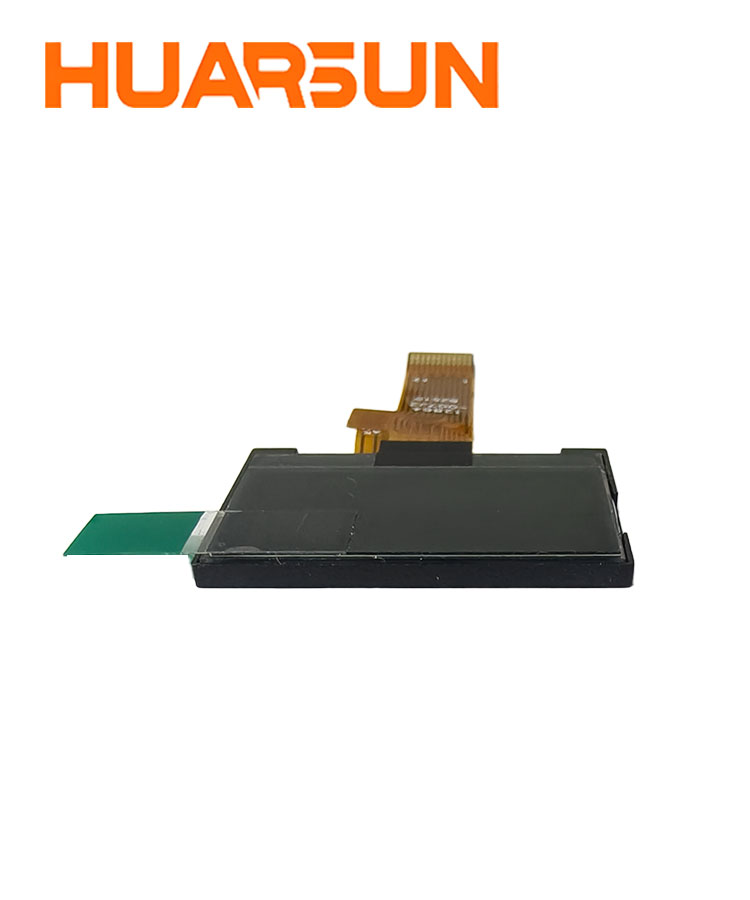

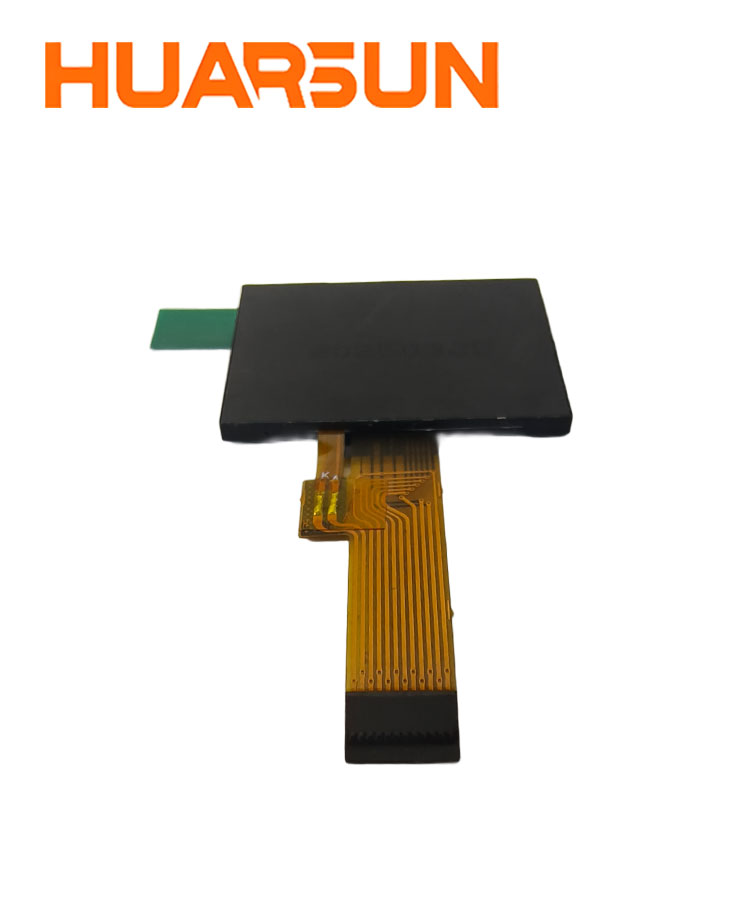

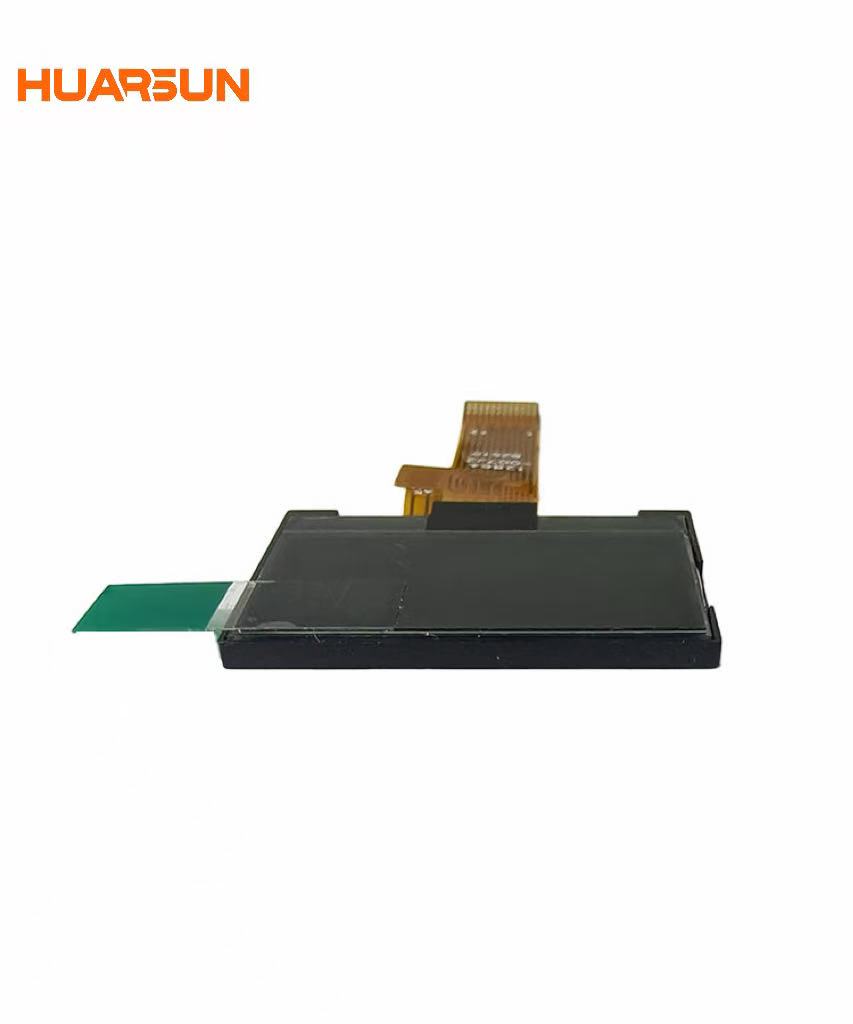

This 128x64 COG DFSTN LCD features a transmissive polarizer, ST7567A driver, and ultra-compact 21.74 × 10.86mm display area, delivering clear white-on-purple contrast. Optimized for handheld medical devices, portable industrial testers, and wall-mounted smart home panels.

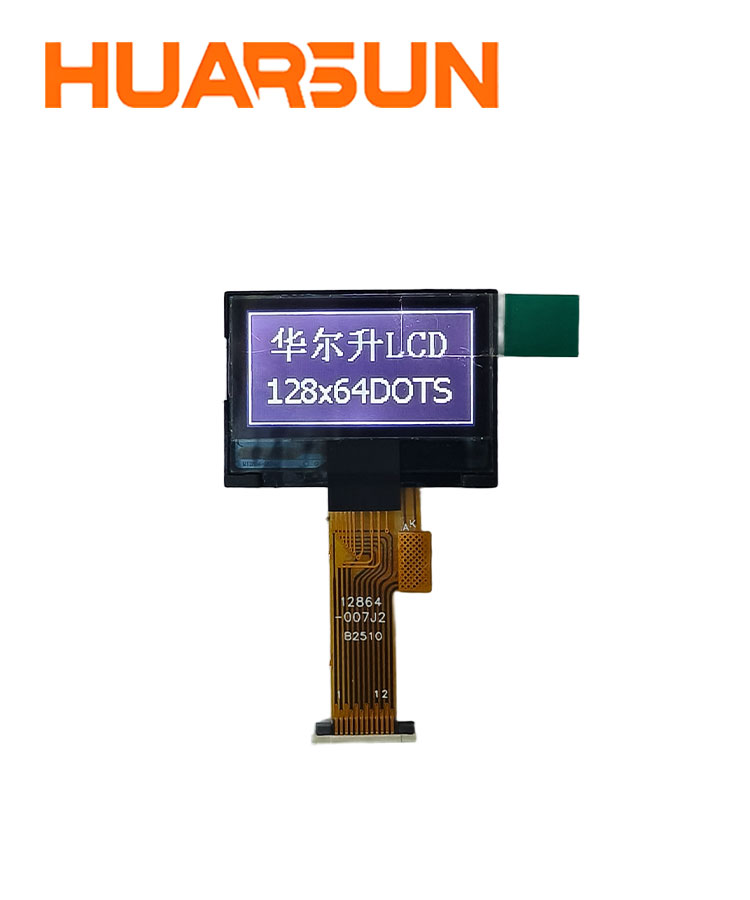

This 128x64 dot matrix DFSTN LCD module offers sharp white characters on a light purple background, providing high contrast and excellent readability even in dim environments. Built with COG structure and ST7567A driver IC, it ensures stable performance with low power consumption — perfect for portable and battery-operated applications.
Display Type: DFSTN, Negative (White on Purple)
Resolution: 128×64 dots
Driver IC: ST7567A (COG)
Operating Voltage: VDD: 2.8V | VLCD: 9V
Operating Temp: -20°C ~ 70°C
Outline Size: 26.7 × 19.26 × 2 mm
AA Size: 21.744 × 10.86 mm
Viewing Direction: 3:00 (Right view)
Polarizer: Transmissive, great for backlight usage
Application
The module is ideal for compact medical devices that demand clear visibility and low voltage operation. The gentle purple background with crisp white text ensures eye-friendly readout for elderly or low-light use cases.
With an operating range down to -20°C, the display performs reliably even in rugged environments. Its transmissive polarizer supports strong backlighting, making it readable outdoors and in dark panels.
Perfect fit for wall-mounted thermostats or smart switches, where modern color schemes and compact displays are preferred. The module delivers a sleek UI look with low power draw — ideal for always-on screens.
Small form factor makes this module ideal for wearables, timers, or pedometers, where space-saving and battery efficiency are essential. The display offers crisp visibility without glare.
|
The mono LCD display with FSTN/POSITIVE display type offers a reliable and versatile visual solution for Industrial Control. With its wide operating temperature range, efficient driving mode, and transmissive polarizer, this display ensures clear monochromatic content and optimal visibility. The PIN connector provides a secure and durable connection, while the compact module size allows integration into devices with limited space. Whether used in industrial equipment, medical equipment or consumer electronics, the display can provide reliable and high-quality visual effects, thus enhancing the overall user experience. |
| What is a mono lcd? |
|
A mono LCD, short for monochrome LCD, is a type of liquid crystal display that can only display one color. Typically, this color is either black, white, or various shades of gray. Monochrome LCDs are commonly used in devices that do not require color displays, such as digital watches, calculators, and some industrial equipment. Mono LCDs work by using liquid crystals that change their orientation in response to an applied electric field. The orientation of the crystals affects the amount of light that is able to pass through the display, creating the images and text that appear on the screen. Because monochrome LCDs only need to display one color, they are simpler and less expensive to manufacture than color LCDs. Despite their limited color capabilities, monochrome LCDs have several advantages over other types of displays. They typically consume less power than color displays, which makes them well-suited for battery-powered devices. They are also generally more durable and have longer lifespans than other types of displays, making them a popular choice for industrial and military applications where reliability is crucial. In summary, a mono LCD is a type of display that can only display one color, typically black, white, or shades of gray. They are commonly used in devices that do not require color displays and have several advantages over other types of displays, including lower power consumption and increased durability. |
