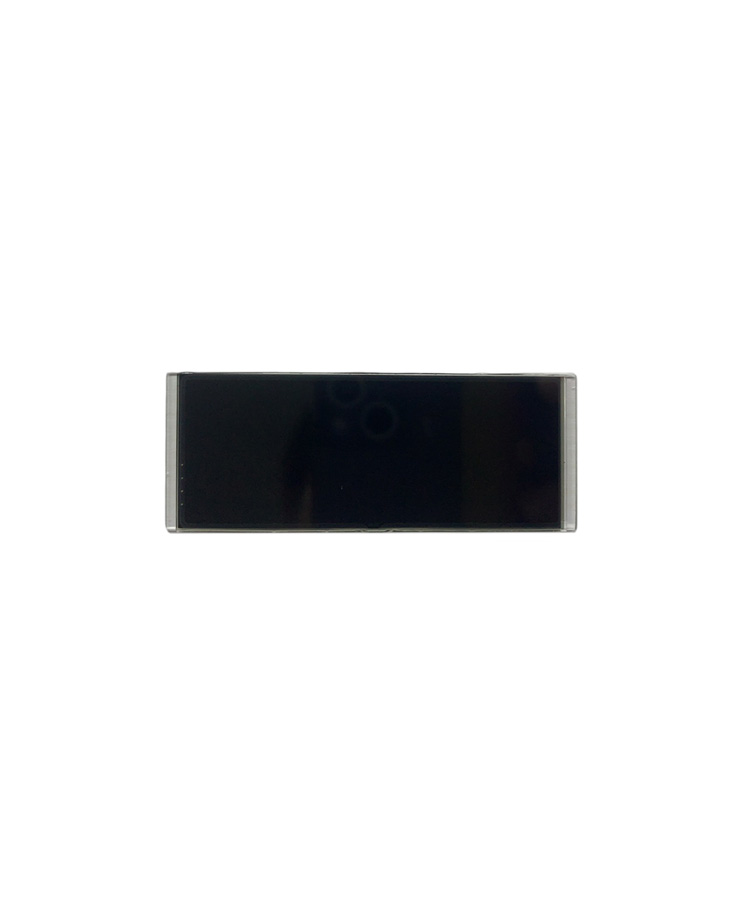

Monochrome Customized LCD Display Segment Code Screen Of Onboard Instrument

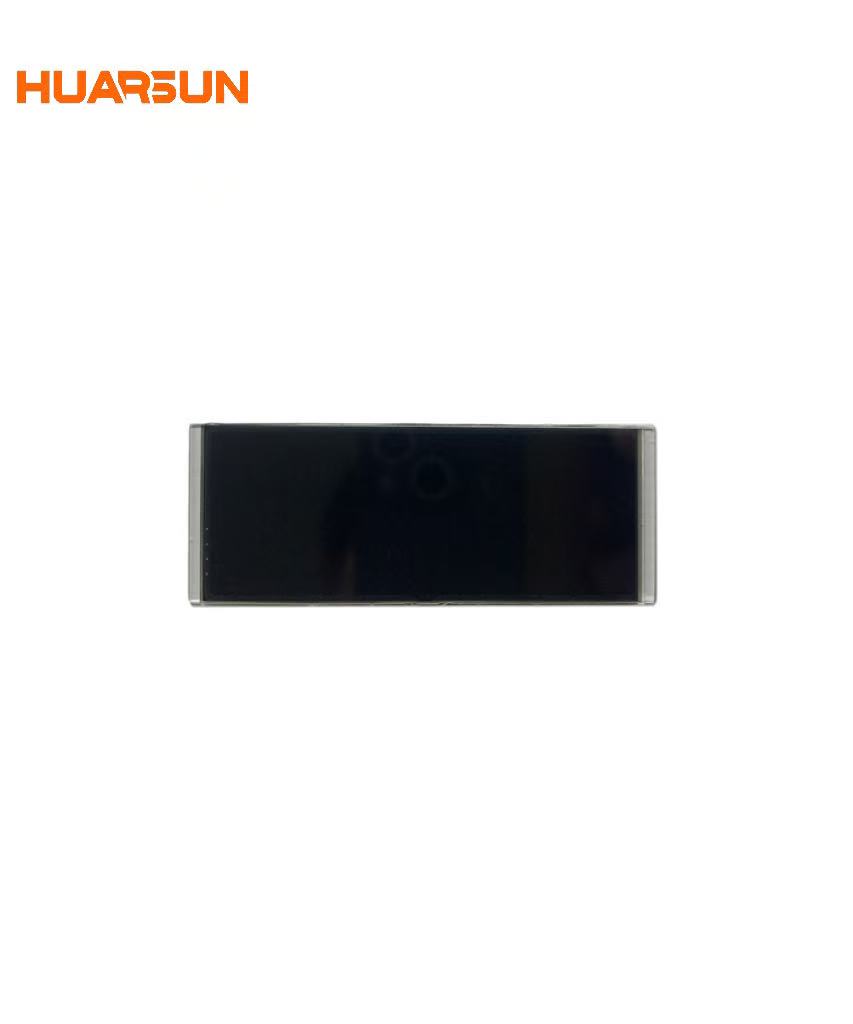

Monochrome Customized LCD Display Segment Code Screen Of Onboard Instrument
Monochrome Customized LCD Display Segment Code Screen Of Onboard Instrument

Monochrome Customized LCD Display Segment Code Screen Of Onboard Instrument

Display Type:VA/NEGATIVE Structure:LCD+PIN Operating Voltage:4.5V Operating Temperature:-30℃~85℃ Storage Temperature:-40℃~90℃ Drive Mode:1/4D,1/3B Viewing Direction:6:00 Polarizer Type:TRANSMISSIVE Connector:PIN Module Size:80.38*30.88*2.90 View
Display Type:VA/NEGATIVE
Operating Voltage:4.5V
Operating Temperature:-30℃~85℃
Storage Temperature:-40℃~90℃
Drive Mode:1/4D,1/3B
Viewing Direction:6:00
Module Size:80.38*30.88*2.90
View Area:70.38*25.88


Product Details


monochrome customized LCD segment code screen of onboard instrument

Display Type VA/NEGATIVE
Structure LCD+PIN
Operating Voltage 4.5V
Operating Temperature -30℃~85℃
Storage Temperature -40℃~90℃
Drive Mode 1/4D,1/3B
Viewing Direction 6:00
Connector PIN
Module Size 80.38*30.88*2.90
View Area 70.38*25.88


The mono LCD display offers a reliable and versatile visual solution for a wide range of applications. With its VA/NEGATIVE display type, the module provides clear and crisp monochrome content that ensures optimal visibility and readability.

The display structure combines an LCD panel and PIN connection, resulting in a sturdy and secure display module. This structure enhances the overall durability of the display, making it suitable for various devices and environments.

Operating at a voltage of 4.5V, the display ensures efficient power consumption while maintaining optimal performance. This operating voltage allows the module to deliver consistent and reliable visuals without compromising on energy efficiency. Users can enjoy extended battery life and efficient power usage when utilizing devices equipped with this display.

Designed to withstand extreme temperatures, the mono LCD display operates in a wide temperature range of -30℃ to 85℃. This wide operating temperature range ensures that the module remains functional and reliable even in harsh environmental conditions. Whether used in hot or cold environments, the display maintains its performance and readability.

For storage purposes, the display can handle temperatures ranging from -40℃ to 90℃. This wide storage temperature range ensures the integrity of the module when not in use, providing peace of mind during transportation and storage of devices equipped with this display.

The drive mode of the display is 1/4D and 1/3B, optimizing the performance and power consumption of the module. This drive mode ensures smooth transitions and efficient operation, enhancing the overall user experience. Users can expect seamless visual experiences and responsive interactions when using devices featuring this display.

The viewing direction of the mono LCD display is set at 6:00, allowing users to comfortably view the content displayed on the screen. This viewing direction is optimized for ease of use and ensures that the displayed information is easily readable from a typical user's perspective.

With a transmissive polarizer type, the display offers excellent light transmission, resulting in clear and legible visuals. This polarizer type enhances contrast and visibility, ensuring that the displayed content is easily readable in various lighting conditions. Whether indoors or outdoors, users can rely on this display to provide optimal visibility.

Equipped with a PIN connector, the display ensures a secure and reliable connection to the host device. The PIN connector provides stability and durability, ensuring that the display operates optimally even under challenging conditions. Manufacturers and users can have confidence in the display's long-term reliability and performance.

The module size of the display is 80.38*30.88*2.90, providing a compact and space-efficient solution for devices where size is a constraint. Despite its compact size, the display offers a generous view area of 70.38*25.88, ensuring that users can comfortably view and interact with the displayed content.

In conclusion, the mono LCD display with VA/NEGATIVE display type offers a reliable and versatile visual solution for various applications. With its wide operating temperature range, efficient drive mode, and transmissive polarizer type, this display ensures clear and crisp monochrome content with optimal visibility. The PIN connector provides a secure and durable connection, while the compact module size allows for integration into devices with limited space. Whether used in industrial equipment, medical devices, or consumer electronics, this display enhances the overall user experience by delivering reliable and high-quality visuals.



What is a mono lcd?

A mono LCD, short for monochrome LCD, is a type of liquid crystal display that can only display one color. Typically, this color is either black, white, or various shades of gray. Monochrome LCDs are commonly used in devices that do not require color displays, such as digital watches, calculators, and some industrial equipment.

Mono LCDs work by using liquid crystals that change their orientation in response to an applied electric field. The orientation of the crystals affects the amount of light that is able to pass through the display, creating the images and text that appear on the screen. Because monochrome LCDs only need to display one color, they are simpler and less expensive to manufacture than color LCDs.

Despite their limited color capabilities, monochrome LCDs have several advantages over other types of displays. They typically consume less power than color displays, which makes them well-suited for battery-powered devices. They are also generally more durable and have longer lifespans than other types of displays, making them a popular choice for industrial and military applications where reliability is crucial.

In summary, a mono LCD is a type of display that can only display one color, typically black, white, or shades of gray. They are commonly used in devices that do not require color displays and have several advantages over other types of displays, including lower power consumption and increased durability.
