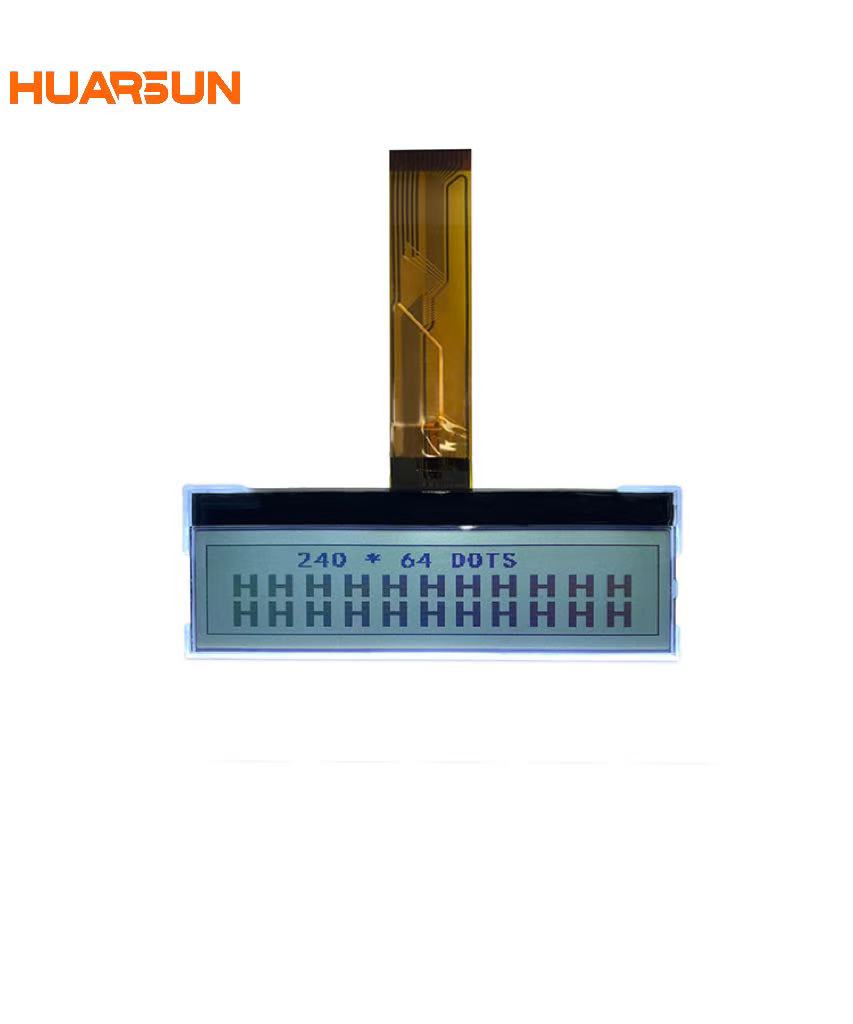

240*64 STN Transflective Positive Monochromatic LCD Display Distributor
240*64 STN Transflective Positive Monochromatic LCD Display Distributor

240*64 STN Transflective Positive Monochromatic LCD Display Distributor

LCD Type:STN(GRAY) Polarizer Mode:Transflective Positive Viewing Direction:6:00 O`Clock Controller IC:UCi6963 Number of Dots:240*64 Viewing Area(WxH) :134.00*41.00 Active Area(WxH):127.16*33.88
Display Type:Mono LCD STN Transflective Positive 240*64
Controller IC:UCi6963
Viewing Area(WxH) :134.00*41.00
Active Area(WxH):127.16*33.88
Viewing Direction:6:00 O`Clock
Controller IC:UCi6963
Data Transfer:8bit 8080

Product Details


240*64 STN Transflective Positive Monochromatic LCD Display Distributor

Polarizer Mode Transflective Positive /
LCD Duty 1/64 /
LCD Bias 1/9 /
Viewing Direction 6:00 O`Clock
Controller IC UCi6963 /
VDD 3.3 V
Data Transfer 8bit 8080 /
Number of Dots 240*64 dots
Dot Size(WxH) 0.49*0.49 mm
Dot Pitch(WxH) 0.53*0.53 mm
Viewing Area(WxH) 134.00*41.00 mm
Active Area(WxH) 127.16*33.88 mm
Backlight 6 Chip White LED /
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Module Operating Current <150 mA


mono lcd 240*64 STN positive transfelctive


The LCD type for this particular display is STN, which stands for "Super Twisted Nematic." This type of LCD has a higher contrast ratio and faster response time compared to other types of LCDs. The polarizer mode for this display is transflective positive, which means that it can reflect ambient light to produce images and can also transmit backlighting to create clear images in low-light conditions.

The viewing direction for this mono LCD display is 6:00 O'clock and the display should be viewed from the bottom. This is important to consider when designing the layout for a device that will incorporate this display, as the viewing angle can affect how the images and text are perceived by the user. The controller IC for this display is the UCi6963, which is responsible for controlling the individual pixels on the screen and updating the display in real-time.

This monochrome LCD display has a total of 240 x 64 dots, providing considerable space for displaying information. The viewable area of this monitor is 134.00 x 41.00, which is the total size of the screen. The active area, on the other hand, is 127.16 x 33.88, which is the area actually used to display images and text.This is an important distinction to make when designing the layout for a device that will incorporate this display, as it can affect how the content is positioned on the screen and how much of it can be displayed at one time.

Overall, this mono LCD display with STN technology, transflective positive polarizer mode, 6:00 O'clock viewing direction, UCi6963 controller IC, 8bit 8080 data transfer, 6 chip white led backlight and 240 by 64 dots offers a high-quality visual experience with excellent contrast and a fast response time. Its viewing and active areas provide ample space for displaying information, and it is well-suited for use in a wide range of devices where a clear and reliable display is required.



What is a mono lcd?

A mono LCD, short for monochrome LCD, is a type of liquid crystal display that can only display one color. Typically, this color is either black, white, or various shades of gray. Monochrome LCDs are commonly used in devices that do not require color displays, such as digital watches, calculators, and some industrial equipment.

Mono LCDs work by using liquid crystals that change their orientation in response to an applied electric field. The orientation of the crystals affects the amount of light that is able to pass through the display, creating the images and text that appear on the screen. Because monochrome LCDs only need to display one color, they are simpler and less expensive to manufacture than color LCDs.

Despite their limited color capabilities, monochrome LCDs have several advantages over other types of displays. They typically consume less power than color displays, which makes them well-suited for battery-powered devices. They are also generally more durable and have longer lifespans than other types of displays, making them a popular choice for industrial and military applications where reliability is crucial.

In summary, a mono LCD is a type of display that can only display one color, typically black, white, or shades of gray. They are commonly used in devices that do not require color displays and have several advantages over other types of displays, including lower power consumption and increased durability.



Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.


Product Application


The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer


The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.


lcd screen application



Manufacturing Capacity


We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.



Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system



MES Quality Process Flowchart


quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.



The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Shenzhen Operation Center


Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.


Looking ahead


Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.





1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 240*64 mono sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 240*64 mono sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
