Home - Products - MONOCHROME - Smart Home

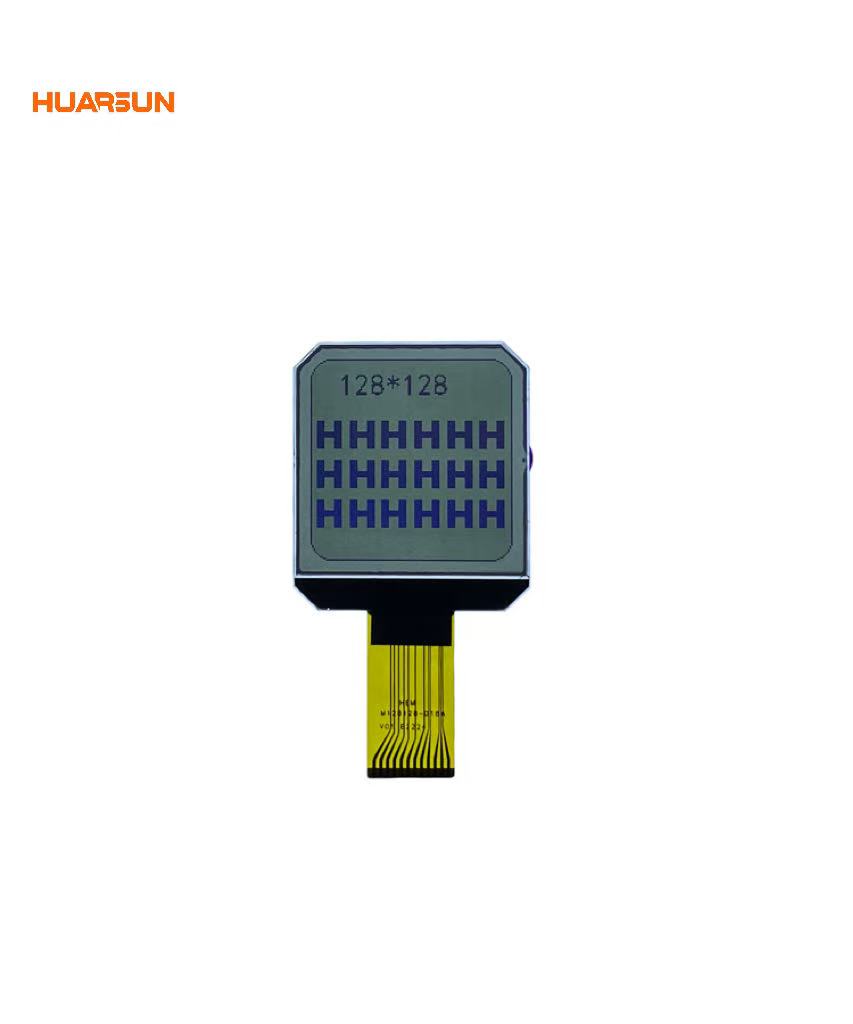

TFT LCD Display Modules Various Sized Manufacturers 128128 Dot
TFT LCD Display Modules Various Sized Manufacturers 128128 Dot
TFT LCD Display Modules Various Sized Manufacturers 128128 Dot

TFT LCD Display Modules Various Sized Manufacturers 128128 Dot

HEM Monochrome Display Screen China Supplier Display For Learning Machine
1.DISPLAY TYPE:FSTN/POSITIVE
2.OPERATING VOLTAGE:VDD=3.3V,VIcd=10.5V
3.OPERATING TEMPERATURE:-20℃~70℃
4.STORAGE TEMPERATURE:-30℃~80℃
5.DRIVE MODE:1/128D,1/10B
6.VIEWING DIRECTION:6:00
7.POLARIZER TYPE:TRANSFLECTIVE
8.CONNECTOR:COG/ST7570

Email:cenni@hemlcd.com

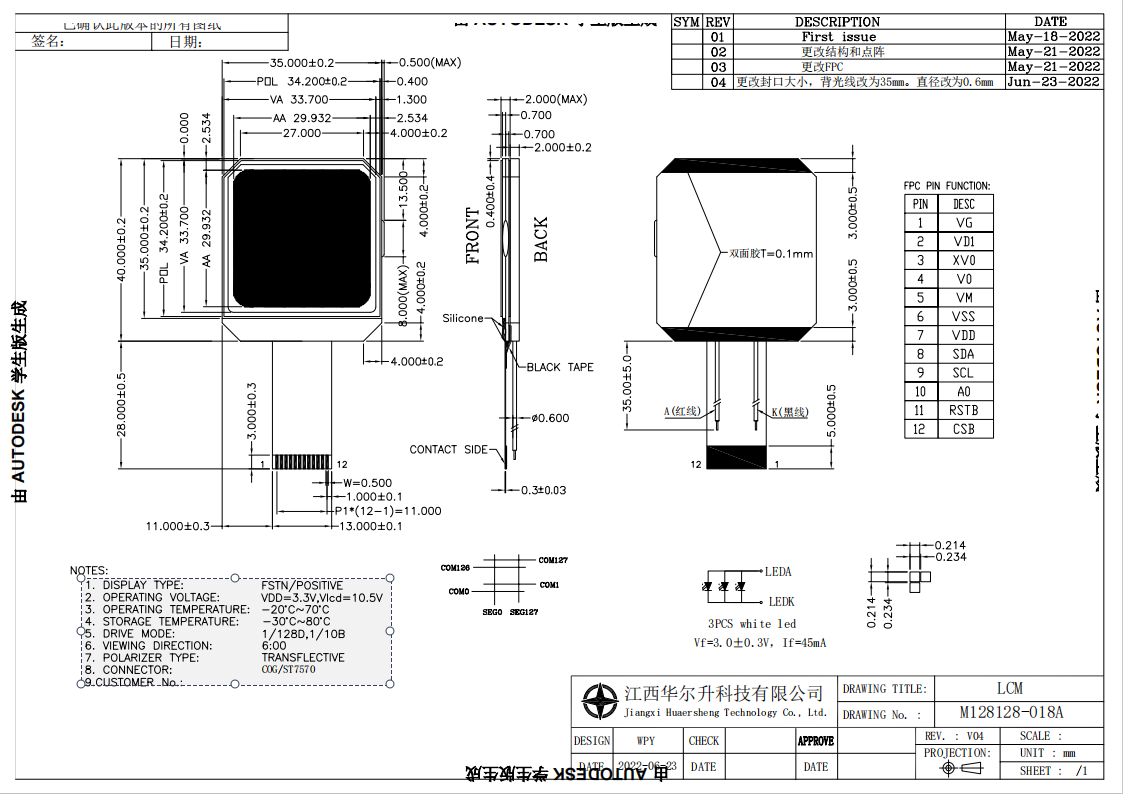

Product Details



TFT LCD Display Modules Various Sized Manufacturers 128128 Dot

DISPLAY TYPE

FSTN/POSITIVE

OPERATING VOLTAGE

VDD=3.3V,VIcd=10.5V

OPERATING TEMPERATURE

-20℃~70℃

STORAGE TEMPERATURE

-30℃~80℃

DRIVE MODE

1/128D,1/10B

VIEWING DIRECTION

6:00

POLARIZER TYPE

TRANSFLECTIVE

CONNECTOR

COG/ST7570

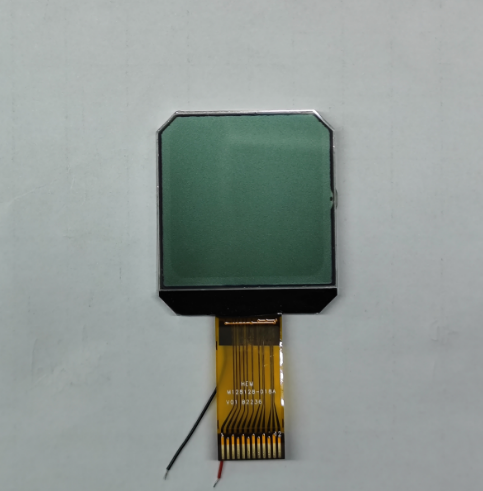

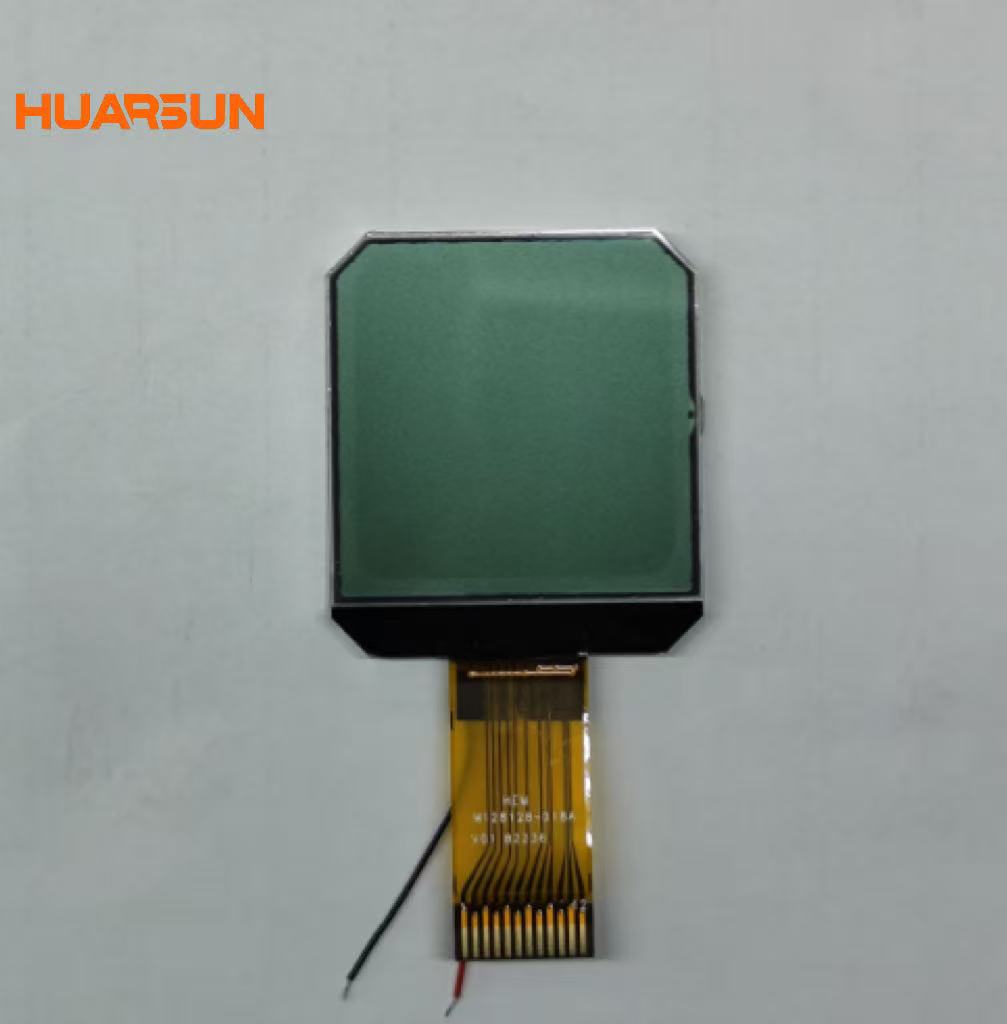

128128 DOT Module

TFT display


The 128128 dot matrix module is a common liquid crystal display (LCD) module with a display area of 128x128 pixels and displays graphics and text in dot matrix form. This kind of module is usually used in small electronic devices, such as smart watches, health monitoring equipment, POS machines, etc.
Dot matrix modules can be divided into positive display and negative display according to the display mode. The display color of positive display is lighter and the background color is darker, while the display color of negative display is darker and the background color is lighter. In addition, there are many driving methods for dot matrix modules, such as COG (Chip On Glass) and COB (Chip On Board).
The advantages of the 128128 dot matrix module include:
1. Small size: suitable for equipment with limited space.
2. Low power consumption: Compared with other types of display screens, dot matrix modules have lower power consumption.
3. Low cost: Due to its simple structure and low manufacturing cost, the cost of the dot matrix module is low.
4. Good display effect: graphics and text can be displayed clearly and in bright colors.
In short, the 128128 dot matrix module is a commonly used LCD display module with the advantages of small size, low power consumption, low cost and good display effect.

What is TFT display module?

TFT displays module are liquid-crystal display panel with thin-film transistor technology, bonding with IC driver, backlight unit, and flex cable, sometimes assemble control board with difference interface. TFT display is active display with high contrast than monochrome lcd, The TFT display technology could offers full RGB display in wide range display colors, high display resolution. We could get rich colors, detailed images, clear and bright graphics display from a tft lcd module.

HEM provide wide range small sizes tft lcd display module. Our small tft lcd sizes ( diagonal size of tft active area) have 0.96” tft lcd, 1.05” tft lcd, 1.09” tft lcd, 1.14”tft lcd, 1.28” tft lcd display module, 1.32” tft lcd, 1.44” tft lcd module, 1.47” tft display module, 1.69” tft lcd, 1.72” tft display, 1.91inch tft, 2.0” tft lcd. 2.4” tft lcd module, 2.8”inch tft, 3.5” tft lcd, 4.3” tft lcd display module, 5 inch tft, 7” tft display module. Our wide range standard tft lcd module could meet the most of application for Wearable, Smart home, industrial, medical. Such as wearable watch, bracelet, videophone, coffee machine, medical equipment, POS system, kitchen display, cooking machine, IOT, and etc.

HEM tft lcd module including standard tft-lcd modules, wide viewing angle IPS tft lcd, and transflective tft lcd, reflective tft, Wide temperature tft lcd, round type tft lcd, bar type tft lcd, Resistive touch panel and Capacitive touch screen (PCAP) with tft lcd.

Our tft lcd module have variety interface including MCU, RGB, TTL, LVDS, MIPI, serial SPI, I2C interface. The tft lcd display resolution from such as 80x160 pixels, 240X240 pixels, 320X380 pixels, tft lcd display module, and high resolution such 720 X 1280 1024X600 resolution.

Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.




Product Application



The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd 126x294 manufacturer



The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.



lcd screen application






Manufacturing Capacity



We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.






Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system






MES Quality Process Flowchart



quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.






The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead



Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres.

Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ



1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 2.8 inch TFT sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 2.8 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
