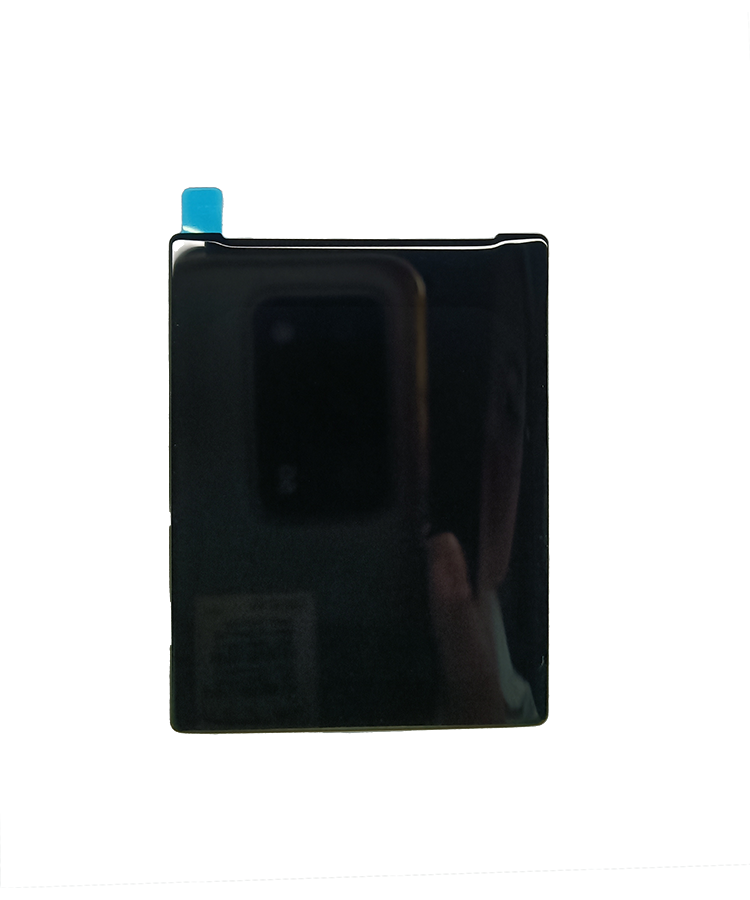

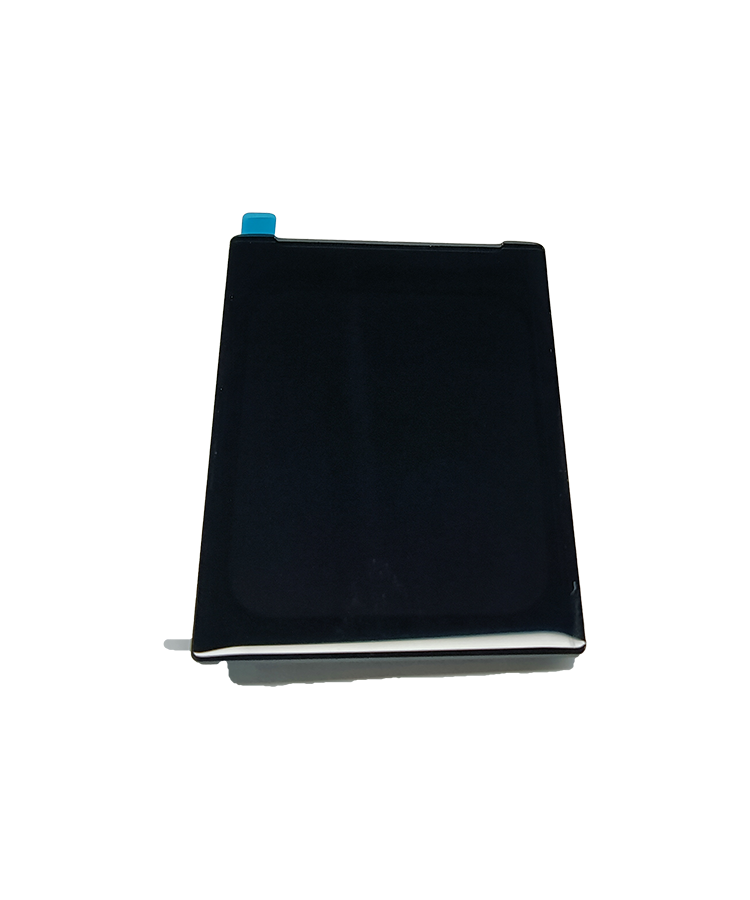

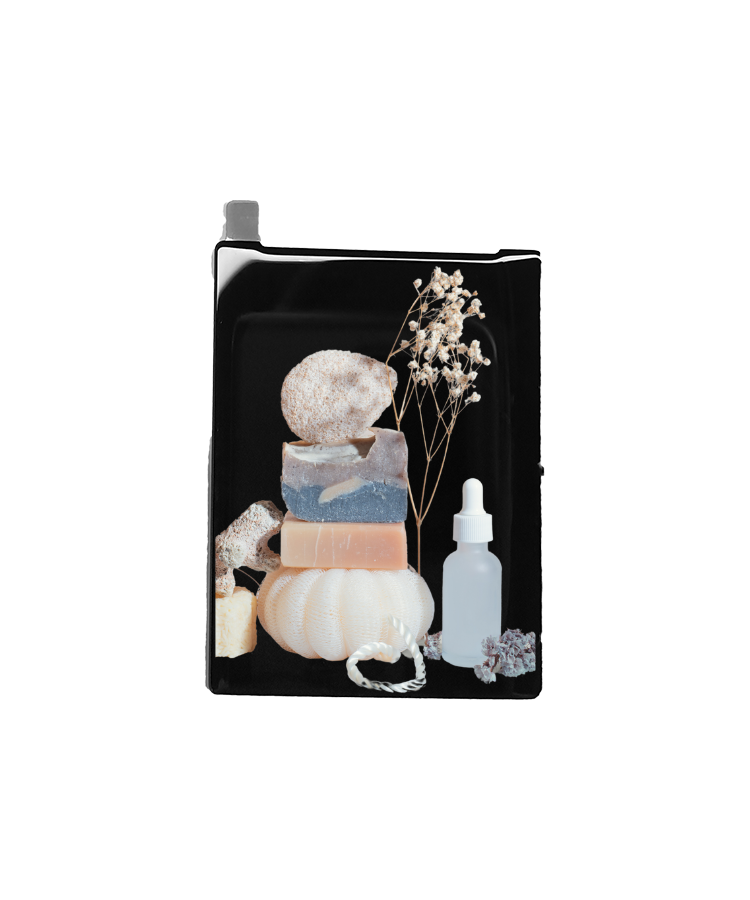

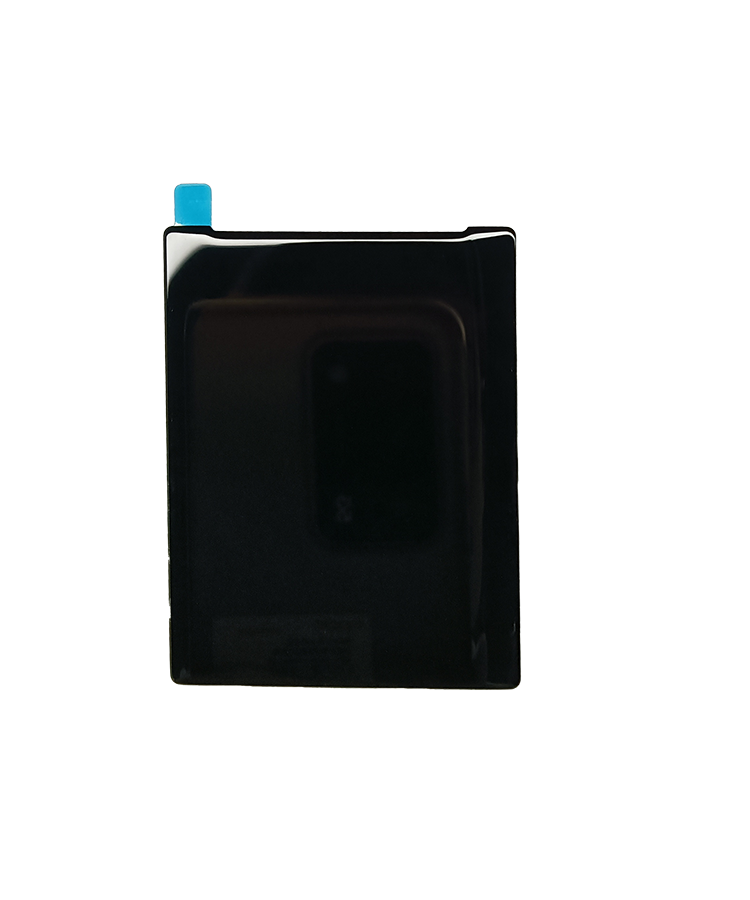

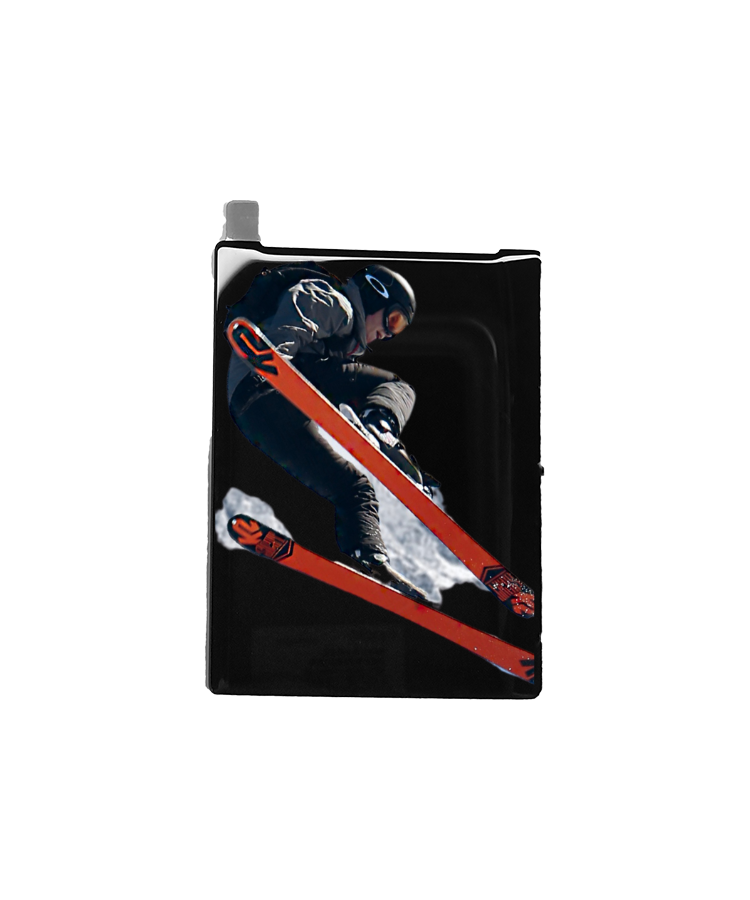

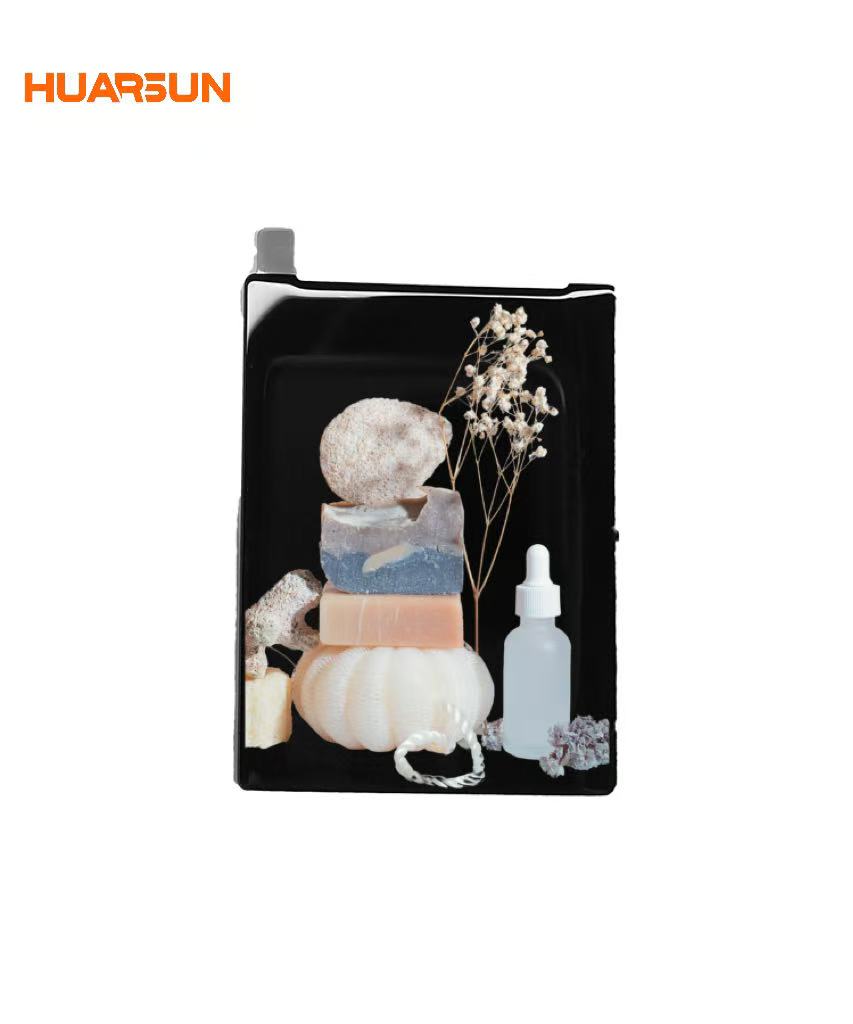

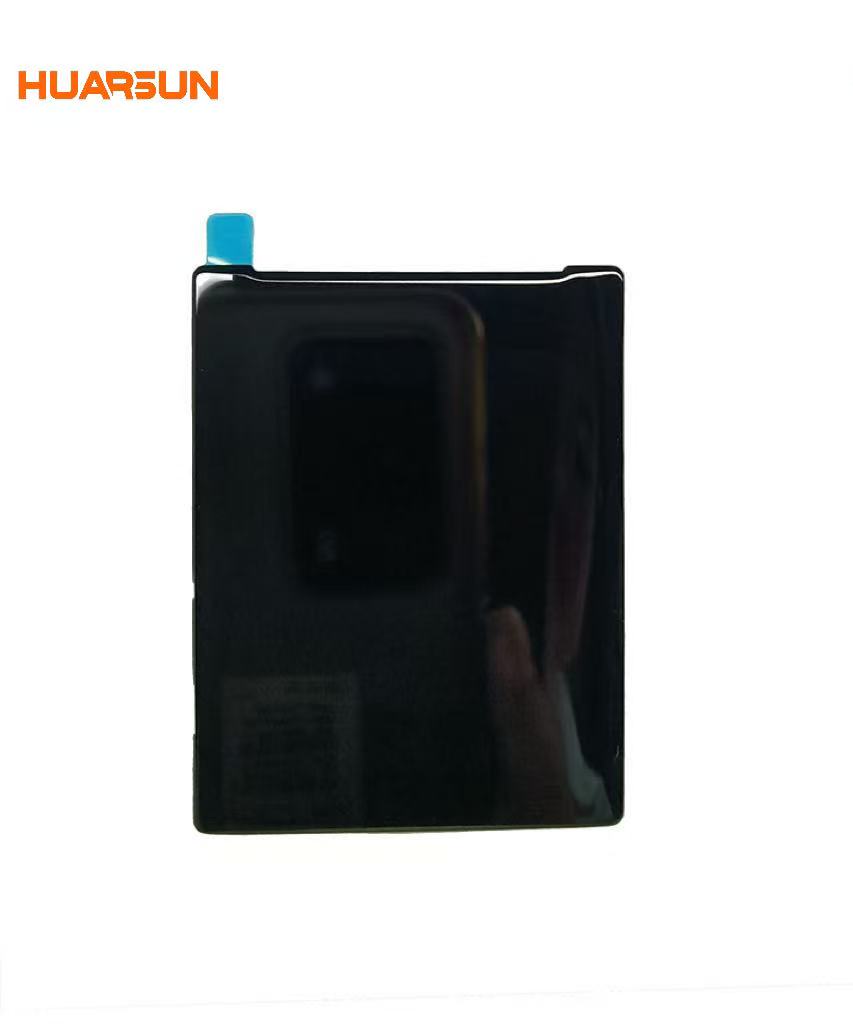

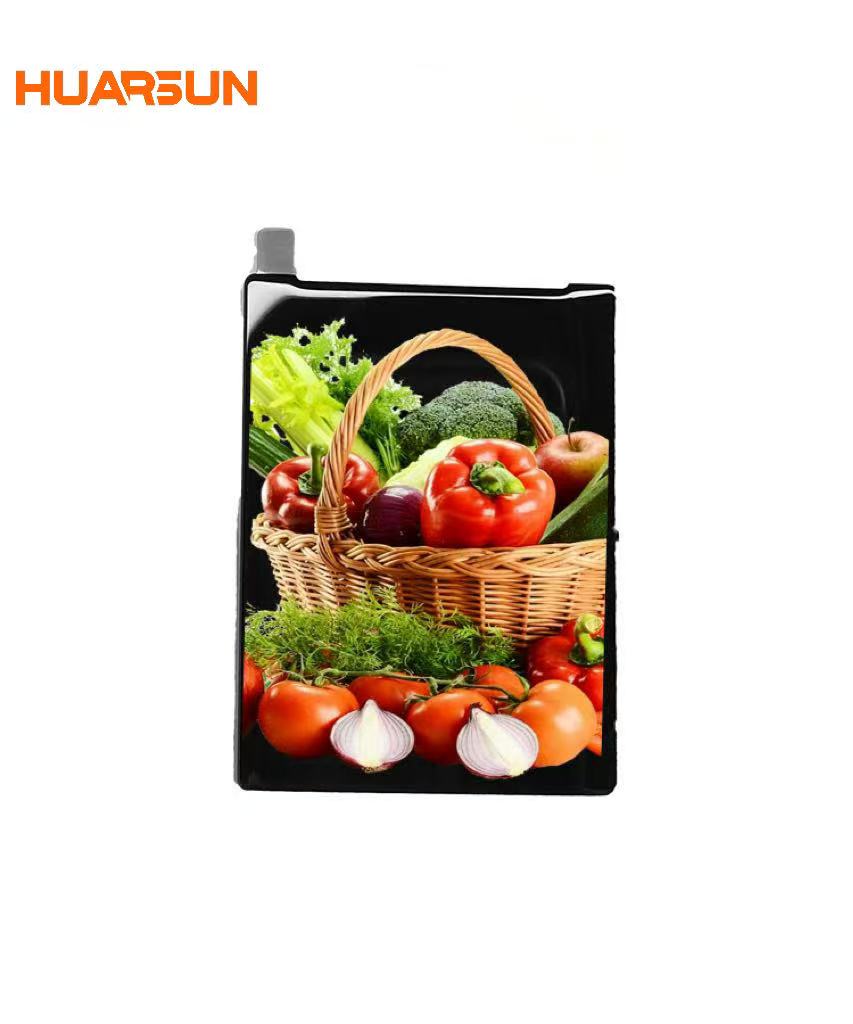

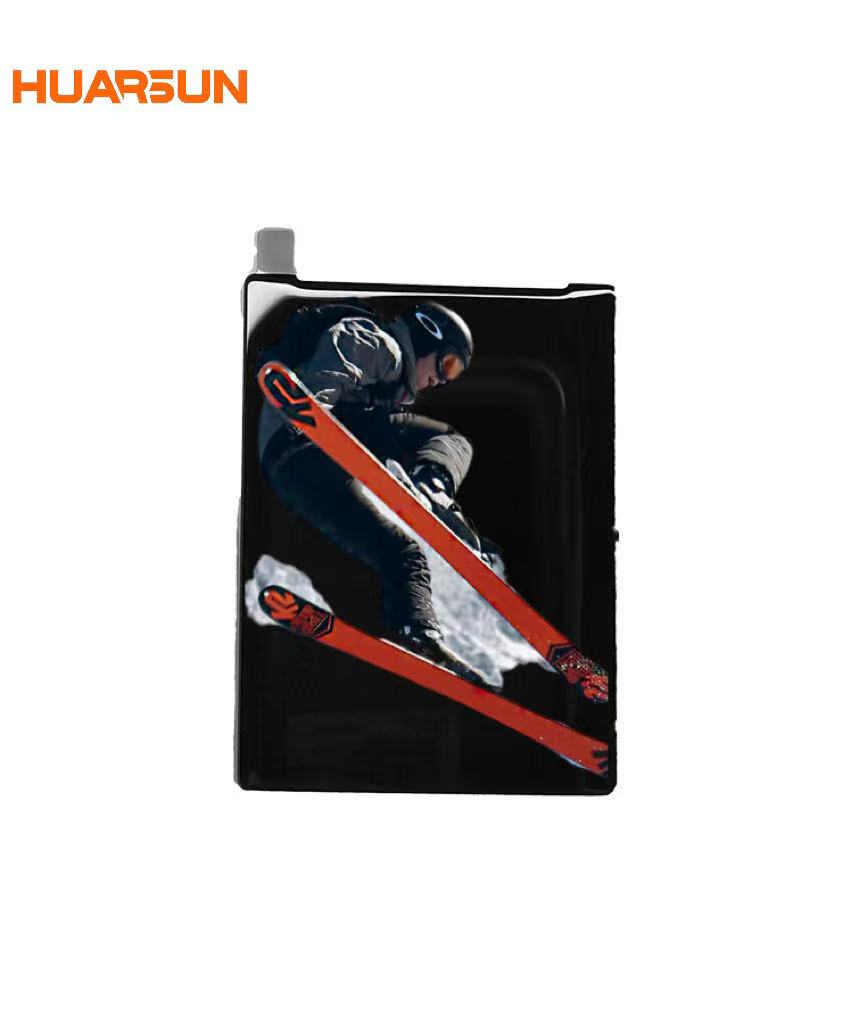

Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices
Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices
Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices
Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices
Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices
Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices
Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices
Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices

Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices

ZC-A1D78E-087 1.78inch Amoled Display Screen Small Size China Wholesale Price Support OEM/ODM for Smart Home Appliance

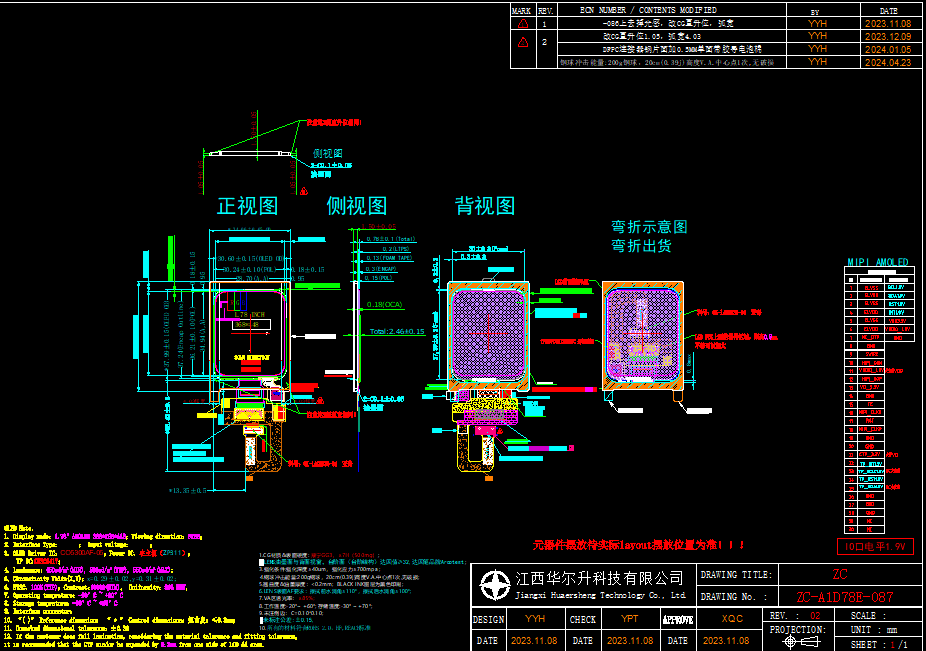

ZC-A1D78E-087
1. Display mode: 1.78" AMOLED 368*RGB*448; Viewing direction: FREE;
2. OLED Driver IC: CO5300AF-05; Power IC: 在主板(ZP311);
TP IC:CHSC6417;
3. Luminance: 450cd/m²(MIN), 500cd/m²(TYP), 550cd/m²(MAX);
4. Chromaticity White(X,Y): x=0.29±0.02,y=0.31±0.02;
5. NTSC: 100%(TYP); Contrast:10000(MIN); Uniformity: 80% MIN;
6. Operating temprature: -20°C ~ +60°C
7. Storage temprature: -30°C ~ +65°C

Email:cenni@hemlcd.com

Product Details

Hemlcd 1.78" Amoled Display 368*RGB*448 Screen for Wearable Devices

Display mode  1.78" AMOLED 368*RGB*448
Viewing direction FREE
OLED Driver IC CO5300AF-05
Power IC ZP311
TP IC CHSC6417
 Luminance 450cd/m²(MIN), 500cd/m²(TYP), 550cd/m²(MAX)
Operating temprature -20°C ~ +60°C
Storage temprature -30°C ~ +65°C

1.78inch Amoled

1.78inch Amoled

What is AMOLED display module?

AMOLED (Active Matrix/Organic Light Emitting Diode) is an active matrix organic light emitting diode panel. Compared with traditional LCD panels in terms of display performance, AMOLED has faster response speed, higher contrast ratio, and wider viewing angle. These are the places where AMOLED is inherently better than TFT LCD. In addition, AMOLED has the characteristics of self-illumination and does not need to use backlight. board, so it can be made thinner and lighter than TFT, and saves power; there is another more important feature, AMOLED that does not need a backlight board can save the cost of the backlight module that accounts for 3~4 of the TFT LCD.AMOLED is the best display technology to replace TFT-LCD: OLED (Organic Light Emitting Diode) adopts a new type of flat display technology that stimulates luminescent materials to actively emit light by current to obtain display effects; among them, PMOLED technology with relatively simple manufacturing process is relatively mature, but It only has significant advantages in small-size applications; based on its own advantages in manufacturing process and structure, AMOLED has more obvious advantages than TFT-LCD, and is suitable for medium and large-size display fields, and is the best display technology to replace TFT-LCD , is also the mainstream trend of OLED development.




Our Products

We are specialized in LCD display, including mono LCD module,TFT module and AMOLED module, which is the high and new tech enterprises in the country with the independent research and development, manufacturation and sales. It has developed as the excellent one of the medium and small-size field display terminal suppliers.

We have been focused on customized TN/STN/FSTN/VA monochorome displays,as well as small to medium sized TFT displays and oled displays for about 17 years.

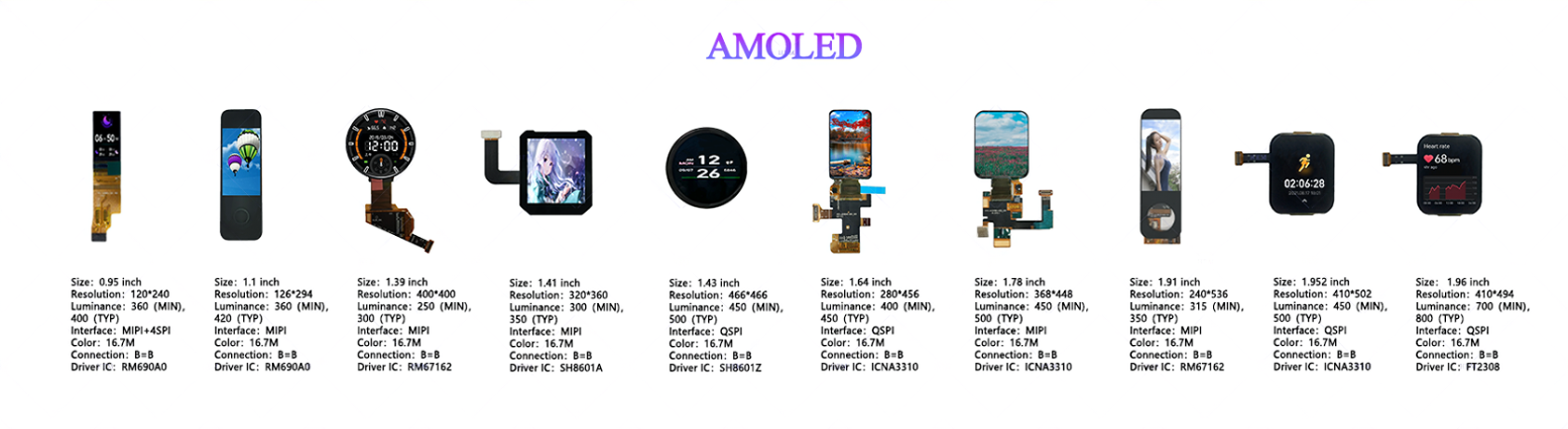

Amoled Series

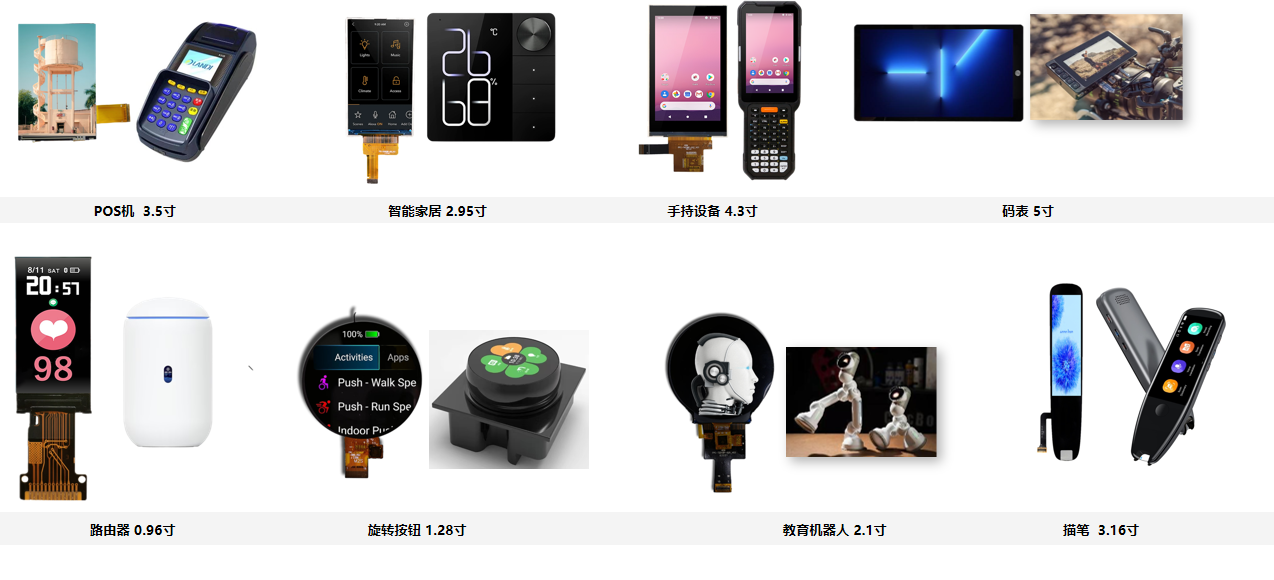

Product Application

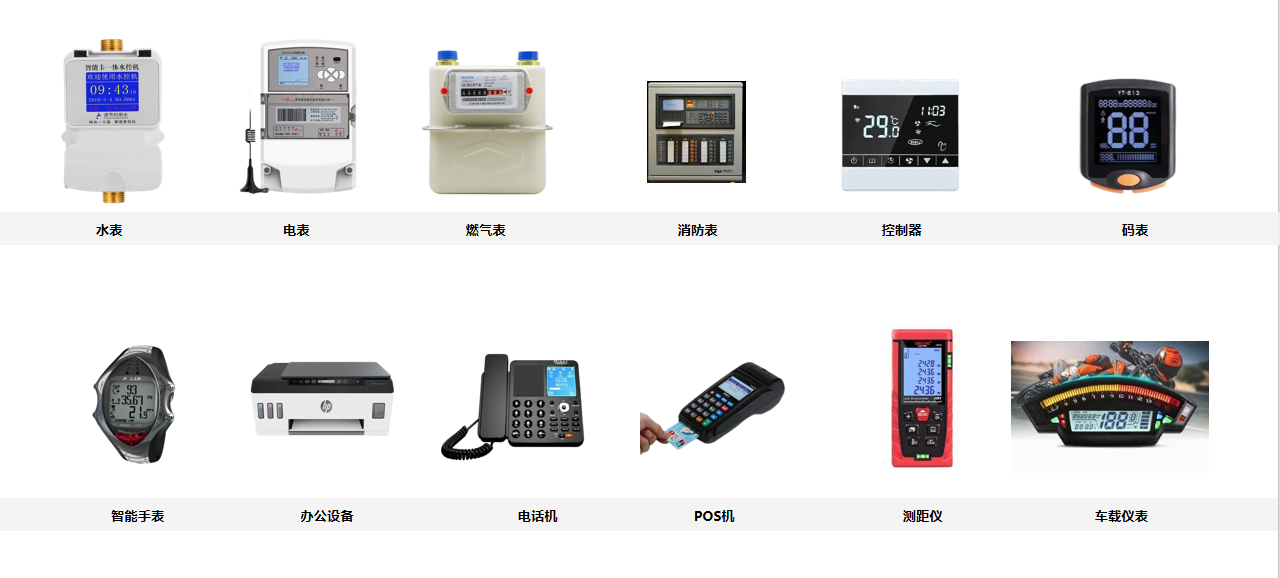

The application of monochrome products:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.




Manufacturing Capacity

The company has two complete monochrome liquid crystal production lines, more than a dozen automatic COG production lines, with COB, CTP full lamination of the full processing capacity. Has a professional R & D team, perfect quality control system, efficient executive management team and advocate innovation of the corporate culture. We guarantee that we can meet our customers' requirements both quantitatively and qualitatively.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.



Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system

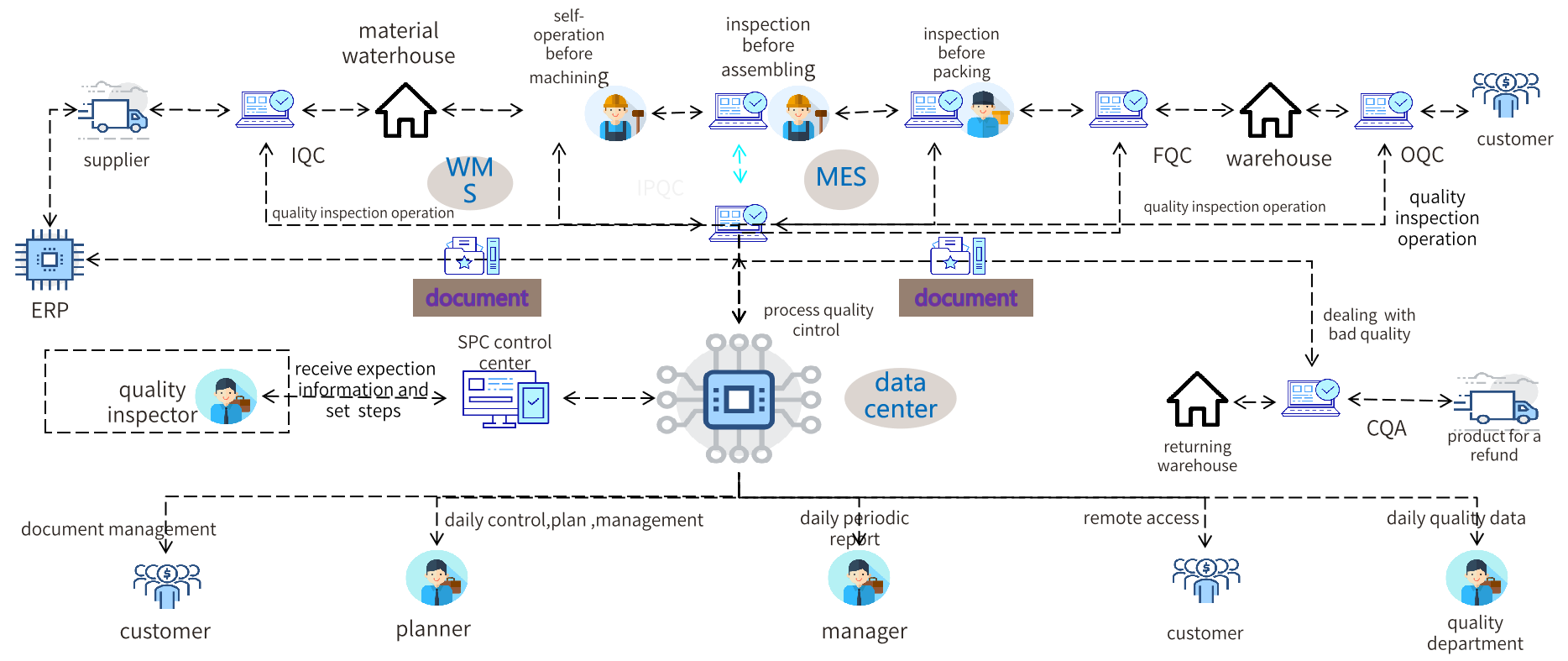

MES Quality Process Flowchart

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.




The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead

Huaersheng  invested 106,667 square meters display industrial park in 2022,which has the floorage of  12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ

1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place 1.39 inch sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for 1.39 inch TFT sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

Evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production

Related Suggestion

1.32 Inch Round Amoeld 466*466 QSPI Interface Custom Oled Display Module

Display Type:AMOLED Diagonal length:1.32 Dot Arrangement:466*466 Viewing Direction:Free Module size:36.35*36.35*0.5 Active Area:33.55*33.55 Driver IC:C05300 Power IC:BV6802W TP IC:FT6146-M00 Interface Type:QSPI Input Voltage:3.3V Operating Temp

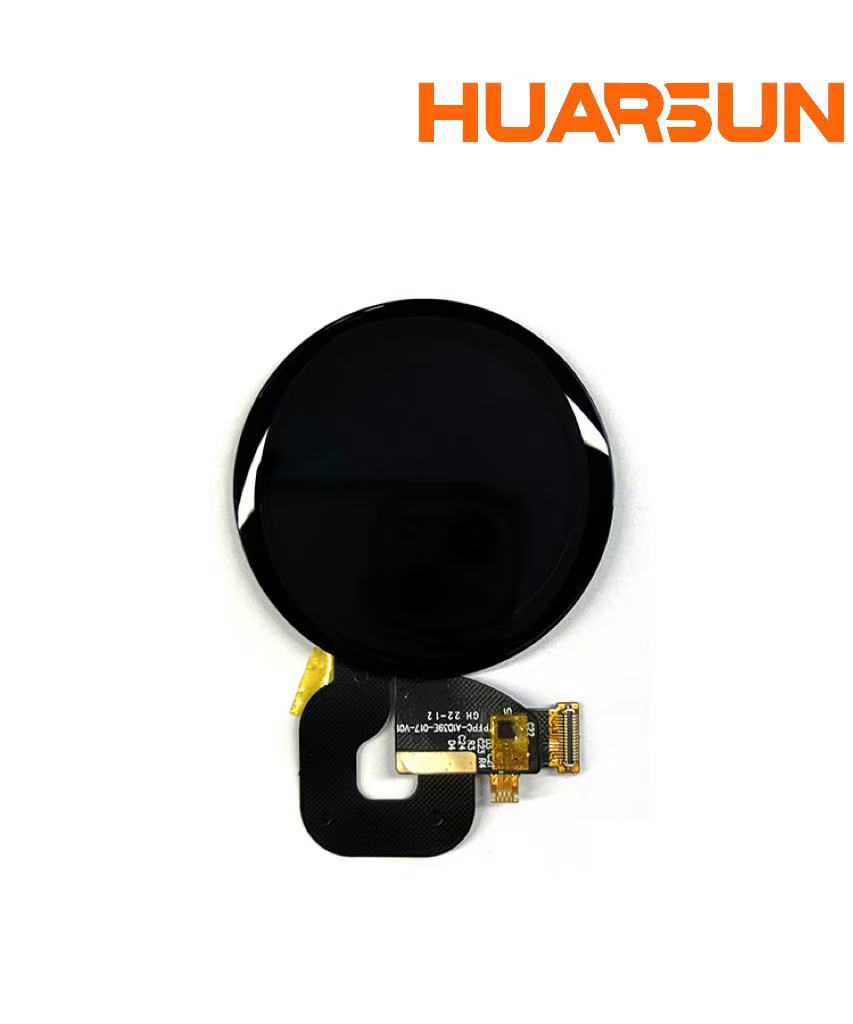

1.39 Inch Round Amoeld 454*454 QSPI Interface Custom Oled Display Module

Display Type:1.39’’ 454*454 LTPS-AMOLED(Oncell) Viewing Direction:80/80/80/80 Module size:44.50*44.50*2.22 Active Area:35.41*35.41 Driver IC:ICNA3310 TP IC:CST820 Interface Type:QSPI Operating Temp:-20℃ ~70℃ Storage Temp:-30℃ ~80℃ Luminance:400cd

AM1.95 Inch QSPI ICNA3310 Custom LCD Touch Screen

Display Type:ZC-A1D95E-022 Diagonal length:1.95 Dot Arrangement:410(R.G.B)*502 Viewing Direction:ALL Outline Dimension:35.04*43.68*3.51 Active area:31.37*38.40 Pixel size:0.0765*0.0765 Driver IC:ICNA3310 TP IC:CST820 Interface Type:QSPI Operatin

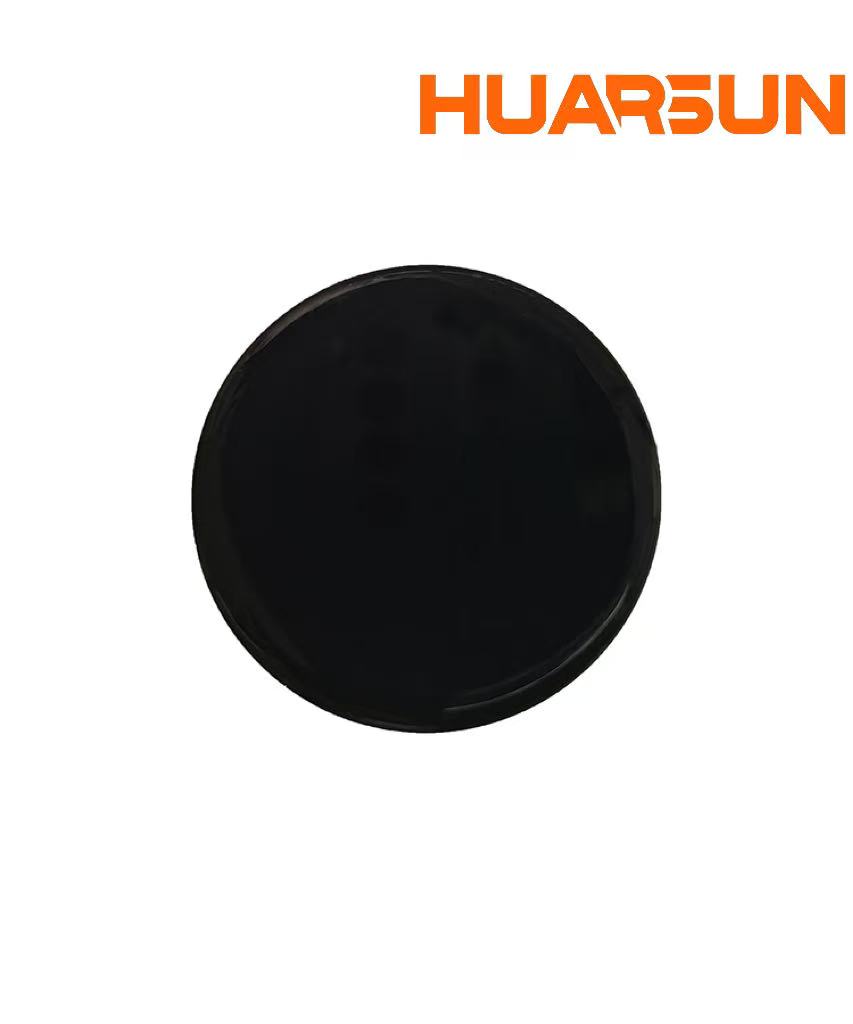

AM1.43 Inch 466*466 Dot CO5300 Drive IC QSPI 500cd/m2 Amoled Display

ZC-A1D43W-077B_V01 Display Type: 1.43" LTPS-AMOLED(Oncell) Application:smart watch

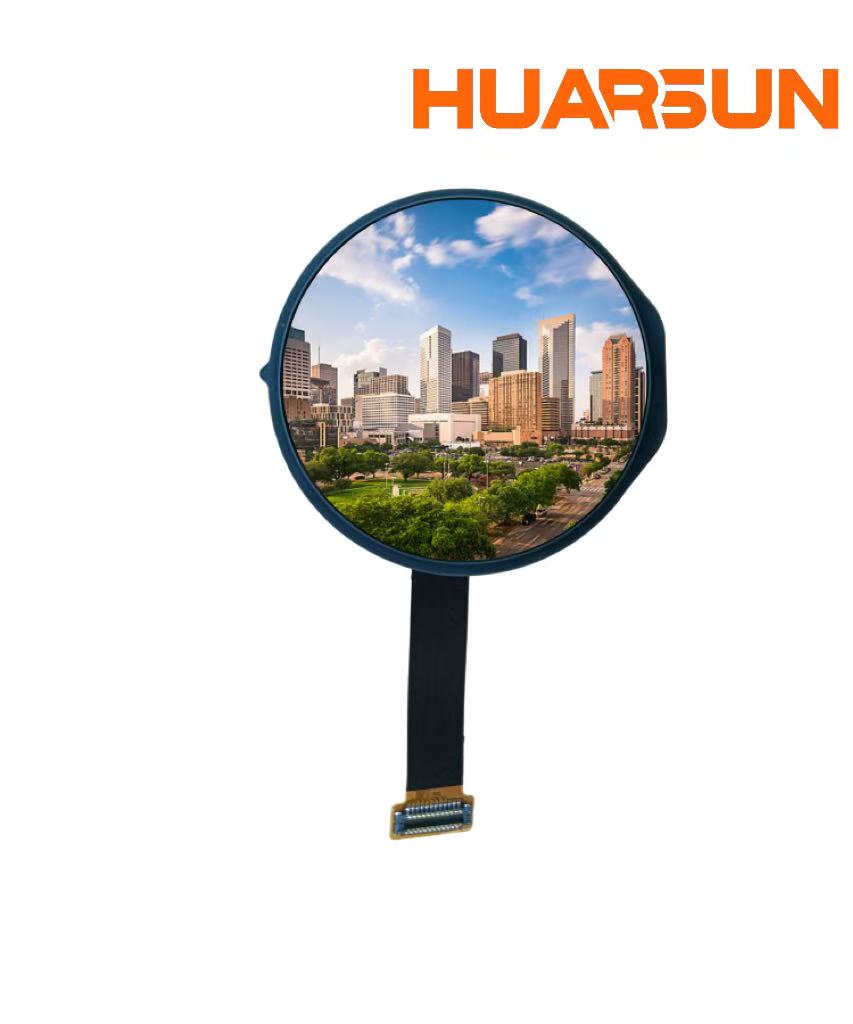

Amoled 1.19inch Small LCD Screen China Customized for Wearable Device

MD-A1D19E-008 Amoled Display with Operating/Storage Temprature 550cd/m Luminance China LCD Manufacturer with 18 Years

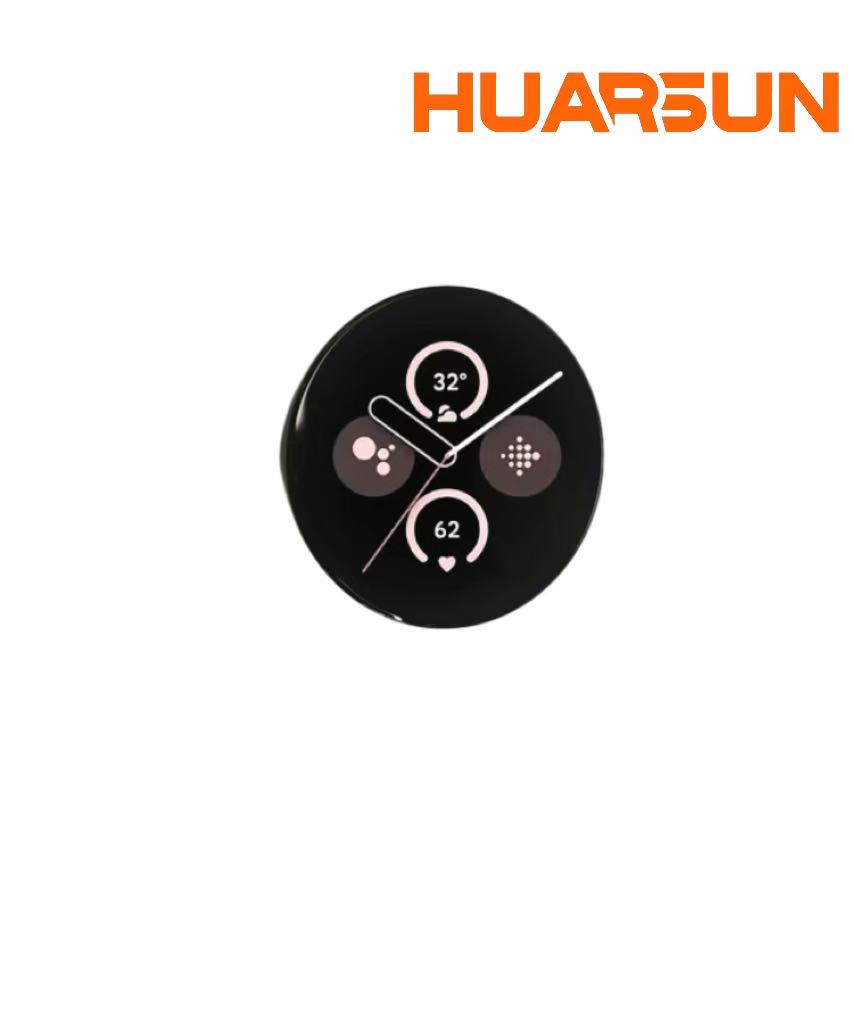

Hem Amoled Lcd Display 1.43inch Small LCD Screen Display China Wholesale Manufacturer for Wearable Device

MD-A1D43W-025E 1.43inch LCD Display Screen Support ODM China LCD Display Wholesale Price Display Supplier

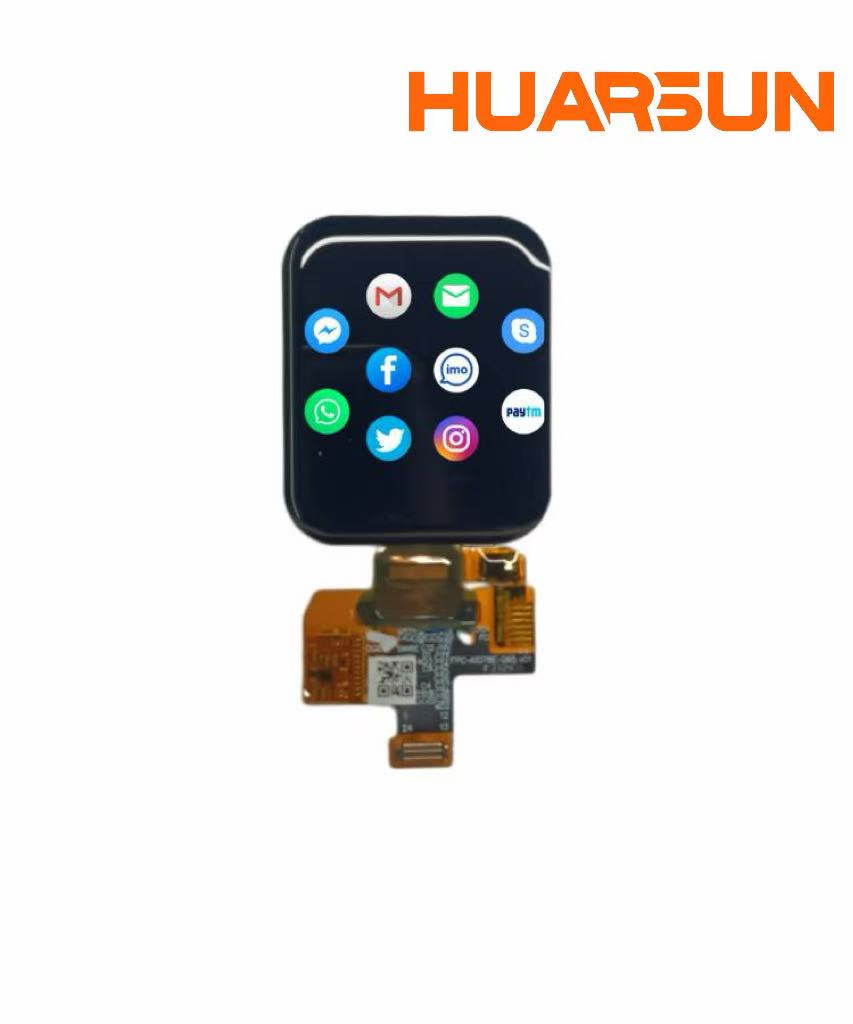

Hem Amoled Lcd Display Small Size 1.78inch China Wholesale Manufacturer for Wearable Device

A1D78E-065-V01 1.78inch LCD Display Screen Support ODM China LCD Display Wholesale Price Display Supplier

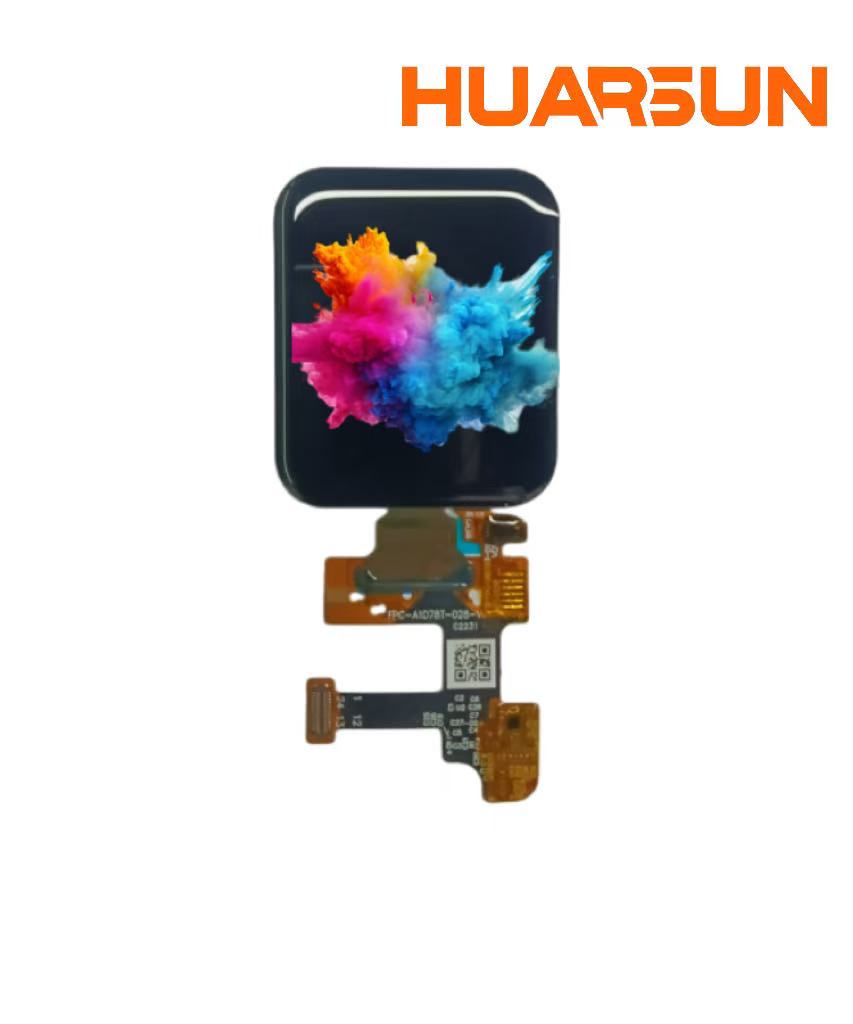

1.78inch Amoled Display QSPI Interface Small Size Wholesale Price for Electronic Consumer
