Custom Small LCD Modules for Smart Devices

When it comes to building smart devices, wearables, or embedded industrial solutions, choosing the right display module is key. In this blog, we’ll introduce the benefits of small-size monochrome LCD display modules (ranging from 0.39'' to 8''), explore the key application areas, answer frequently asked questions, and explain how our factory capabilities make us the preferred choice for global customers.

Why Small-Size LCD Display Modules?

Small-size LCD modules are ideal for compact electronic devices. From medical equipment and smart home devices to industrial control panels and payment terminals, these displays provide high clarity, low power consumption, and long-term stability.

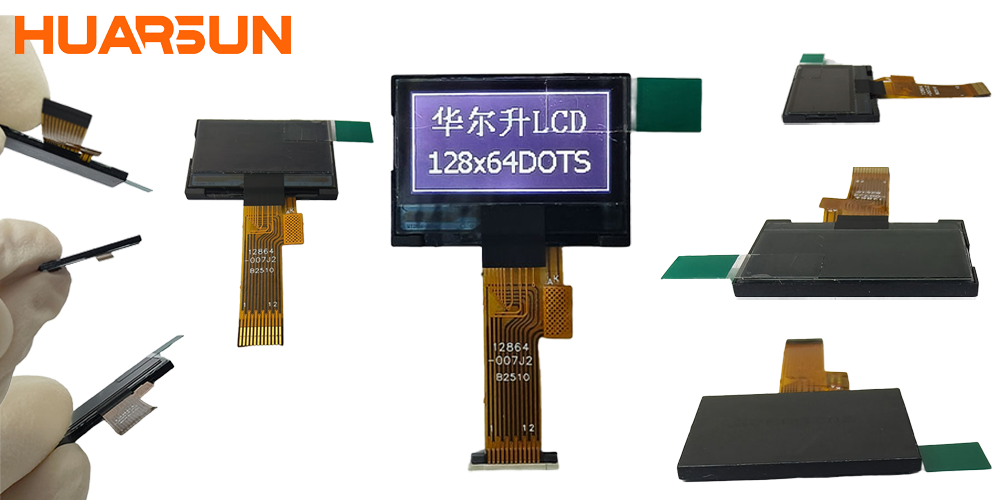

Key Features:

• Display Type: DFSTN/Negative

• Resolution: 128x64 dots

• Driver IC: ST7567A

• Connector: COG

• Voltage: VDD 2.8V, Vlcd 9V

• Operating Temp: -20℃~70℃

• Viewing Angle: 3:00 direction

• Size: 26.7 x 19.26 x 2mm (Outline), 21.744 x 10.86mm (Active Area)

Source Manufacturer Advantage

As a direct LCD module factory, we control the full supply chain — from raw materials to finished displays. We operate:

• Two complete monochrome LCD production lines

• Over a dozen automated COG production lines

• Full COB processing and CTP full lamination capabilities

We back our manufacturing with:

• A professional R&D team

• Strict quality control (MES system integrated)

• Rapid and reliable delivery

• ISO9001, ISO14001 certifications

• Recognized as a National Hi-tech Enterprise and key member of the Shenzhen Smart Wearable Device Association

Partnering with us means working with a team that delivers precision, scalability, and flexibility.

Where Can It Be Used? (Use Case Scenarios with Visual References)

1. Smart Thermostat Interface

• Description: A compact monochrome LCD embedded into the face of a home smart thermostat.

• Display Style: Shallow purple background with white font for time, temperature, and mode.

• Why It Fits: Low power, clear visibility in various light conditions.

2. POS Terminal (Payment Device)

• Description: Small-screen interface showing transaction details on a handheld payment device.

• Display Style: 128x64 white characters on light-purple screen.

• Why It Fits: Fast refresh rate, reliable display under frequent usage.

3. Industrial Data Collector

• Description: Mounted display module in a handheld instrument for field data collection.

• Display Style: Compact purple LCD showing readings, status, or mode.

• Why It Fits: Wide temperature range and rugged design ideal for tough environments.

4. Medical Equipment Panel

• Description: LCD embedded in a portable medical monitoring device.

• Display Style: White diagnostic data on a subtle violet screen.

• Why It Fits: Reliable voltage parameters and clarity required in hospital-grade tech.

LCD Display Knowledge Base (FAQ)

Q1: What is DFSTN?

A: DFSTN stands for Double Film Super Twisted Nematic. It's a type of monochrome LCD with enhanced contrast and wider viewing angles compared to standard STN.

Q2: What does COG mean?

A: COG (Chip On Glass) is a packaging technology where the driver IC is directly bonded to the glass of the display, making the module thinner and more integrated.

Q3: Can I customize the interface or shape?

A: Yes, we support OEM/ODM customization, including interface options (SPI, I2C), FPC shape, backlight color, and more.

Q4: How long does production take?

A: For standard products: 3–7 working days. For custom products: Typically 15–25 working days, depending on design complexity.

Q5: What makes your factory reliable?

A: We integrate MES systems to manage quality from incoming materials to outgoing inspection. Certifications like ISO9001, ISO14001 and Hi-Tech Enterprise status confirm our strength.

AMOLED, TFT & Monochrome Product Applications

• Monochrome LCD: Used in industrial control, home automation, vehicle dashboards, payment terminals, government devices

• AMOLED Display: Targeted at wearables, kids' education gadgets

• TFT Display: Deployed in smart home, medical devices, wearables, industrial HMIs, mobile payments

Get in Touch

Whether you're developing a wearable device or redesigning a smart thermostat, our experienced team will support your product journey with top-quality small-size LCD modules.
