Reliable 128x64 Monochrome LCD Module for Industrial and Medical Applications

In the world of industrial and medical electronics, clarity, reliability, and precision are non-negotiable. That’s where 128x64 monochrome LCD display modules have carved a niche. Especially in Europe and the U.S., where quality standards are high and demand is growing for efficient embedded displays, this reliable technology continues to be a preferred solution.

This article provides a complete overview of the 128x64 mono LCD display, its technical merits, applications, and—most importantly—why choosing a trusted manufacturer matters more than ever in today's competitive environment.

1. Why Choose Monochrome LCD Displays?

Unlike TFT or AMOLED color screens, monochrome LCDs are tailored for low-power, high-clarity environments. They are particularly effective in devices that don’t need rich visuals but require absolute legibility—such as lab analyzers, handheld terminals, and factory automation systems.

Benefits include:

• Low power consumption

• Superior contrast in daylight and indoor lighting

• High reliability under extreme temperatures

• Long lifecycle without degradation

And among all the standard sizes available, 128x64 resolution stands out as the sweet spot—offering sufficient space for icons, graphs, and characters in a compact footprint.

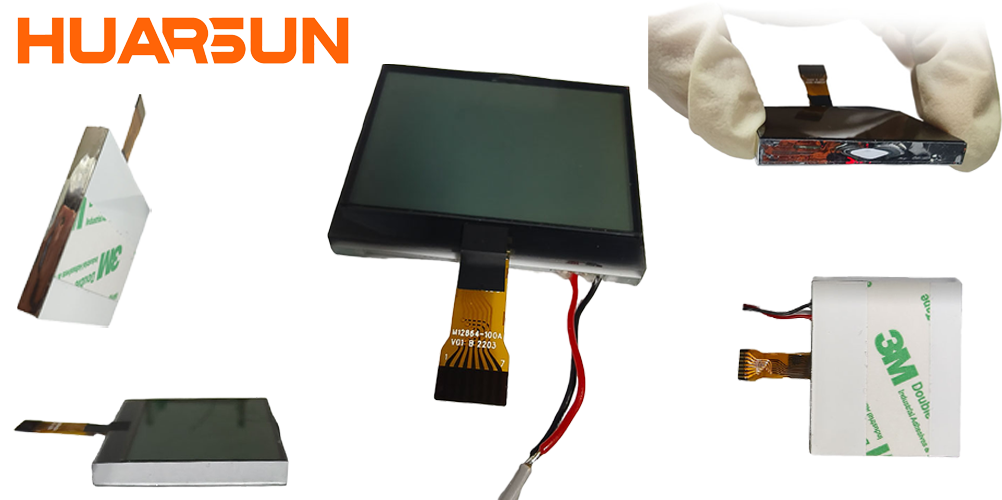

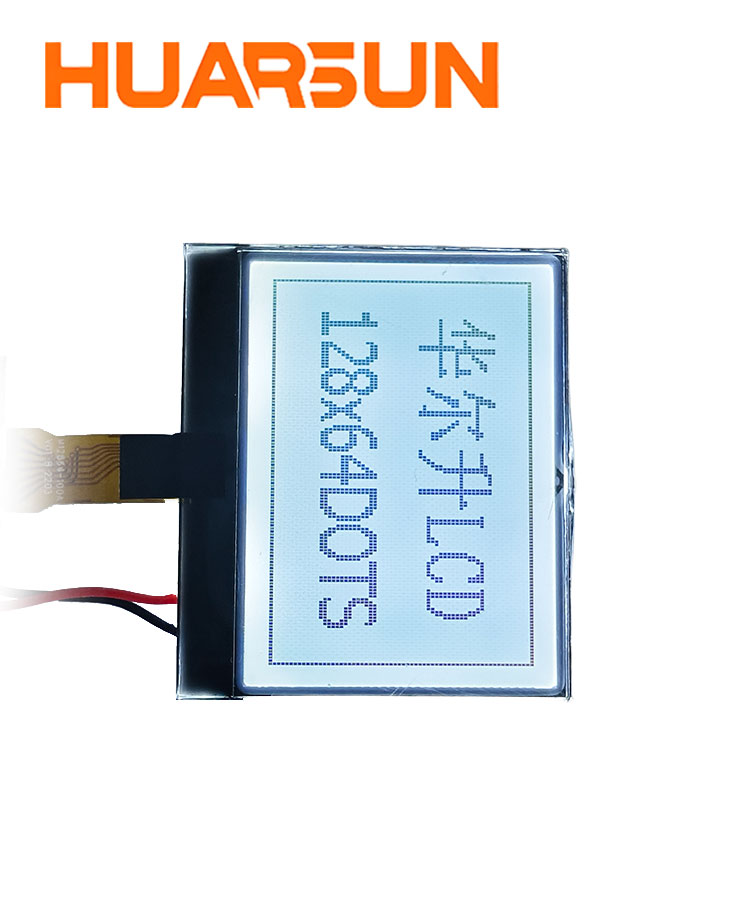

2. Technical Features of the 128x64 Monochrome LCD Module

A standard 128x64 monochrome LCD module typically comes with the following specifications:

• Display Resolution: 128 horizontal x 64 vertical dots

• Display Type: FSTN/VA/TN options

• Viewing Direction: Customizable (6 o’clock / 12 o’clock / VA full view)

• Polarizer Type: Transflective or transmissive

• Backlight Color: White, blue, yellow-green, red (custom available)

• Driver IC: ST7565, ST7920, UC1601, or compatible

• Interface: SPI, I2C, or 6800/8080 parallel

• Operating Voltage: 3.0V / 3.3V typical

• Operating Temp: -20°C to +70°C standard, extended range available

• Storage Temp: -30°C to +80°C

Mechanical customizations like connector pin layout, viewing window size, and thickness are also available on request.

3. Applications in the European and U.S. Market

The 128x64 mono LCD is widely used in applications such as:

Medical Devices

• Blood pressure monitors

• Glucose meters

• ECG displays

• Handheld diagnostic tools

Industrial Equipment

• Process controllers

• Measurement tools

• PLC interfaces

• Instrument clusters

Consumer and Automotive

• EV chargers

• Smart locks

• Thermostats

• Dashboard displays

Especially in Germany, France, the Netherlands, the U.S., and Canada, demand is strong for compact, durable, and affordable LCD panels that can be locally adapted to multilingual firmware.

4. Supply Chain Importance: Why Manufacturer Choice Matters

For European and American OEMs, LCD procurement is no longer just about pricing. It’s about:

• Stable production capacity

• Flexible MOQ and sample delivery

• Long-term availability for continuous production

• Customization capabilities

• Compliance with CE, RoHS, and REACH

Our company meets all these criteria.

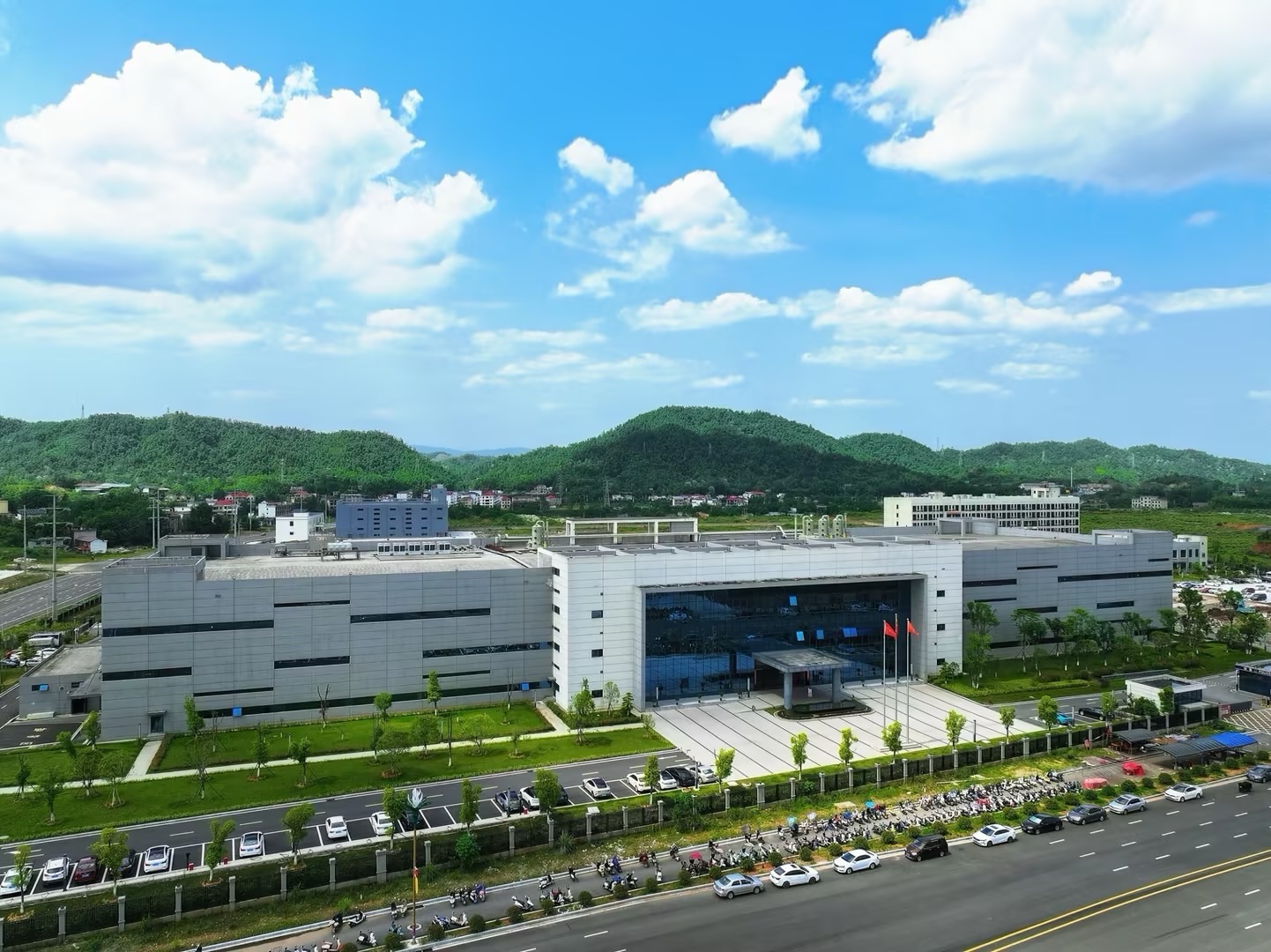

5. About Our LCD Manufacturing Capabilities

With 17+ years of focus on small and medium-sized LCD displays, we have grown into a trusted LCD supplier for global customers in the medical, industrial, and consumer sectors.

We currently operate:

• 2 full monochrome LCD panel lines

• 15+ automatic COG assembly lines

• Full COB and CTP full lamination capacity

• ISO9001-certified production and QC system

• 1200+ staff, including 180+ quality & technical engineers

We are among the few China-based manufacturers offering end-to-end service from panel glass cutting to finished module packaging—all under one roof.

6. Customization Options: Tailor Your 128x64 Display

Custom development includes:

• Adjusting glass size, shape, and thickness

• Custom backlight brightness and LED color

• Specific connector layout or FPC pinout

• Anti-reflective or anti-glare coating

• Voltage and timing optimization for existing firmware

• Adding capacitive or resistive touch panels

• Supporting logo printing on the backlight or PCB

For European and U.S. customers, we also provide custom housing suggestions and integration support, speeding up design-to-launch cycles.

7. Order Process Overview

Here's how we typically work with customers from sampling to mass production:

1. Customer sends spec/drawing/requirements

2. We recommend existing product or suggest customization

3. Confirm price, sample fee, and tooling cost

4. Within 3 working days: engineering drawings provided

5. Customer confirms drawings

6. Samples produced in 2-3 weeks

7. Testing, feedback, and revisions if needed

8. Small batch trial run (MOQ flexible)

9. Mass production within 4–5 weeks depending on quantity

We provide quick-response technical support throughout the project cycle.

8. Case Study: European Industrial Control System

A German industrial electronics firm approached us for a custom 128x64 display with:

• 12 o’clock viewing angle

• White backlight

• COG package with ST7565

• Custom FPC connector

Within 30 days, we delivered production-ready samples, and the project moved to mass production with 3,000 pcs per month. The client praised our:

• Engineering collaboration

• Clear drawing communication in English

• Consistent quality

• Fast logistics to Hamburg and Rotterdam

9. Certification and Quality Assurance

• CE and RoHS compliant

• REACH material declaration available

• 100% functional test before shipment

• Custom inspection criteria accepted

• AQL standards followed for batch QC

If your project requires EN 60601 medical compliance, we can also work with your engineering team to adapt the display module.

10. Partner with Us – What You Get

• Factory-direct pricing

• Multilingual support (English, Japanese, German-speaking reps available)

• 1-on-1 engineer support for custom design

• Transparent project schedule

• No hidden charges

• Long-term availability guarantee

We support both startup teams and high-volume product manufacturers. Whether you need 100 pieces or 100,000, we deliver the same commitment to quality and service.

Conclusion

The 128x64 monochrome LCD module is a classic, proven solution with ongoing relevance in modern product design. For manufacturers in Europe and North America seeking a dependable, cost-effective, and customizable LCD supplier, our factory is a trusted partner—offering one-stop service from design to delivery.

Let us help you find the right display for your project.
Contact us today for a quotation, sample, or technical consultation.
