3.95 Inch High Brightness TFT LCD Panel Display with Smart Home
3.95 Inch High Brightness TFT LCD Panel Display with Smart Home
3.95 Inch High Brightness TFT LCD Panel Display with Smart Home
3.95 Inch High Brightness TFT LCD Panel Display with Smart Home

3.95 Inch High Brightness TFT LCD Panel Display with Smart Home

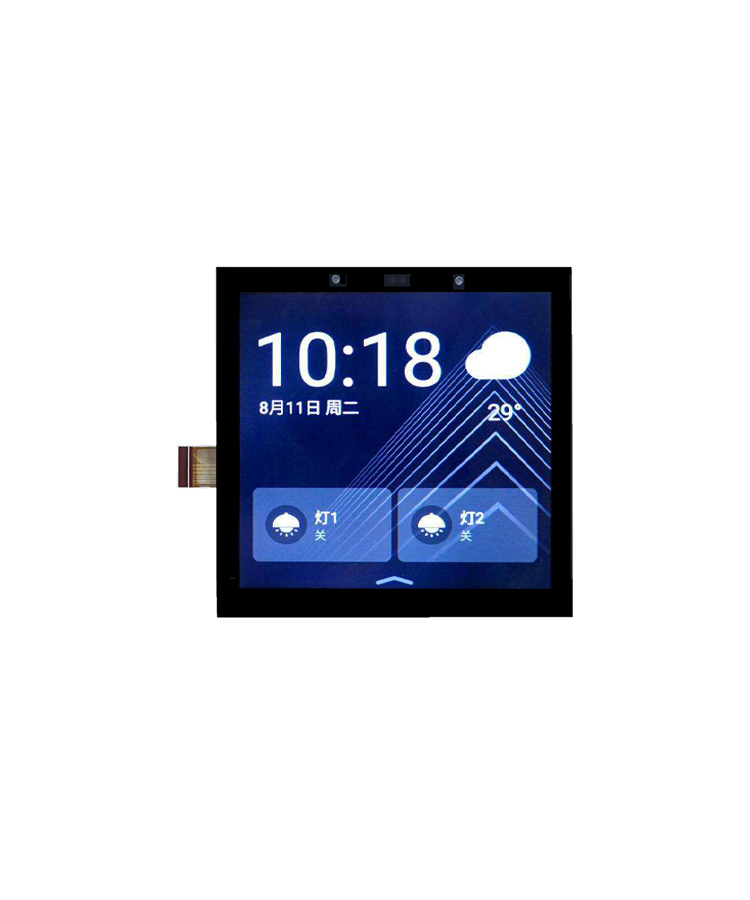

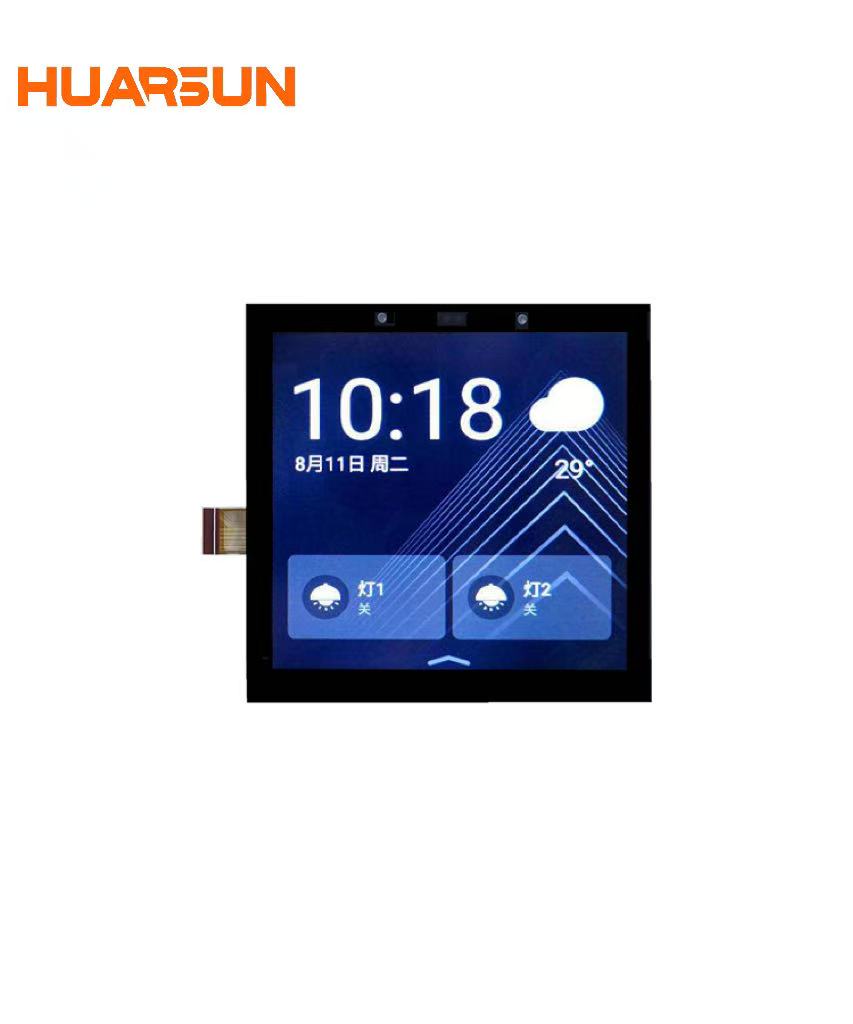

HEM-3.95 inch TFT Transmissive Module LCD Size:3.95inch Panel Type: IPS Resolution: 480*480 Display Mode:Normally Black Color:16.7M Viewing Direction: Free Luminance: 300cd/m2 Module Size: 85.80*86.00*3.35  Active Area: 71.86*70.13 Pixel Pitch
LCD Size:3.95inch
Panel Type: IPS
Resolution: 480*480
Display Mode:Normally Black
Color:16.7M
Viewing Direction: Free
Luminance: 300cd/m2
Module Size: 85.80*86.00*3.35
Active Area: 71.86*70.13
Pixel Pitch: 0.108*0.108
Pixel Arrangement: RGB Vertical Stripe
Weight:TBD
Driver IC:ST7701S
Light Source:8 white LEDs in 4S2P
Interface:MIPI
Operating Temperature:-20-+70℃
Storage Temperature:-30-+80℃

Email:cenni@hemlcd.com

Product Details



HEM-3.95 Inch High Brightness TFT LCD Panel Display with Smart Home
LCD Size 3.95inch
Panel Type IPS
Resolution 480*480
Display Mode Normally Black
Color 16.7M
Viewing Direction Free
Luminance 300cd/m2
Module Size 85.80*86.00*3.35
Active Area 71.86*70.13
Pixel Pitch 0.108*0.108
Pixel Arrangement RGB Vertical Stripe
Weight TBD
Driver IC ST7701S
Light Source 8 white LEDs in 4S2P
Interface MIPI
Operating Temperature -20-+70℃
Storage Temperature -30-+80℃





1.What kinds of display does HEM have? HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display. 2.How can I find the right product? Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization. 3. Do you accept sample order or small quantity order? Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ) 4.What’s the lead time? Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product). 5.What’s your order process? evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production






Product Application

lcd 126x294 manufacturer

We has been focused on customized TN/STN/FSTN/VA monochorome displays.
monochrome products' application:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

lcd screen application

The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.



Manufacturing Capacity

We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.



Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system



MES Quality Process Flowchart

quailty process lcd module






The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead

Huaersheng  invested 160 mu display industrial park in 2022,which has the floorage of  12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ

1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
