1.4-Inch 240x240 IPS TFT LCD Display Module | SPI Interface

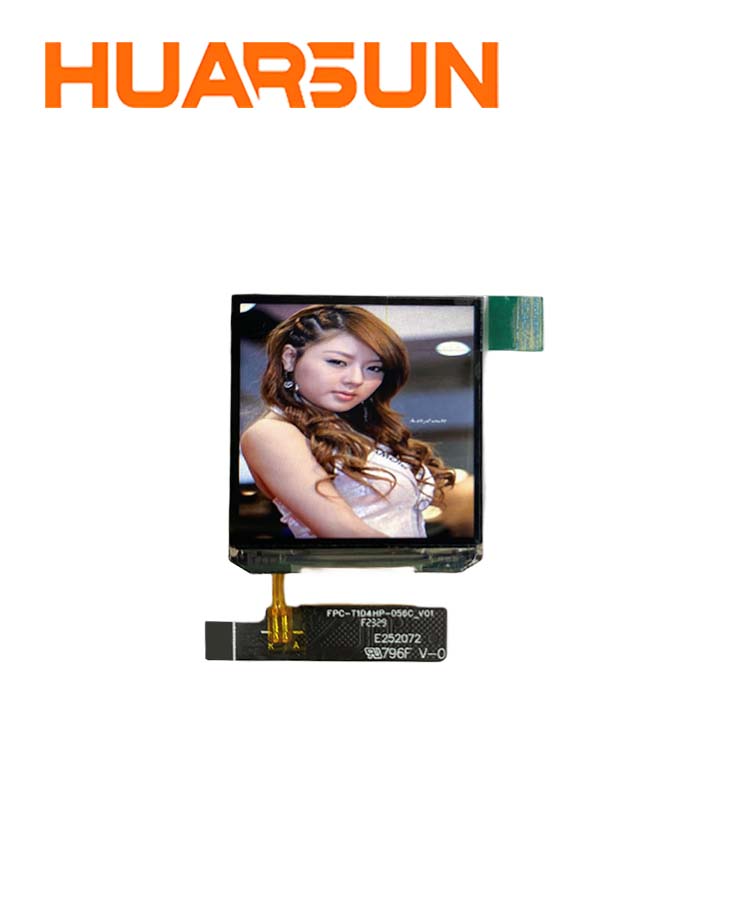

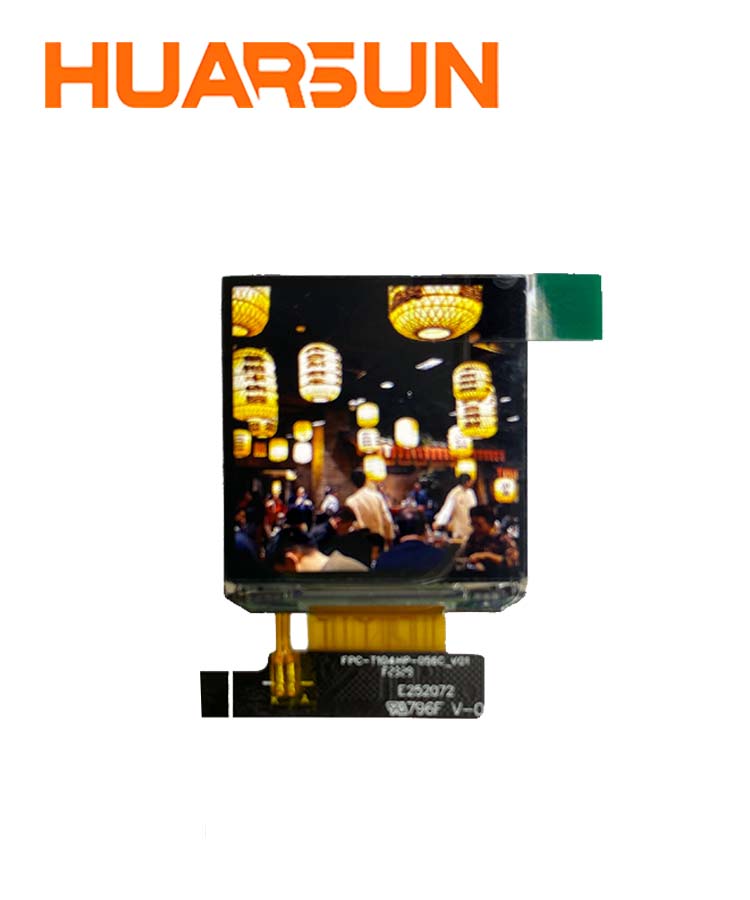

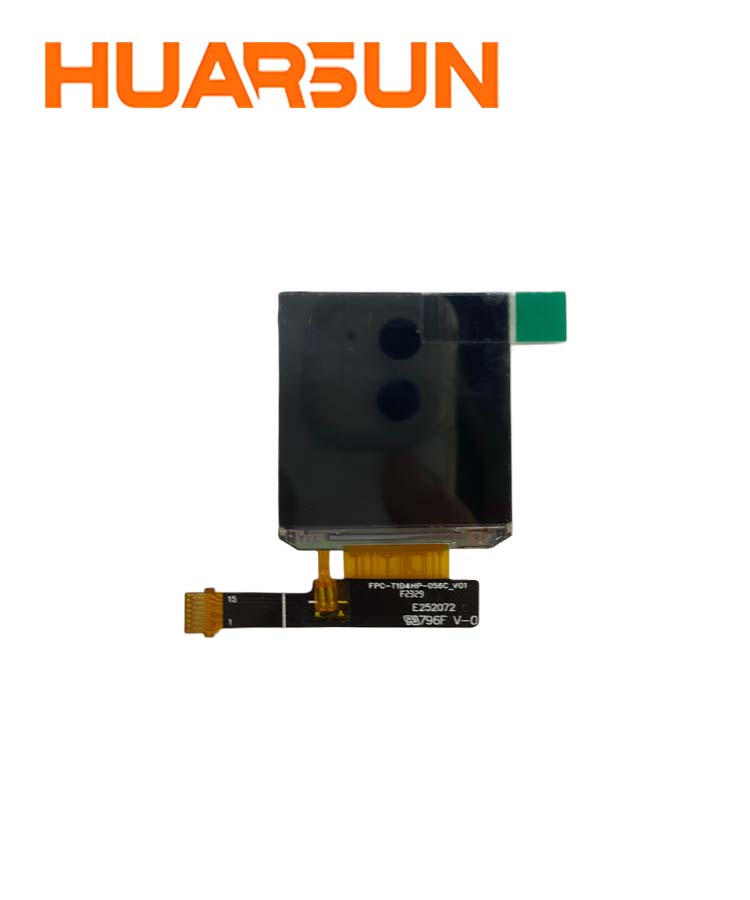

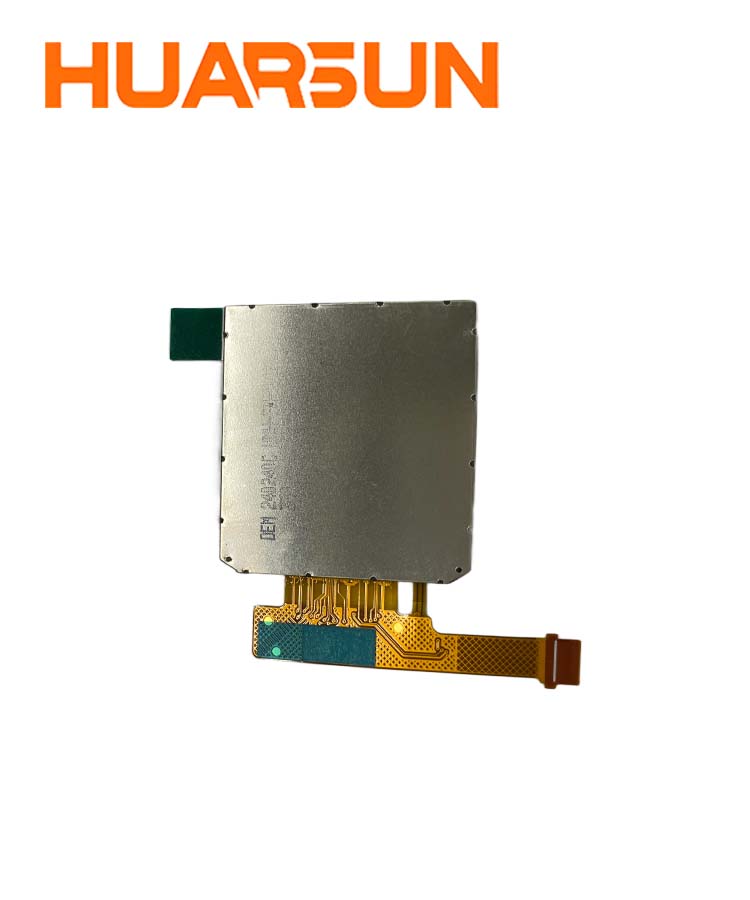

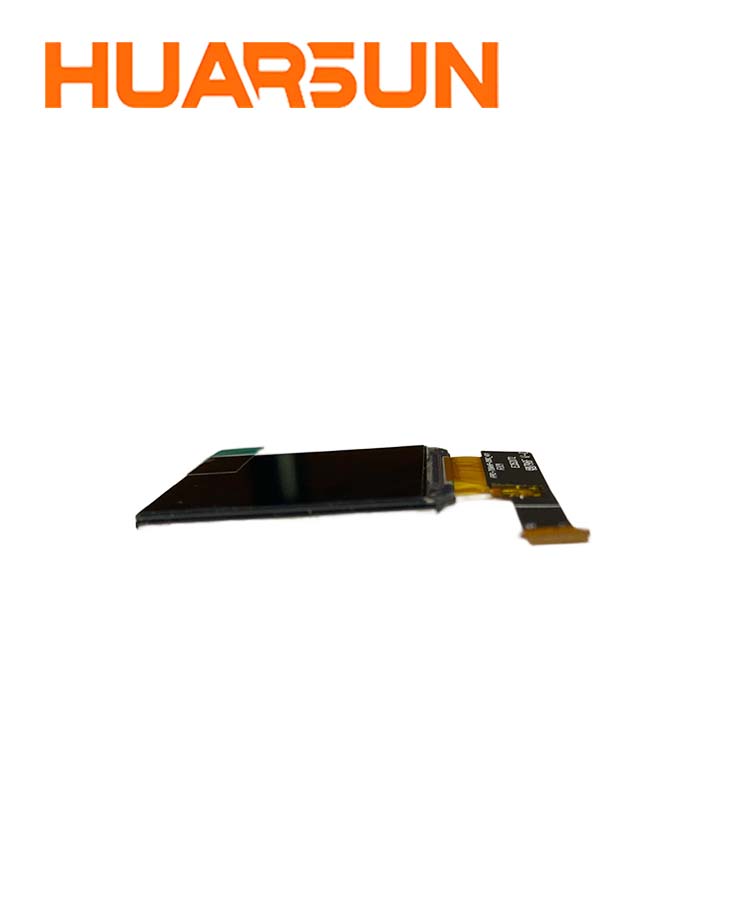

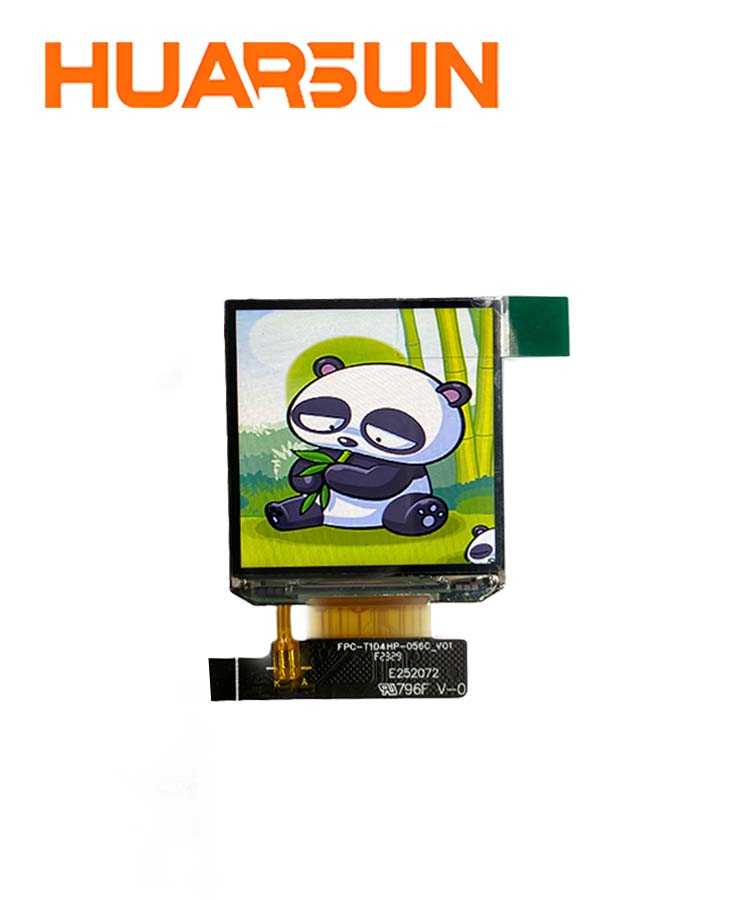

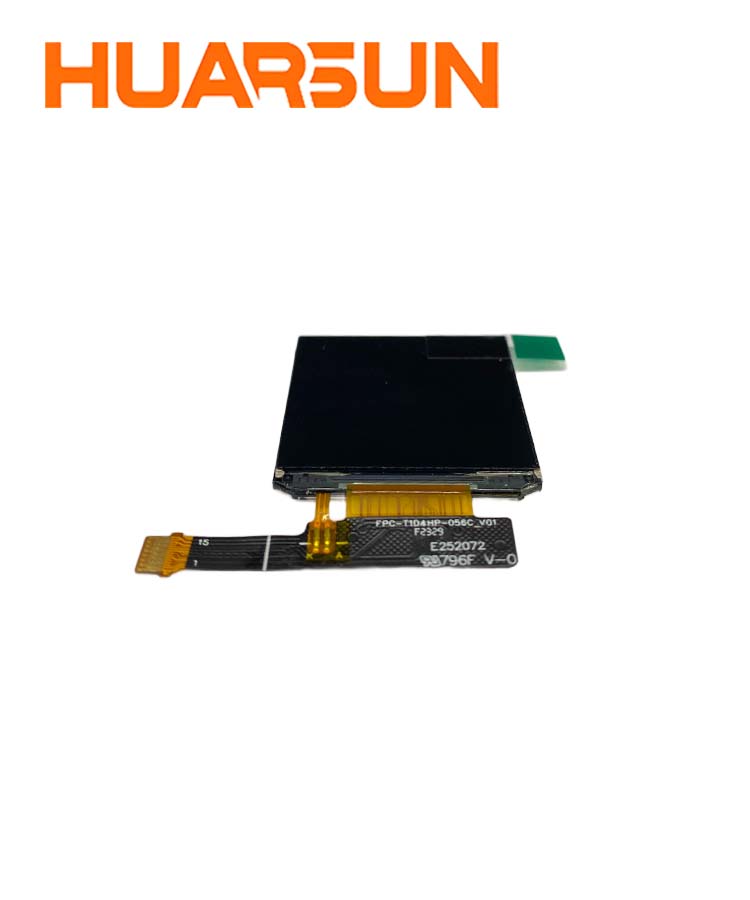

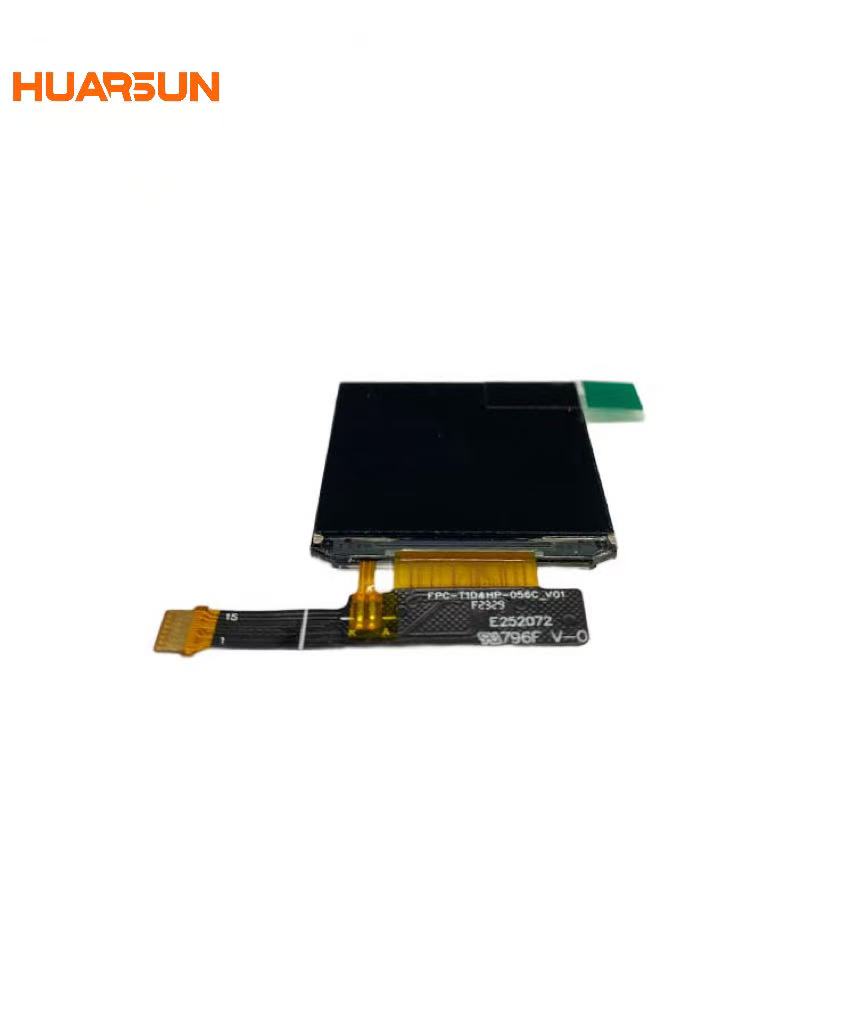

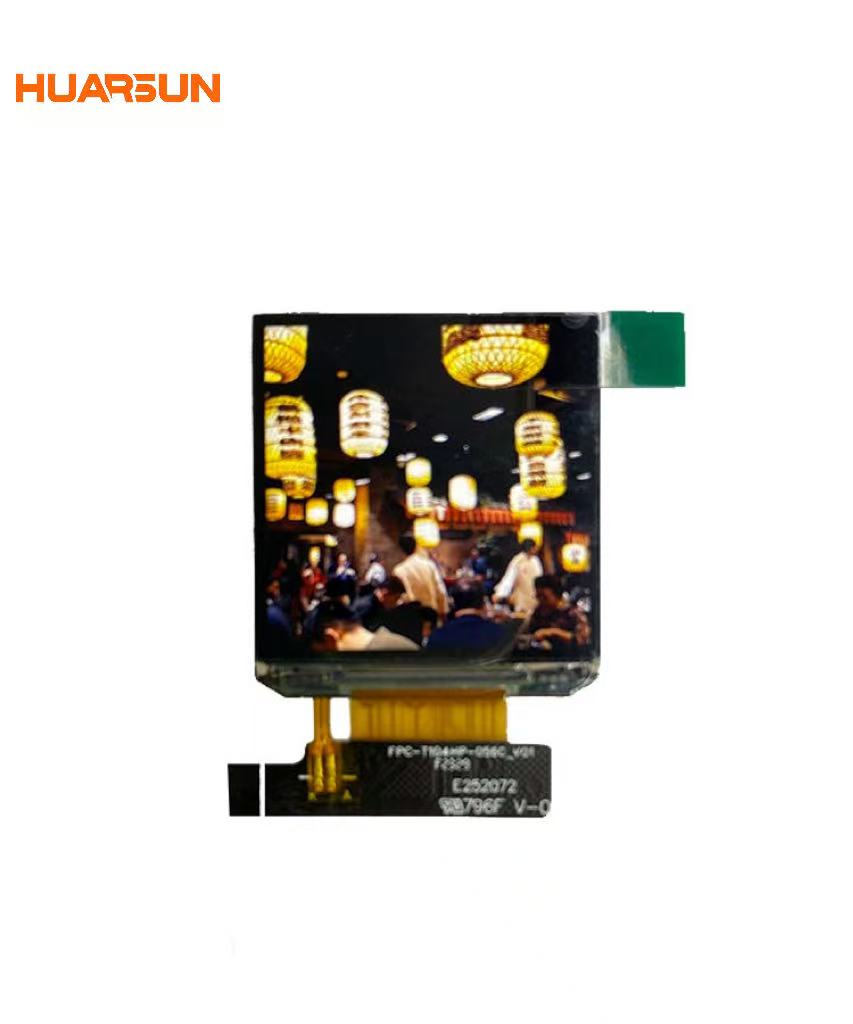

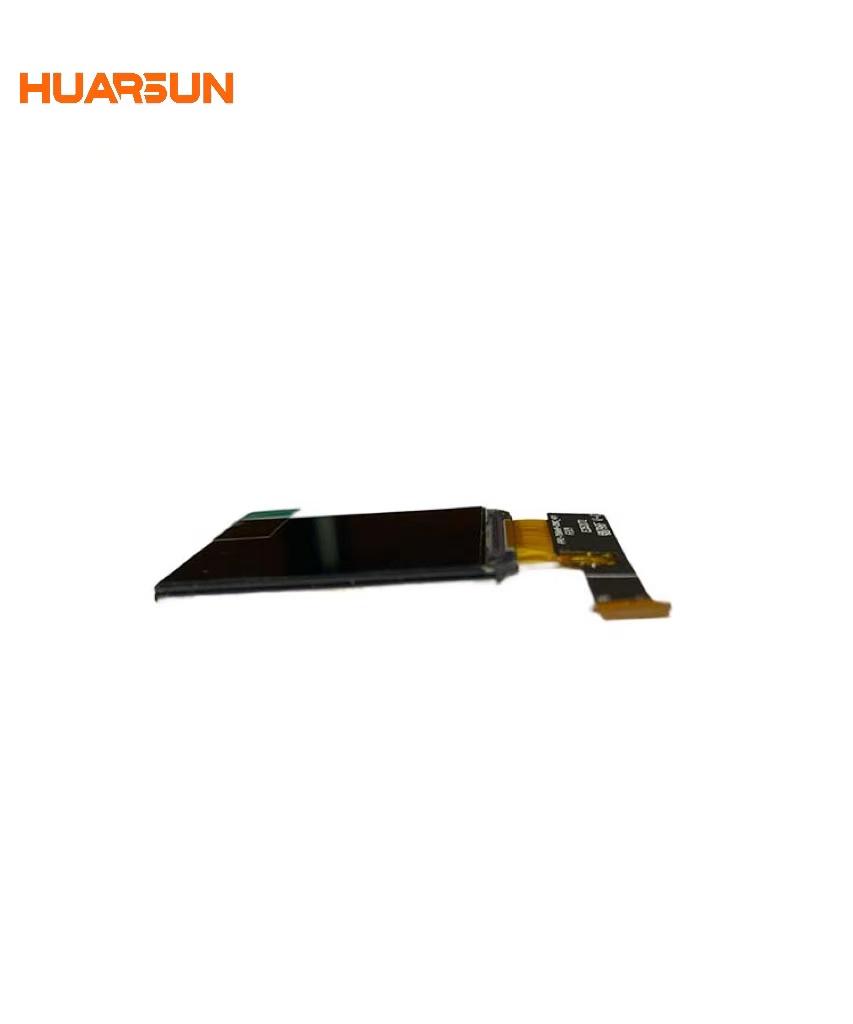

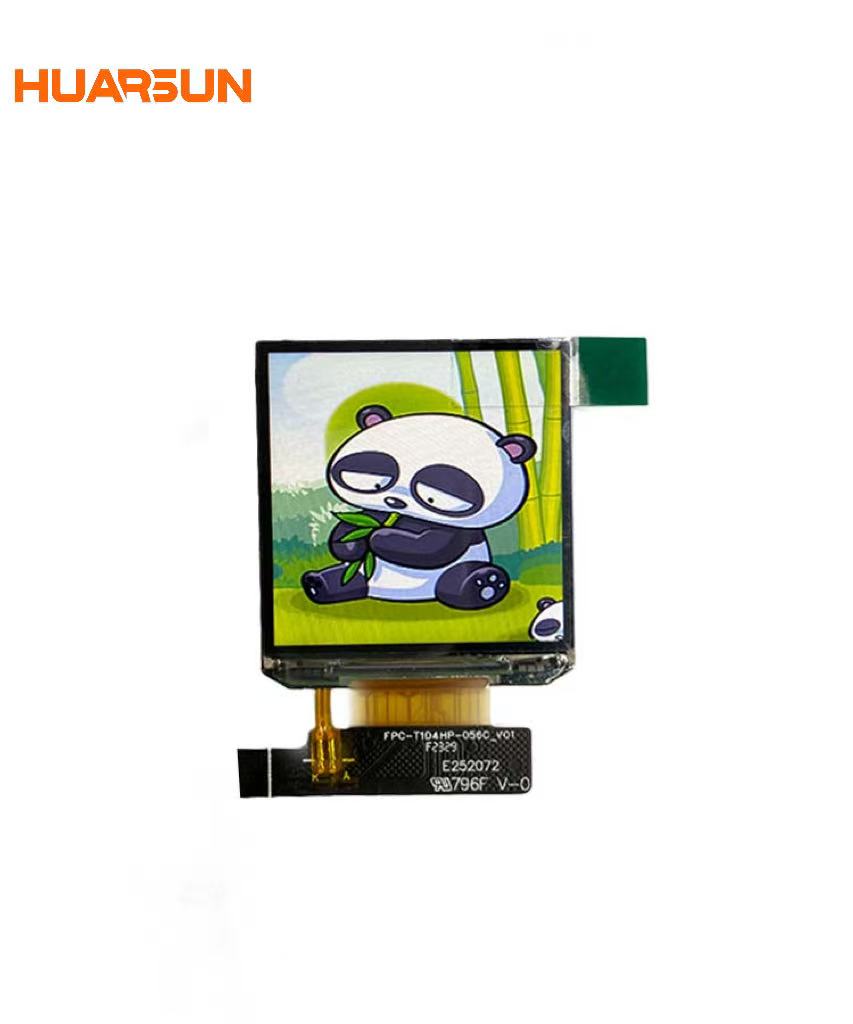

HUARSUN 1.4-Inch IPS TFT LCD Display | 240x240 Resolution | SPI Interface | ST7789P3 Driver IC

Display Type

IPS TFT LCD

Diagonal Length

IPS TFT LCD

Viewing Direction

All View / Full Viewing Angle (IPS)

Dot Arrangement

240 (RGB) × 240

Module Size(W*H*T)

27.4 × 30.23 × 1.61 mm

Active Area(W*H)

24.35 × 24.35 mm

Driver IC

ST7789P3

LED number/connection method/current

3 LEDs / Serial / 60mA (typical)

compliant with certification

RoHS compliant

Interface Type

4-wire SPI

Operating Temp

-20°C to +60°C

Storage Temp

-30°C to +70°C

Luminance

550 cd/m² (typical)

Key features include:

Size: 1.4 inch
Resolution: 240×240 RGB pixels
Interface: SPI (4-wire)
Brightness: 550 cd/m² (typical)
Viewing Angle: Full IPS
Driver IC: ST7789P3
Backlight: 3 white LEDs, 3.2V
Operating Temp: -20°C to +60°C
Module Size: 27.4 × 30.23 × 1.61 mm

Boost your embedded design with our high-performance 1.4-inch TFT display module.
The LCM-T1D4HP-056C features a 240x240 pixel resolution, IPS wide viewing angle, and 4-wire SPI interface, powered by the ST7789P3 driver IC. With a typical brightness of 550 cd/m², it delivers vivid colors and excellent visibility, even in ambient light.

This compact module is ideal for:

Smart home control panels
Medical equipment displays
Wearable devices
Industrial handheld terminals
Portable monitoring systems

With RoHS compliance, customizable FPC design, and stable supply, this module meets the needs of diverse TFT LCD applications from medical to industrial.

1.4 inch TFT display

IPS TFT LCD module

ST7789P3 driver display

Industrial control LCD panel

Smart home TFT screen

Medical device LCD

What is TFT display module?

TFT display modules are liquid crystal display panels integrated with thin-film transistor (TFT) technology, bonded with a driver IC, backlight unit, and flexible FPC cable. Some models may also include a control board with different interface options. As active matrix displays, TFT modules offer higher contrast and better color performance than traditional monochrome LCDs. With full RGB color rendering, high resolution, and wide viewing angles, TFT LCD modules deliver rich colors, detailed images, and sharp, bright graphics.

At HEM, we provide a wide range of small-size TFT LCD display modules. Our standard product lineup covers active areas with diagonal sizes from:

0.96”, 1.05”, 1.09”, 1.14”, 1.28”, 1.32”, 1.4”, 1.47”, 1.69”, 1.72”, 1.91”, 2.0”, 2.4”, 2.8”, 3.5”, 4.3”, 5.0”, up to 7.0”.

These modules are suitable for a wide range of applications, including wearables, smart home systems, industrial control, and medical equipment. Typical use cases include:

Smart watches, fitness bracelets
Video phones, POS terminals
Kitchen displays, coffee machines
IoT control panels, cooking devices
Diagnostic tools and portable medical instruments

All HEM TFT LCD modules follow industrial-grade quality standards. We carefully select raw materials to ensure long-term reliability and durability in demanding environments.

Our product lineup includes:

Standard TFT LCD modules
IPS TFT displays for wide viewing angles
Transflective and reflective TFT LCDs
Wide-temperature range displays
Round and bar-type TFT screens
Optional Resistive Touch Panels (RTP) and Capacitive Touch Panels (CTP/PCAP)

Available interfaces include: MCU, RGB, TTL, LVDS, MIPI, SPI, and I²C, covering resolutions from 80×160, 240×240, 320×380, up to 720×1280 and 1024×600.

Whether for consumer electronics, medical terminals, or industrial applications, HEM's TFT LCD modules offer stable performance, flexible design options, and long-term supply support.

Our Products

We specialize in LCD display technology, offering a full range of solutions including monochrome LCD modules, TFT LCD modules, and AMOLED display modules. As a recognized national high-tech enterprise, we integrate independent R&D, manufacturing, and global sales, positioning ourselves as a leading supplier of medium and small-size display terminals.

With nearly 17 years of industry experience, we are deeply focused on the development and customization of:

TN/STN/FSTN/VA monochrome LCD displays
Small to medium-sized TFT LCD modules
OLED/AMOLED display modules

Through continuous innovation and reliable product quality, we have grown into one of the most competitive and trusted display solution providers in the industry.

Product Application

Monochrome LCD modules are widely used in industrial control systems, smart home interfaces, automotive dashboards, office equipment displays, and mobile payment terminals.
We offer full customization options to support tailored product family designs based on customers’ specific requirements, including display type, shape, interface, and backlight configuration.

Our custom monochrome solutions have been adopted by clients across various industries for their low power consumption, high reliability, and cost-efficiency.

lcd 126x294 manufacturer

TFT LCD modules are widely applied in smart wearables, children’s educational devices, smart home systems, industrial control panels, medical equipment, and mobile payment terminals.
Their vibrant color display, high resolution, and fast response time make TFT displays ideal for user interfaces that require clarity, interactivity, and visual appeal.

lcd screen application

Manufacturing Capacity

We operate two complete monochrome LCD production lines, along with over a dozen fully automated COG (Chip-on-Glass) production lines, and possess full in-house capabilities for COB (Chip-on-Board) and CTP full lamination processing.

Backed by a professional R&D team, a well-developed quality control system, a highly efficient management team, and a pro-innovation corporate culture, we are committed to delivering both high-quality and high-volume LCD solutions.

We strive to exceed customer expectations by consistently meeting their requirements for quality, quantity, and delivery timelines.

LCD：2production lines 、370mm*470mm panel、production capacity 60K/Mark/M

COG: 13full-automatic production lines、0.5'' -8”modules、production capacity 5KK/M

COF：5full-automatic production lines、 0.5”-8”modules、production capacity 1.0KK/M

Team：1200people in total, 60technicians,80 people in quality department.

Quality Assurance

Reliability Test Equipment: 17

Quality Inspection Equipment: 230

Quality Assurance System: MES system, ERP system

MES Quality Process Flowchart

quailty process lcd module

A MES (Manufacturing Execution System) quality process flowchart is a visual representation of the steps involved in the manufacturing process, from raw materials to finished products, with a focus on quality control.Overall, the MES quality process flowchart helps to ensure that the manufacturing process is carried out efficiently and effectively, with a focus on quality control and customer satisfaction.

The Honor of Enterprise

Intelligent Display Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.

Location

Shenzhen Operation Center

Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai of Jiangxi Province.

Looking ahead

Huaersheng invested 106,667 square meters display industrial park in 2022,which has the floorage of 12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG full-automatic AMOLED production lines.

FAQ

1. What is the resolution of the 1.4-inch TFT LCD module?

The module has a resolution of 240x240 RGB pixels, providing sharp and clear image display in a compact size.

2. What interface does this display use?

It uses a 4-wire SPI interface, which is widely supported by most microcontrollers and embedded systems.

3. What is the viewing angle of the display?

The module adopts IPS technology, offering full viewing angles (left-right and up-down) with no color distortion.

4. What is the typical brightness of this screen?

The display delivers 550 cd/m² (typical) brightness, suitable for use in both indoor and outdoor environments with ambient light.

5. Which driver IC does this module use?

It is integrated with the ST7789P3 driver IC, a commonly used and reliable controller for small TFT displays.

6. What devices or applications is this display suitable for?

This module is ideal for:

Smart home control systems
Wearable devices (e.g., smartwatches)
Medical monitors
Industrial handheld terminals
Portable testing or monitoring equipment

7. Can I customize the FPC or backlight?

Yes. We offer custom FPC design, backlight configurations, and connector options upon request for volume orders.

8. What is the module's operating temperature range?

The display operates reliably from -20°C to +60°C, suitable for both indoor and semi-outdoor use.

9. Is the module RoHS compliant?

Yes, the module is RoHS compliant and meets environmental standards for electronics.

10. Do you offer technical support and datasheets?

Yes, we provide datasheets, drawing files, and technical support to help you integrate the module into your product smoothly.

11. What is the lead time and minimum order quantity (MOQ)?

Lead time and MOQ depend on stock and customization needs. For standard models, we often support low MOQ with fast delivery.

12. Can I get a sample for testing?

Absolutely. We support sample orders for testing and evaluation before mass production.

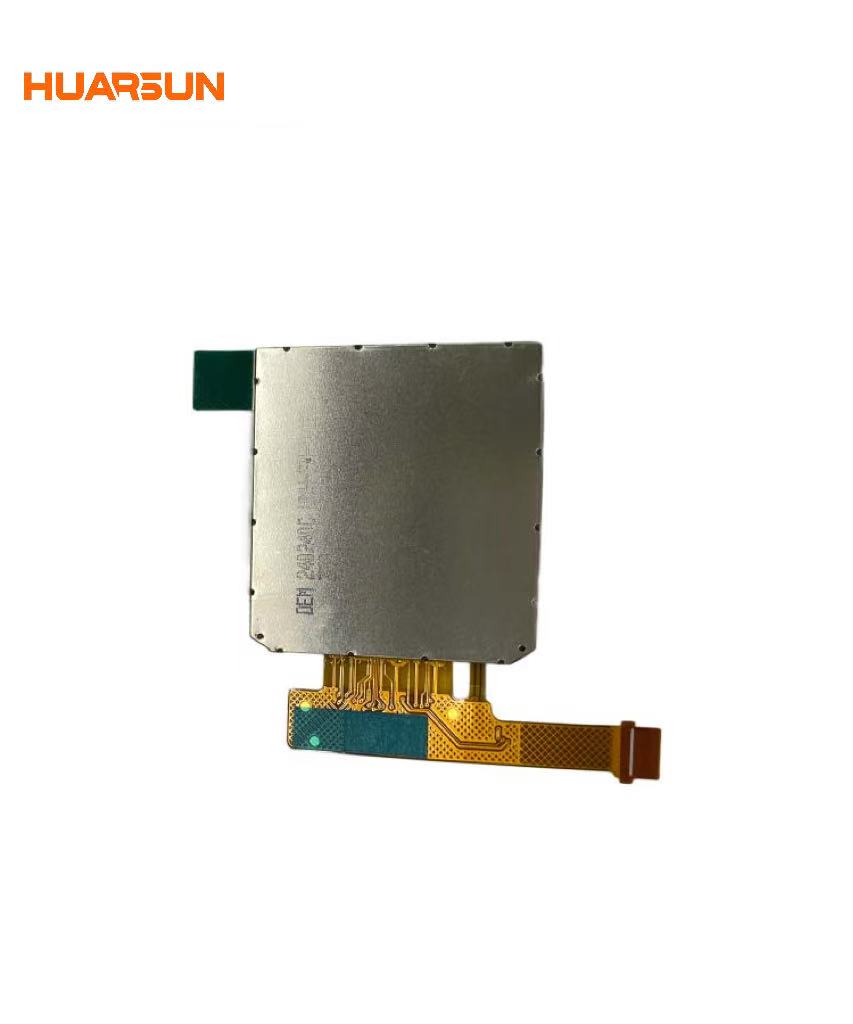

1.4-Inch IPS TFT LCD Display | 240x240 Resolution | SPI Interface | ST7789P3 Driver IC
