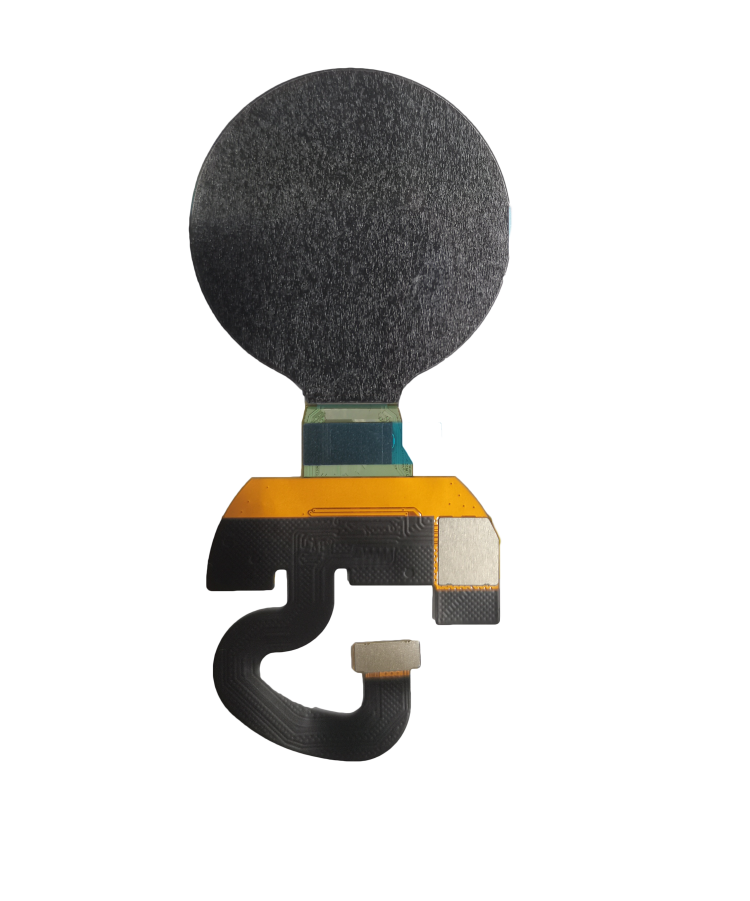

HEM-1.3 inch OLED Module
1. Display Type: AMOLED
2. Diagonal length:1.3
3. Viewing Direction: ALL
4. Dot arrangement: 360*360
5. Voltage: VCI: 2.7~3.6V(3.3 Type), VDDIO: 1.65~3.3V(3.3 Type)
6. Operating Temperature: -20℃~60℃
7. Storage Temperature: -30℃~70℃
8. Drive IC: SH8601Z
9. Interface Type: QSPI
10. Luminance: 450 cd/m²(Min), 550 cd/m²(Type)
11: Module size: 35.34*36.84*0.69mm
Active area: 32.94*32.94mm
