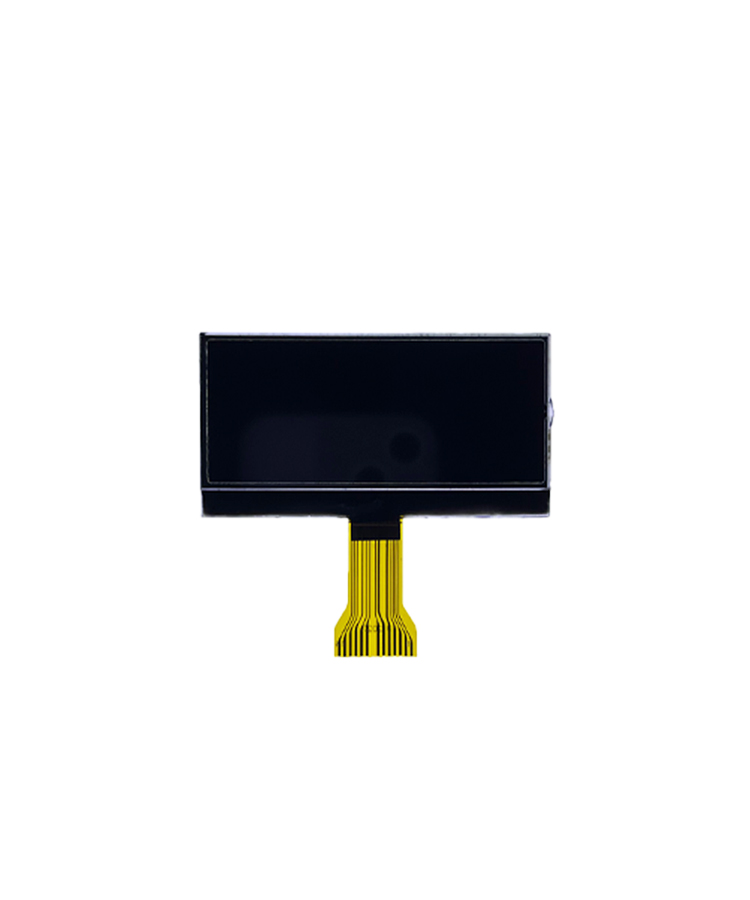

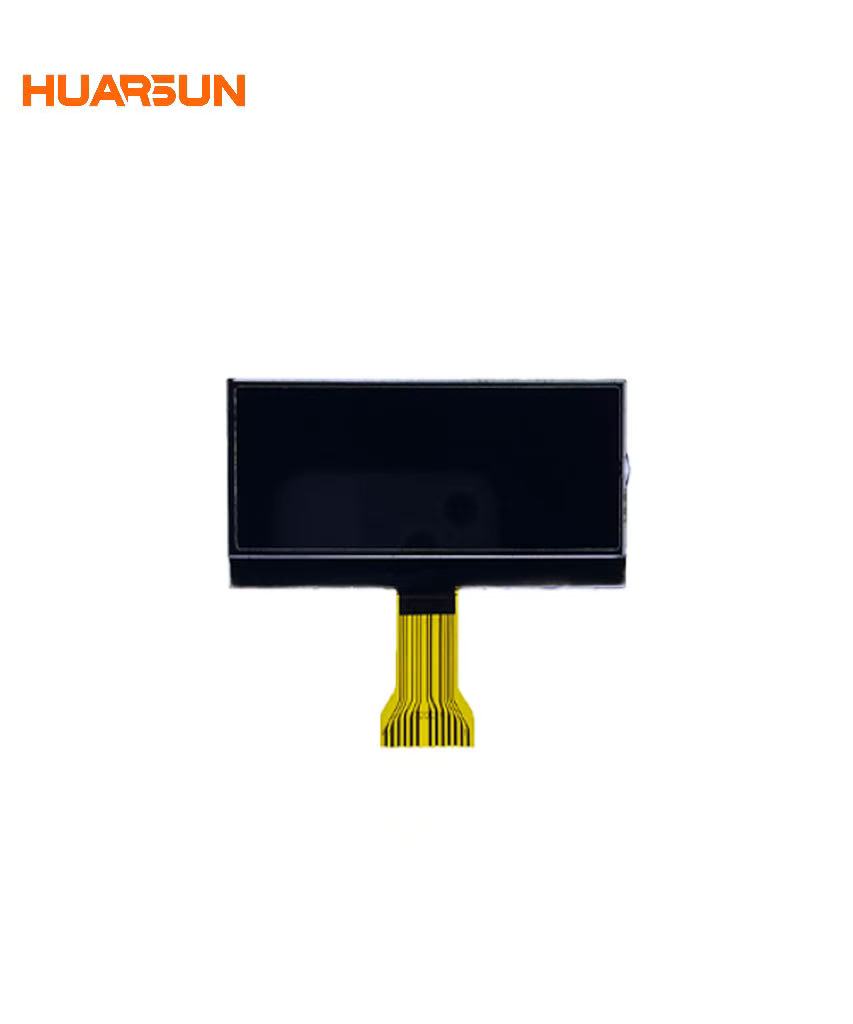

Monochrome LCD Display Screen Module Applied to Electric Bicycle
Monochrome LCD Display Screen Module Applied to Electric Bicycle
Monochrome LCD Display Screen Module Applied to Electric Bicycle

Monochrome LCD Display Screen Module Applied to Electric Bicycle

Display Type:VA/NEGATIVE Structure:LCM Operating Voltage:VDD:5.0V,Vlcd:5.0V Operating Temperature:-20℃ ~70℃ Storage Temperature:-30℃ ~80℃ Drive Mode:1/4D,1/3B Viewing Direction:6:00 Polarizer Type:TRANSMISSIVE Connector:COG/RW1026G Module Size:68
HEM customized monochrome segment code screen lcm applied to motorcycle
Display Type:VA/NEGATIVE
Structure:LCM
Operating Voltage:VDD:5.0V,Vlcd:5.0V
Operating Temperature:-20℃ ~70℃
Storage Temperature:-30℃ ~80℃
Drive Mode:1/4D,1/3B
Viewing Direction:6:00
Polarizer Type:TRANSMISSIVE
Connector:COG/RW1026G
Module Size:68.00*25.00*5.30
Viewing Area:60.00*25.00

Email:cenni@hemlcd.com

Product Details




HEM Monochrome LCD Display Screen Module Applied to Electric Bicycle

Display Type VA/NEGATIVE
Structure LCM
Operating Voltage VDD:5.0V,Vlcd:5.0V
Operating Temperature -20℃ ~70℃
Storage Temperature -30℃ ~80℃
Drive Mode 1/4D,1/3B
Viewing Direction 6:00
Polarizer Type TRANSMISSIVE
Connector COG/RW1026G
Module Size 68.00*25.00*5.30
Viewing Area 60.00*25.00








Product Application

We has been focused on customized TN/STN/FSTN/VA monochorome displays.
monochrome products' application:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

The application of AMOLED products:intelligent wearing,  children's education
The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.



Manufacturing Capacity

We now have two complete monochrome LCD production lines, a dozen of fully automatic COG production line and the full processing capacity for COB and CTP full lamination.With a professional R&D team, Well-developed quality control system, highly effective execution and management team and a pro-innovation corporate culture. We vow to satisfy our customers by meeting the quantity and quality requirements.

LCD:2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M
COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M
COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M
Team:800people in total, 60technicians,80 people in quality department.



Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system



MES Quality Process Flowchart






The Honor of Enterprise



Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead

Huaersheng  invested 160 mu display industrial park in 2022,which has the floorage of  12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ

1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
