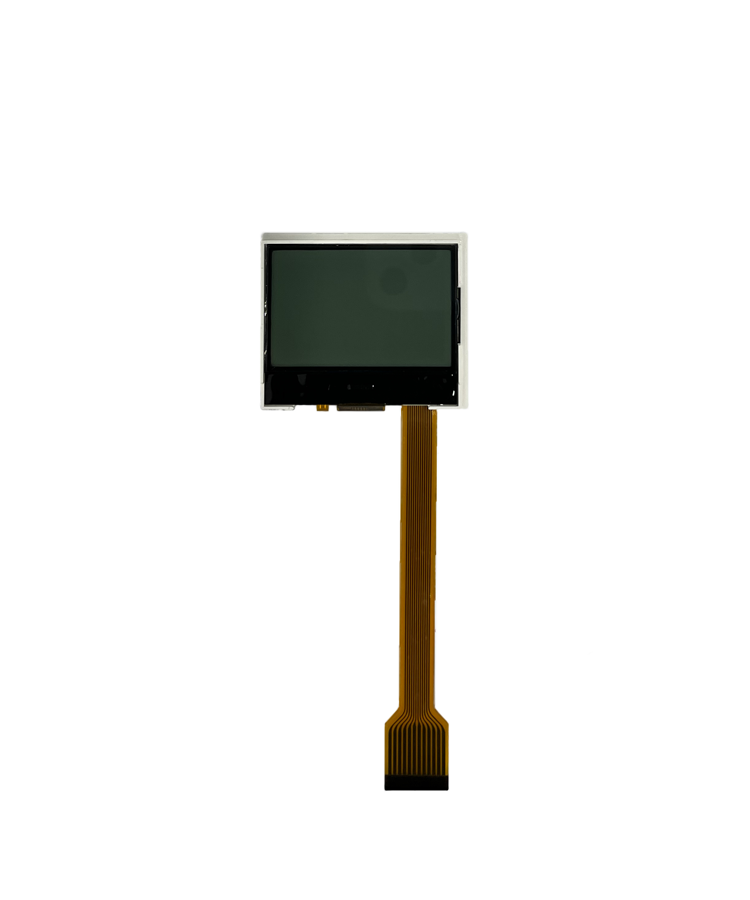

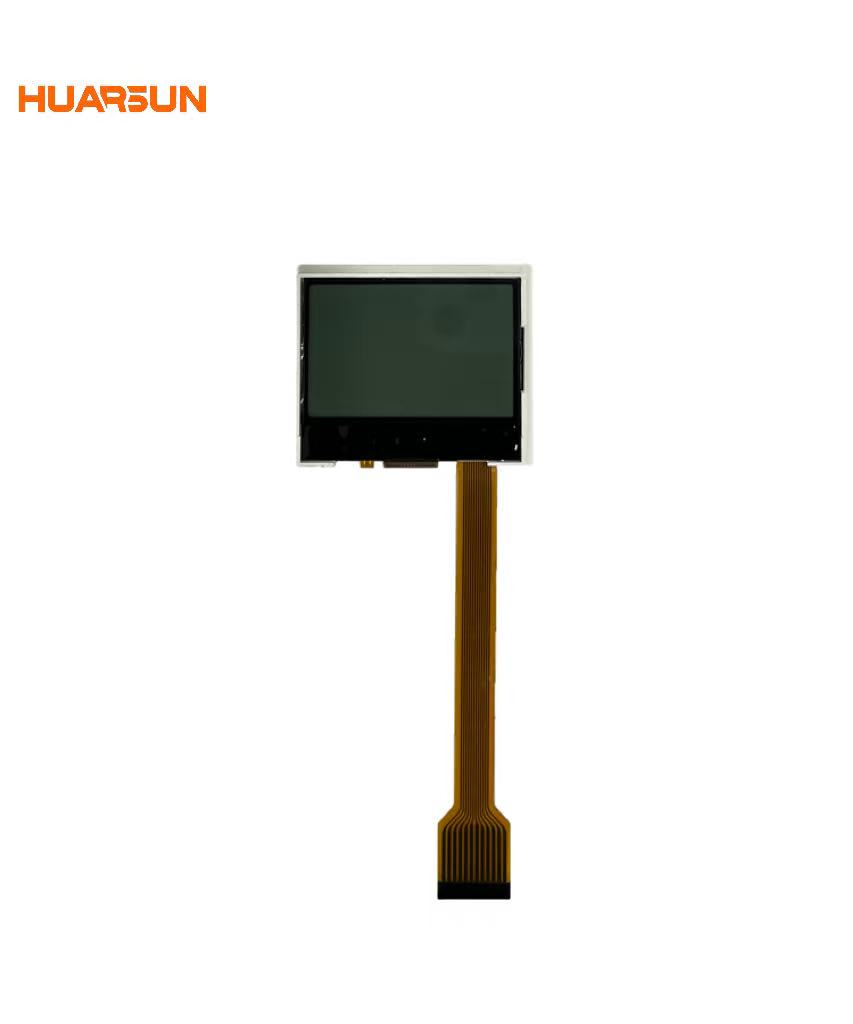

96*64 Dot matrix LCD Display Module Customized Monochrome Applied To Industrial Control Equipment
96*64 Dot matrix LCD Display Module Customized Monochrome Applied To Industrial Control Equipment
96*64 Dot matrix LCD Display Module Customized Monochrome Applied To Industrial Control Equipment

96*64 Dot matrix LCD Display Module Customized Monochrome Applied To Industrial Control Equipment

102*64 customized Mono LCD display-Industrial control equipment Display Type:FSTN/POSITIVE Structure:FOG Resolution:96*64 Operating Voltage:VDD: 3.3V VOP:8.6V Operating Temperature:-20℃~70℃ Storage Temperature:-40℃~85℃ Drive Mode:1/65D,1/9B Viewin
Display Type:FSTN/POSITIVE
Structure:FOG
Resolution:96*64
Operating Voltage:VDD: 3.3V VOP:8.6V
Operating Temperature:-20℃~70℃
Storage Temperature:-40℃~85℃
Drive Mode:1/65D,1/9B
Viewing Direction:6:00
Polarizer Type:TRANSMISSIVE
Connector:COG/ST7567
Module Size:39.40*32.90*2.00
View Area:36.40*23.30

Email:cenni@hemlcd.com

Product Details



102*64 96*64 Dot matrix LCD Display Module Customized Monochrome Applied To Industrial Control Equipment

Display Type FSTN/POSITIVE
Structure FOG
Resolution 96*64
Operating Voltage VDD: 3.3V VOP:8.6V
Operating Temperature -20℃~70℃
Storage Temperature -40℃~85℃
Drive Mode 1/65D,1/9B
Viewing Direction 6:00
Polarizer Type TRANSMISSIVE
Connector COG/ST7567
Module Size 39.40*32.90*2.00
View Area 36.40*23.30






Product Application

MONO products' application:industrial control, home intelligent control,onboard instrument,official screen, mobile payment etc. personalizing custom in product family design according to custom's needs.

The application of AMOLED products:intelligent wearing,  children's education

The application of TFT products:intelligent wearing,  children's education,  smart home,  industrial control medical  treatment,  mobile payment etc.




Manufacturing Capacity

LCD :2production lines 、370mm*470mm panel、production  capacity  60K/Mark/M

COG: 13 all-automatic production lines、0.5'' -8”modules、production  capacity 5KK/M

COF:2 all-automatic production lines、 0.7”-7”modules、production  capacity 500K/M

Team:800people in total, 60technicians,80 people in quality department




Quality Assurance

Reliability Test Equipment:  17 / Quality Inspection  Equipment: 230 / Quality Assurance System: MES system,  ERP system









The Honor of Enterprise






Location




Shenzhen Operation Center


Jiangxi Manufacturing Center


Looking ahead

Huaersheng  invested 160 mu display industrial park in 2022,which has the floorage of  12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.




FAQ

1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
