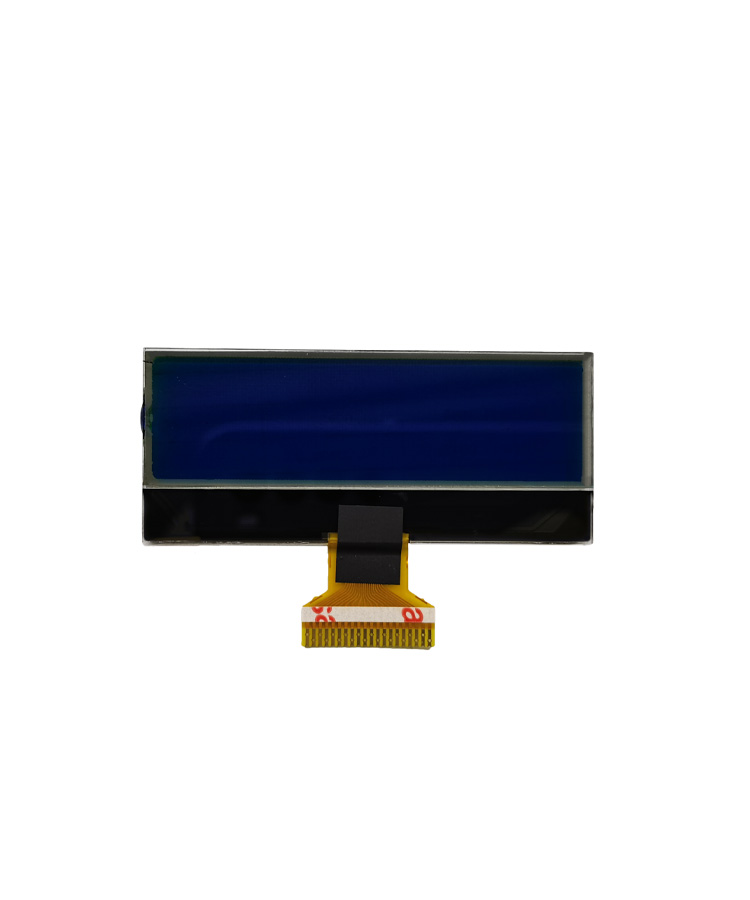

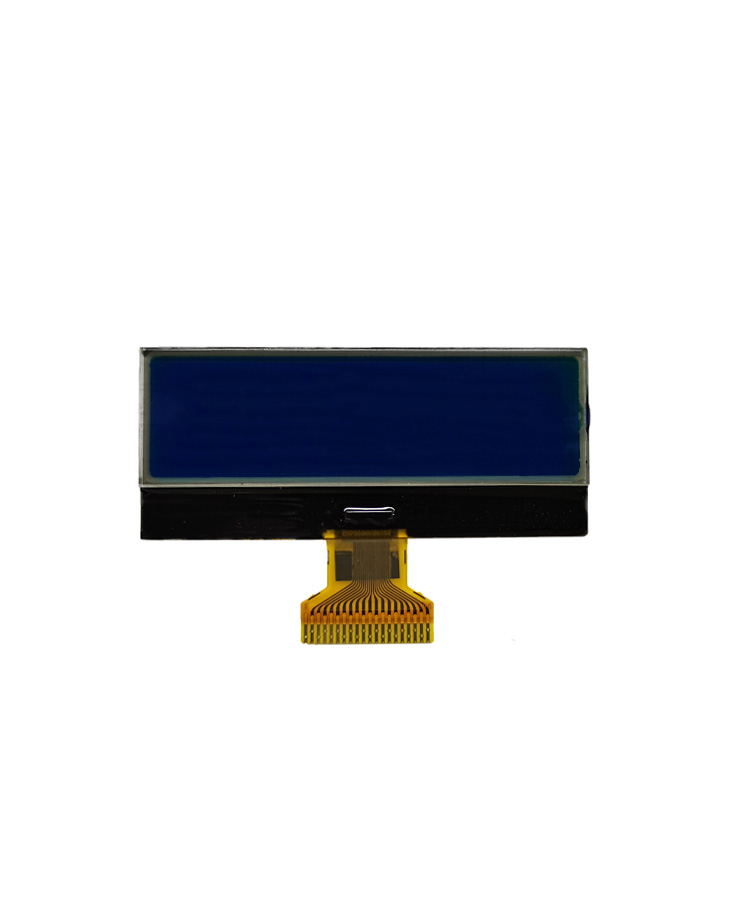

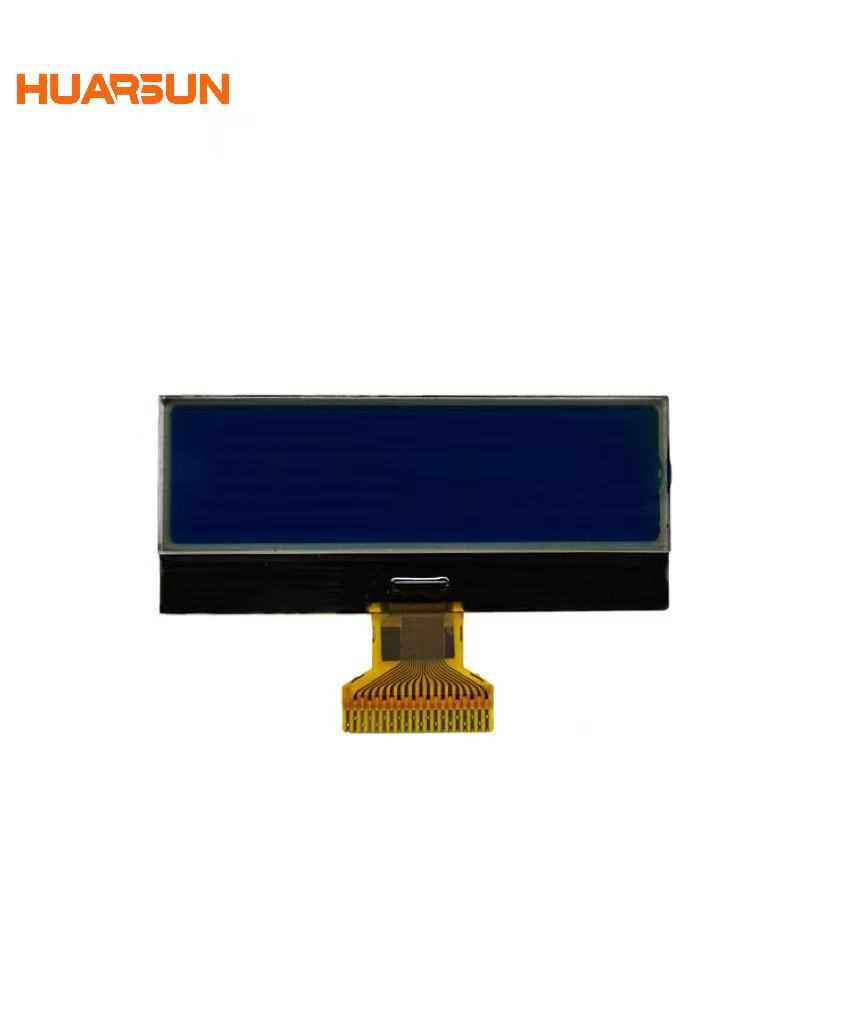

128*32 Custom LCD Display Monochrome Screen Used In Sports Equipment
128*32 Custom LCD Display Monochrome Screen Used In Sports Equipment
128*32 Custom LCD Display Monochrome Screen Used In Sports Equipment
128*32 Custom LCD Display Monochrome Screen Used In Sports Equipment

128*32 Custom LCD Display Monochrome Screen Used In Sports Equipment

Display Type:STN/BLUE/NEGATIVE Resolution:128*32 Operating Voltage:VDD=3V,Vlcd=8.5V Operating Temperature:-20℃ ~70℃ Storage Temperature:-30℃ ~80℃ Drive Mode:1/33D,1/6B Viewing Direction:6:00 Polarizer Type:TRANSMISSIVE Connector:COG/ST7565R Modul
Display Type:STN/BLUE/NEGATIVE
Resolution:128*32
Operating Voltage:VDD=3V,Vlcd=8.5V
Operating Temperature:-20℃ ~70℃
Storage Temperature:-30℃ ~80℃
Drive Mode:1/33D,1/6B
Viewing Direction:6:00
Polarizer Type:TRANSMISSIVE
Connector:COG/ST7565R
Module Size:56.00*24.00*2.85
Active Area:49.89*14.50
Interface Type:4SPI
Connection Mode:Welding

Email:cenni@hemlcd.com

Product Details



HEM 128*32 Custom LCD Display Monochrome Screen Used In Sports Equipment

Display Type STN/BLUE/NEGATIVE
Resolution 128*32
Operating Voltage VDD=3V,Vlcd=8.5V
Operating Temperature -20℃ ~70℃
Storage Temperature -30℃ ~80℃
Drive Mode 1/33D,1/6B
Viewing Direction 6:00
Polarizer Type TRANSMISSIVE
Connector COG/ST7565R
Module Size 56.00*24.00*2.85
Active Area 49.89*14.50
Interface Type 4SPI
Connection Mode Welding








Quality Assurance

Reliability Test Equipment:  17
Quality Inspection  Equipment: 230
Quality Assurance System: MES system,  ERP system



MES Quality Process Flowchart

quailty process lcd module






The Honor of Enterprise

Intelligent Display  Terminal Supplier

Thanks to our approach to seek innovation driven development, HEM has been pushing the frontier of the industry. We have earned honourary titles and certificates, such as ISO ISO9001 quality management certification, ISO14001 environment management certification, Director of Shenzhen Smart Wearable Device Industry Association, Member of National Medical Device Industry Association and National Hi-tech Company.






Location






Shenzhen Operation Center




Jiangxi Manufacturing Center

Jiangxi HEM Technology Co.Ltd.was incorporated in 2016 and finds its headquarters in Wanzai  of Jiangxi Province.




Looking ahead

Huaersheng  invested 160 mu display industrial park in 2022,which has the floorage of  12000 square matres. Park planning: 2 panel production lines of 370mm*470mm, 6full-automatic AMOLED production lines,30 COG  full-automatic AMOLED production lines.






FAQ

1.What kinds of display does HEM have?

 HEM is specializing in manufacturing TFT LCD display, Monochrome LCD display,Touch Screen, customized LCD panel, COB and COG display.

 2.How can I find the right product?

Please send us your requirements or datasheet, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

3. Do you accept sample order or small quantity order?

Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

 4.What’s the lead time?

 Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and particular product).

5.What’s your order process?

evaluating the project and give quotation→confirming with the customers→customers 100% pay the tooling fee and samples cost in advance→we arrange the drawings for customer in three woking days after received the payment→customers confirm the drawings→we arrange the production of samples in two or three weeks after the customers confirm the drawings are okay→send the sample to the customers for testing→modify the design according to the customer's opinion and send the sample again until the customer is satisfied→customer 30% payment in advance→batch production
